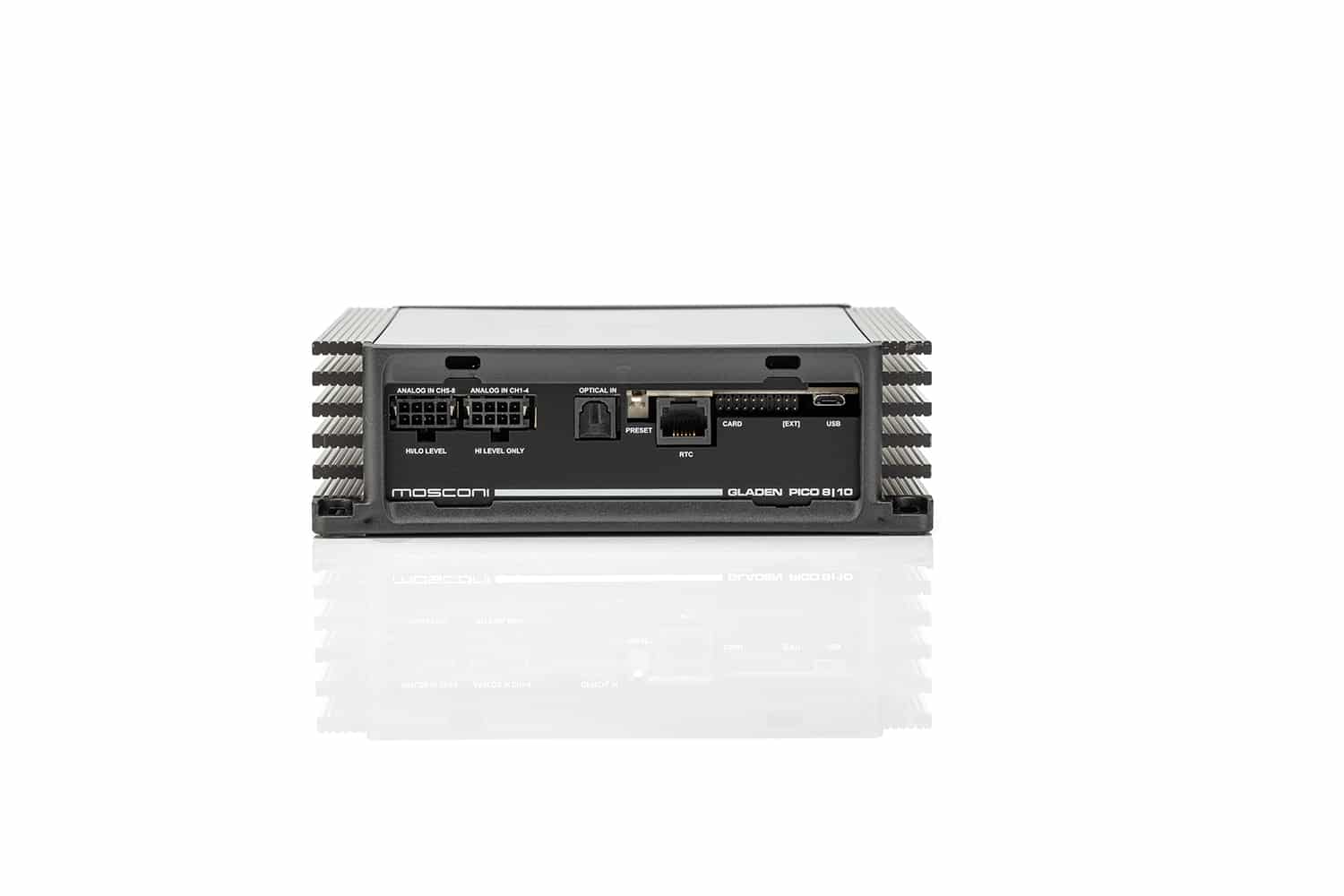

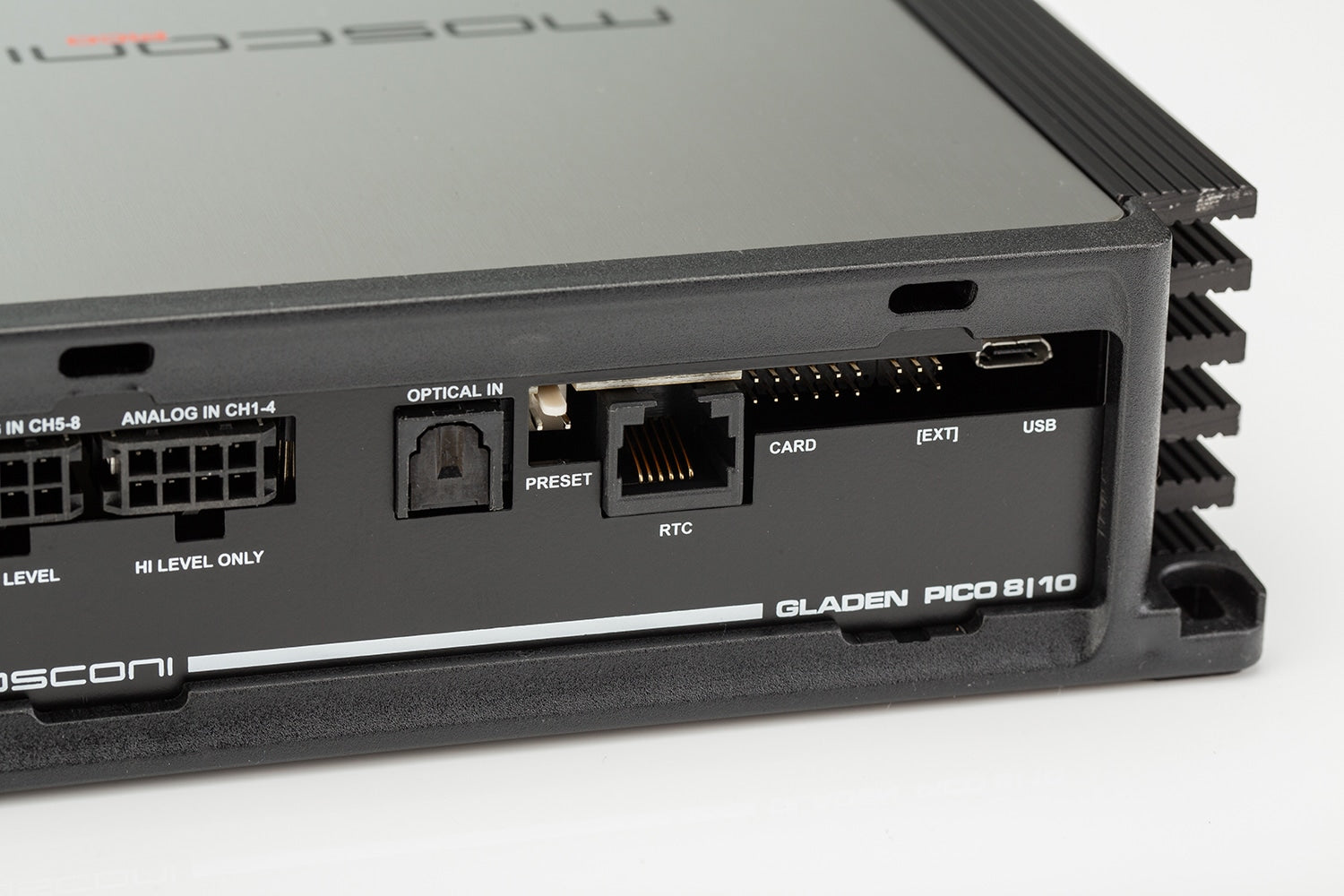

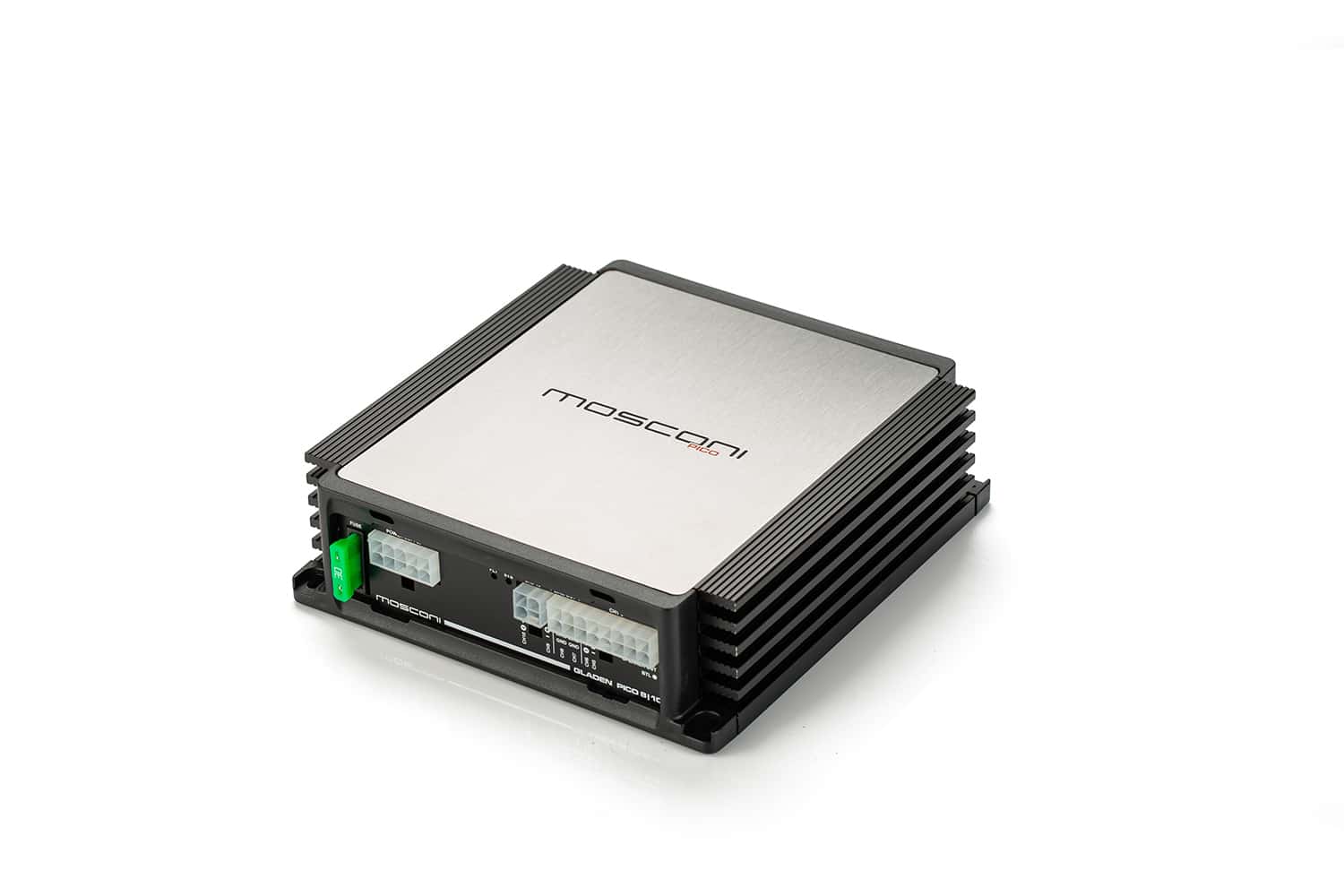

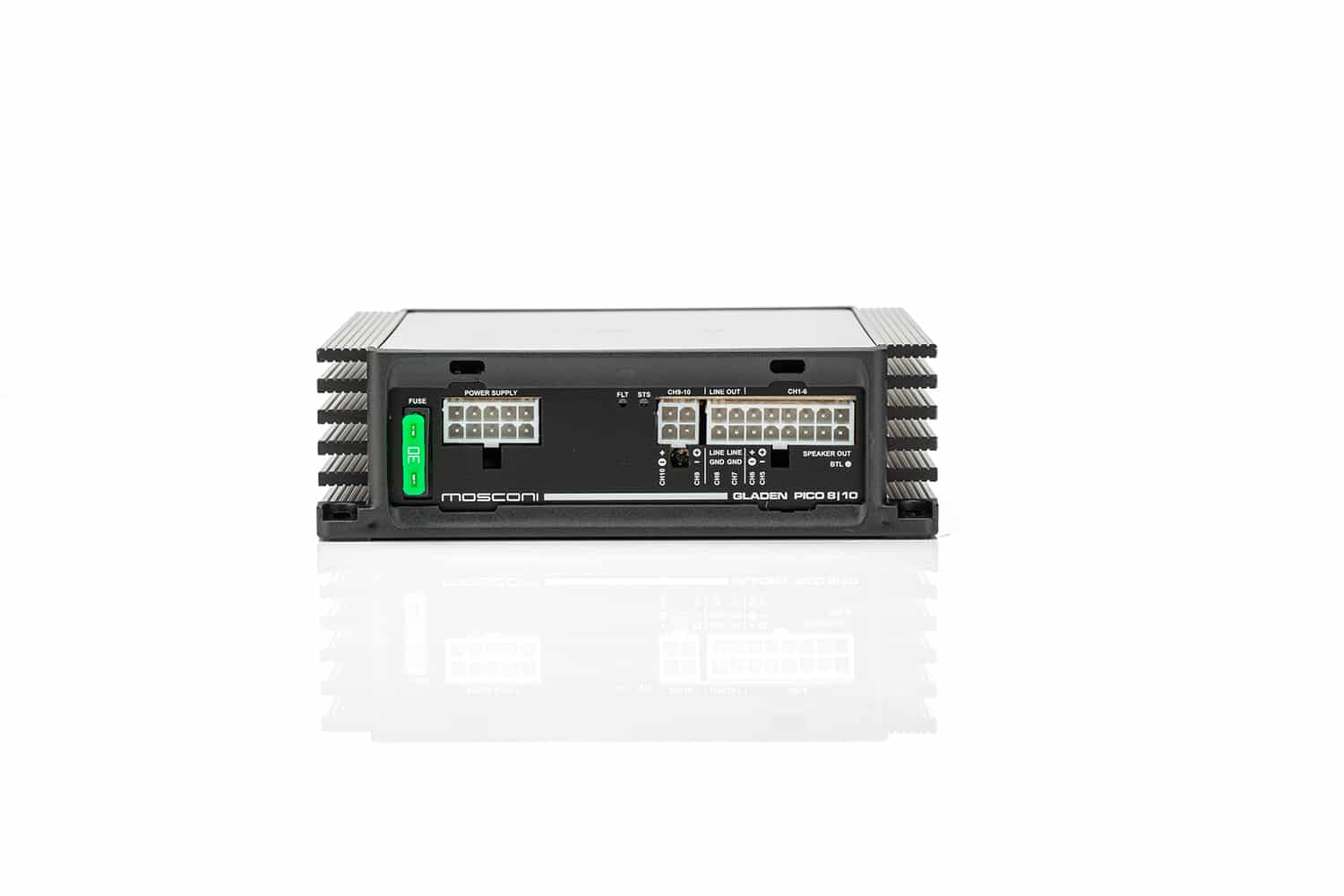

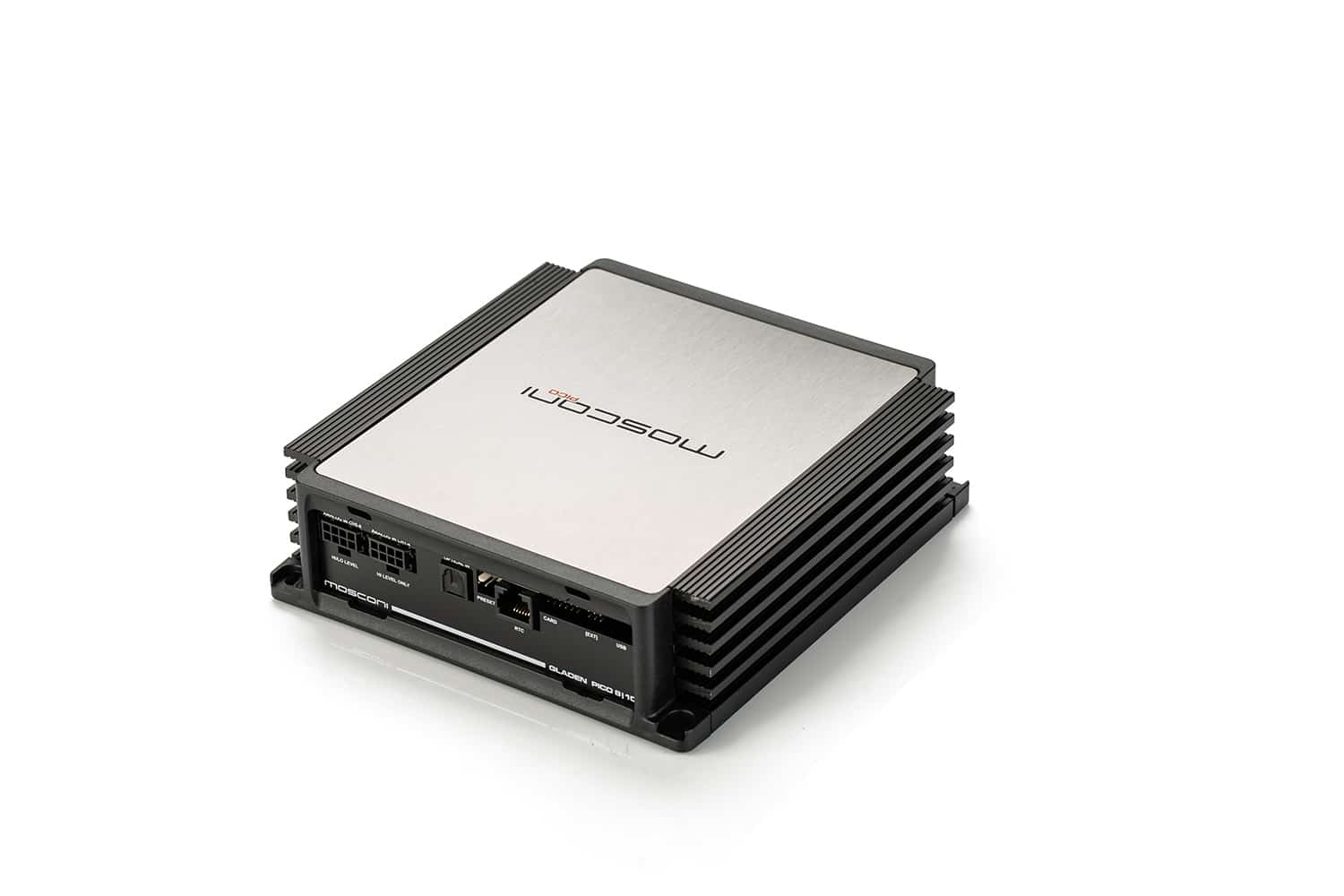

MOSCONI Pico 8 | 10 (8-Channel Amplifier, 10-Channel DSP)

Features

Powerful DSP amplifier optimized for factory radio use. Six analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 Watts + 4 x 90 Watts ideal for active and semi-active systems, as well as classic front + rear + sub application. With two digital inputs (SP-Dif and BT+) and two processed line outs ready for the future.

Transducerless High Speed PWM Amplifiers:

High efficiency PWM output stages with the fastest carrier frequency in the world today (> 2 MHz), enables HiRes audio transmission and the extremely small size. The modulation is done without DAC directly from the 96 kHz TDM signal of the DSP, thus the noise floor is close to zero and THD + N ~ 0.02 % / 1 W.

The Pico 1 is also available as an 18 Volt version. This is specially adapted to the electrical system of the latest Tesla models.

• 8 channel amplifier
• Class D technology
• Integrated 10 channel DSP
• Up to 600 Watts total power
• 12V and 18V Version
• Tesla Model 3/Y ready (18V)
