Lumens Ultra LED Bulb Conversion (Single) Reflector Lense Application

Lumens Ultra LED Bulb Conversion (Single) Reflector Lense Application

Regular price $70.00 CAD
Regular price $75.00 CAD Sale price $70.00 CAD
Sale Sold out
Features:
  • Next generation LED lights provide comparable light output to Xenon HID Conversions without the glare. More than twice the brightness of halogens.
  • Instantly on to full brightness without any warm up times.
  • Plug n' Play design eliminates the need for harnesses & larger resistors to be used during installs.
  • PCBBs allows maximum flexibility for installation.
  • One piece unibody core ensures maximum heat dissipation from LEDs to PCBBs.
  • Picture may differ from actual product

  • Design:

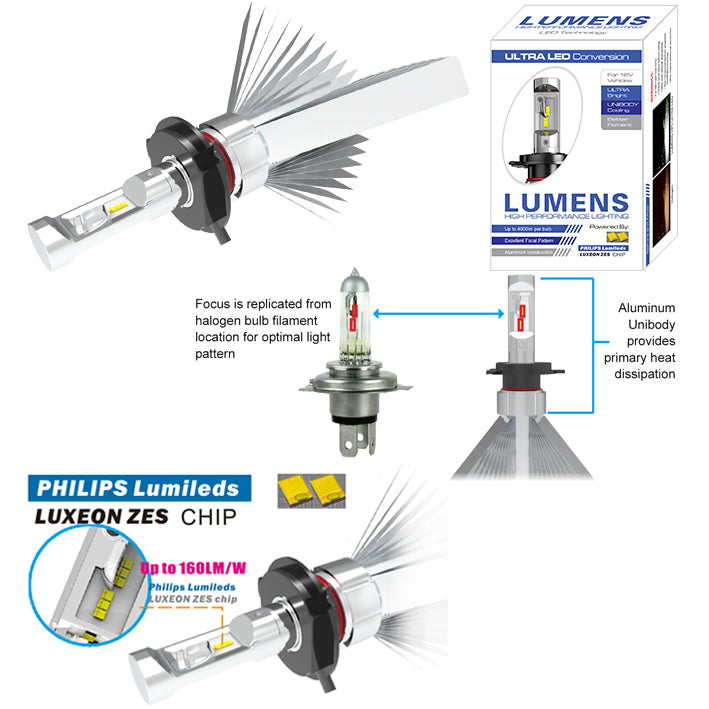

  • The alignment of LEDs replicate that of a halogen bulb to achieve optimal focal light pattern in a reflector housing
  • Using an unibody to conduct heat directly from the LEDs to the 6 PCBBs keeps LEDs cool for longer lifespan

  • Powered by Philips Lumileds ZES Chips:
  • Up to 4000lm per Bulb
  • Unparalled Color Consistency
  • Improved Flux Density
  • Micro footprint allows closer replication of halogen filament

  • Specifications:
  • LED Qty: 6 pc on single beam, 12 pc on dual beam bulbs
  • LED Power: 35W per bulb
  • Current: 2.8 ± 0.2A
  • Voltage: 6 - 18V
  • Raw Light Output: up to 4000lm / 5600lx
  • Working Temp: -40°C ~ +80°C
  • Body Material: 6063 Aluminum
  • Colour Temperature: 3000K Yellow

  • Smartboxes:
  • This is a plug and play accessory that is sold separately. This device is used to:
  • Turn off 'light out' warning indicators
  • Complete a series wiring circuit
  • Stop LEDs from flickering or turning on and off, due to the vehicle's computer thinking a light bulb is missing
  • Other CANBUS related issues caused from converting halogens to ULTRA LEDs
  • *** Will not increase voltage or current for daytime running lights under 6V

  • Contents:
  • 1 x LED Bulb
  • 1 x LED Driver
