JL Audio JD700/5 JD Series 5-channel car amplifier — 75 watts RMSx4 at 4 ohms + 300 watts RMSx1 at 2 ohms

THE AMP THAT DOES IT ALL

Power your entire system with this 5-channel system amplifier that combines a 4-channel full-range and monoblock subwoofer amplifier in one single, easy-to-install package. A generous feature set adds even more value.

• 12-DECIBEL/OCTAVE FILTER WITH SELECTABLE HIGH, LOW OR DEFEAT (OFF) MODES
• SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV to 8-VOLT RMS)
• 3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET
• ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING
• SIGNAL ROUTING FLEXIBILITY WITH 2-, 4- OR 6-CHANNEL INPUT MODE

Product info:

• 5-channel car amplifier
  • 75 watts RMS x 4 + 180 watts RMS x 1 at 4 ohms
  • 100 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
  • 200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms

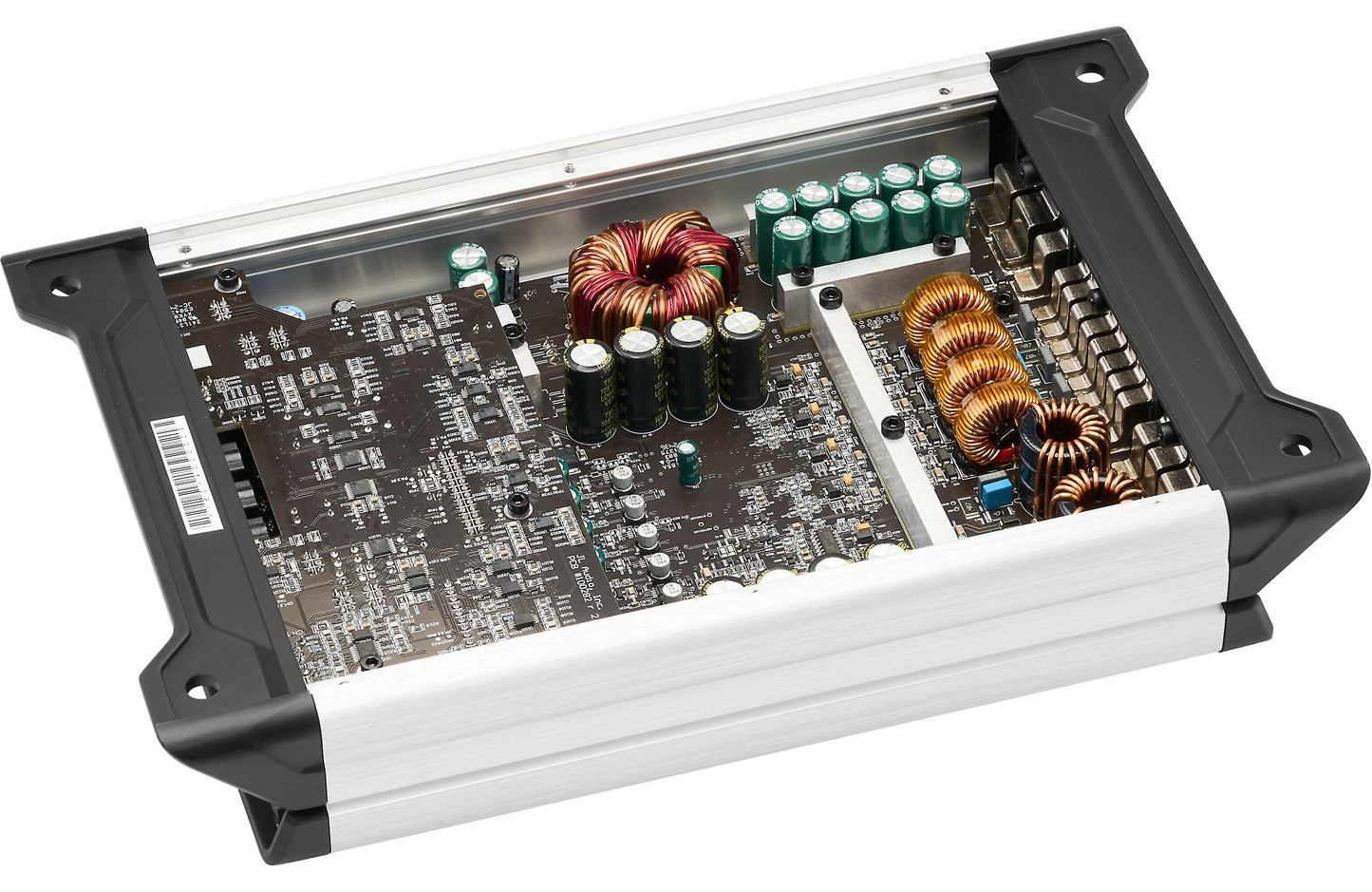

• Class D amp design with NexD™ switching technology
  • total frequency response: 10-22,000 Hz
• CH. 1&2: variable high-pass filter: 50-5000 Hz, 12 dB/octave
• CH. 3&4: variable high-, low-, or band-pass filter: 50-500 Hz, 12 dB/octave
• SUB CH: variable low-pass filter: 50-500 Hz, 12 dB/octave
  • variable bass boost: 0-12 dB at 45 Hz
  • optional RBC-1 wired remote bass control available
