Jensen JA5B - JA Series compact class-D 5-channel amp w/DSP

Features:

DSP Amp app (Apple®/Android™) to control illumination and system set-up via Bluetooth (App
required for system set-up), RGB Custom color illumination, Class D design, 2 & 4 Ohm stable, 5 Band EQ, Inputs: Low (RCA) level, Remote bass control (controlled by app),Gain adjustment: 300 mV ~ 6 V, Adjustable high-pass crossover: (32Hz -320Hz), Adjustable low-pass crossover: (32Hz -320Hz), Power terminal connector: 8 AWG, Speaker terminal connector: 12 AWG, Fuse size: 40 A x 2, Amplifier dimensions: 5.59" x 11.14" x 2.17" (DxWxH), Continuous Power Output (1% THD+N):  71 W x 4 at 1kHz plus 227 W x 1 at 50 Hz @ 4 ohms, 97 W x 4 at 1 kHz plus 381 W x 1 at 50 Hz @ 2 ohms, Dynamic Power Output (1% THD+N): 74 W x 4 at 1 kHz plus 233 W x 1 at 50 Hz @ 4 ohms, 101 W x 4 at 1 kHz plus 384 W x 1 at 50 Hz @ 2 ohms, Maximum Power Output (10% THD+N): 77 W x 4 at 1 kHz plus 238W x 1 at 1 kHz @ 4 ohms, 107 W x 4 at 1 kHz plus 391 W x 1 at 1 kHz @ 2 ohms, THD+N < 0.38% at 1 Watt RMS, 4 Ohms, from 20Hz to 20kHz, THD+N < 0.65% at 1 Watt RMS, 4 Ohms, from 20Hz to 300Hz, Frequency response: 20Hz - 20kHz (Channels 1-4), Signal to noise ratio 82.5 dBA (reference: 1

5-channel car amplifier

• 70 watts RMS x 4 + 225 watts RMS x 1 at 4 ohms
• 95 watts RMS x 4 + 380 watts RMS x 1 at 2 ohms
• 190 watts RMS x 2 bridged at 4 ohms + 380 watts RMS x 1 at 2 ohms
• CTA compliant
• Class D amp technology
• DSP adjustments on your phone or tablet via Bluetooth connection using Jensen DSP AMP app
  • input level/gain, low-pass/high-pass filters, bass boost at 45 Hz,
  • EQ presets: Classic, Pop, Rock, Jazz, Custom (user defined)
  • RGB color illumination control
  • does not support audio streaming or hands-free calling

More info:

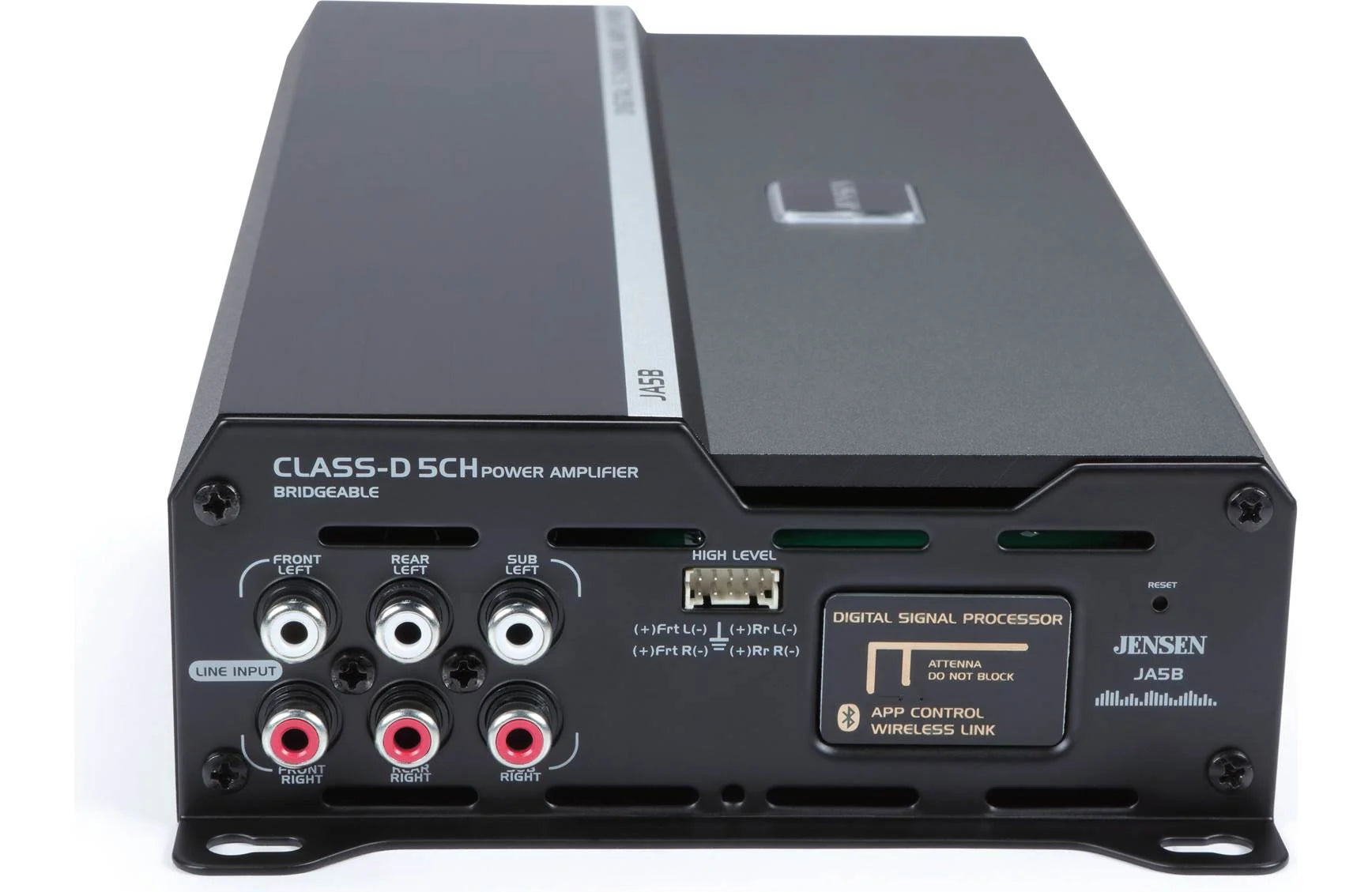

• preamp and speaker-level inputs
• wiring and hardware not included with amplifier

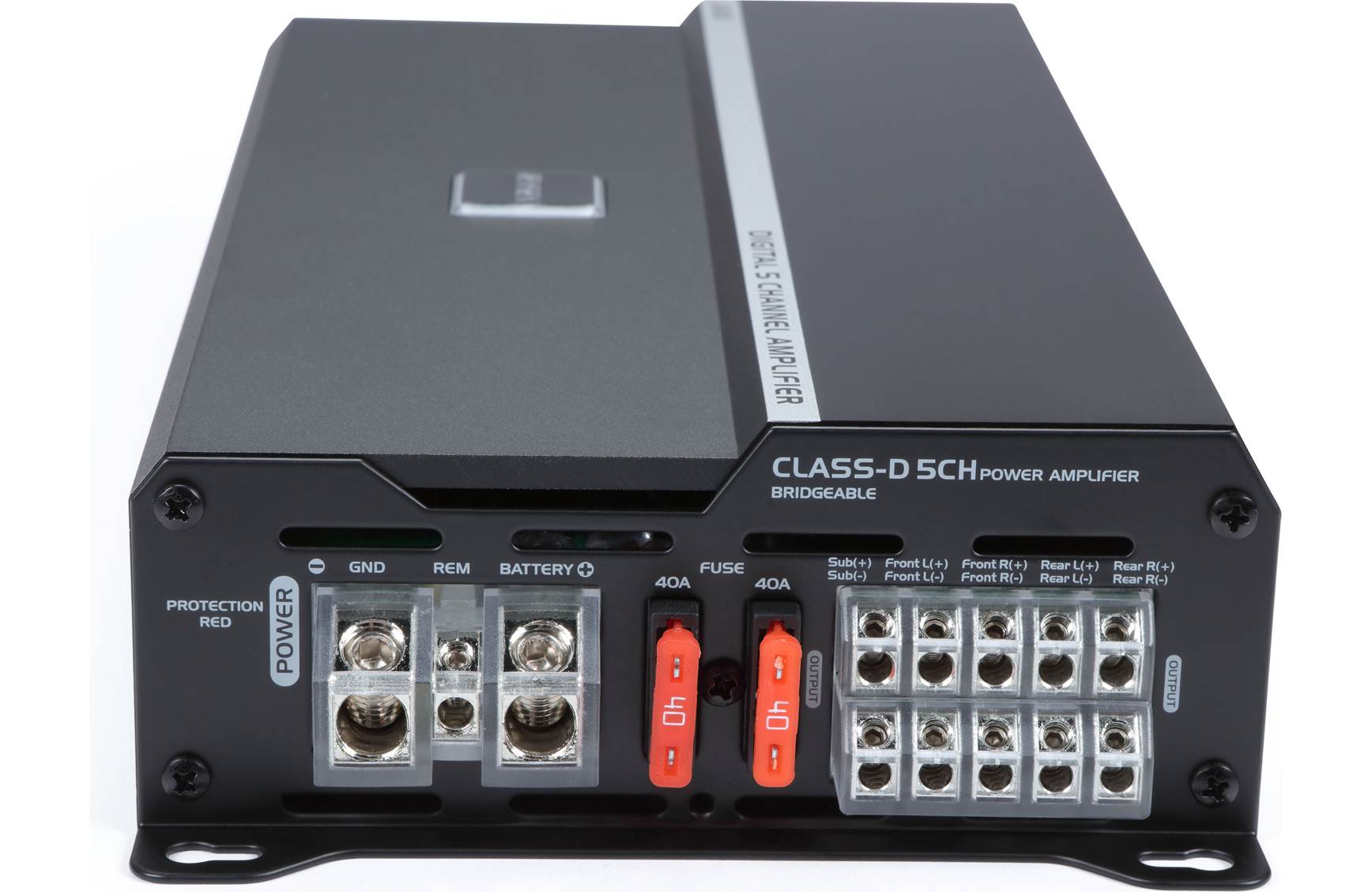

  • 8-gauge power and ground leads recommended
• fuse rating: 40A x 2
• 11.15"W x 2.2"H x 5.58"D
