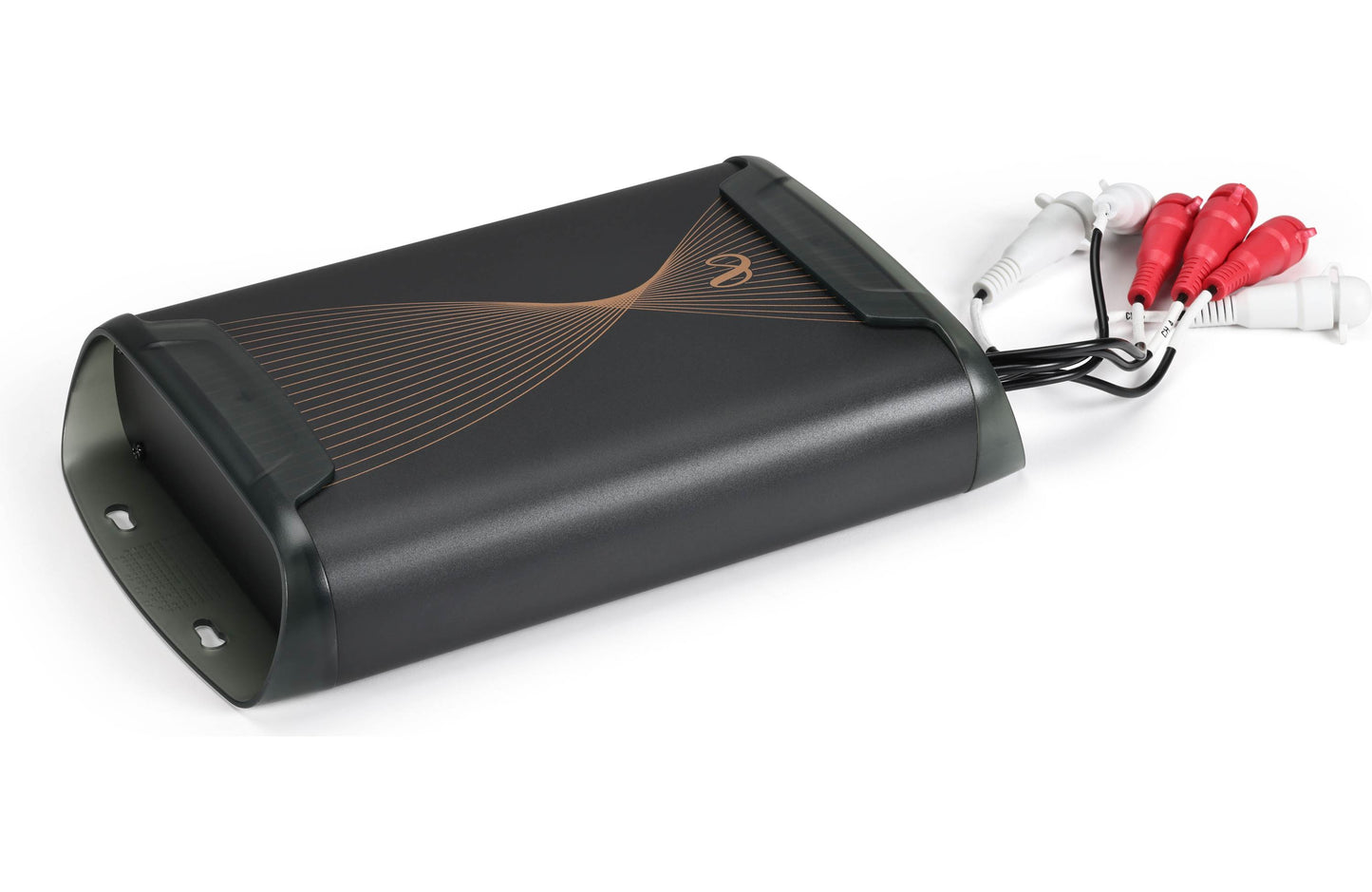

Infinity DSP6840AM 8-channel car amplifier with digital signal processing — 40 watts RMS x 8

Conformal coated PCB (marinized), Class D, DSP/amp, 60W x 8 @2Ω, 40w x8 @ 4Ω, variable x-overs h/l pass adjustable up to 48dB/oct slopes, GUI, 31 band parametric or graphic EQ, 12v/signal/DC offset turn on modes,10-22kHz@-3dB freq res, -30-+6dB sub control,

Product info:

• 8-channel car amplifier with digital signal processing
  • 40 watts RMS x 8 at 4 ohms
  • 60 watts RMS x 8 at 2 ohms
  • non-bridgeable
• Class D amp technology
  • frequency response: 10-22,000 Hz

Digital processing:

• DSP and EQ tuning tool adjustments made via USB connection to a Windows PC
  • save up to 10 presets
• 6 assignable preamp and speaker-level inputs
  • high-level input adapters included
• 31-band EQ (selectable parametric and graphic)
• adjustable high-, low-, and band-pass filters: 20-20,000 Hz
  • selectable filter slopes: 6, 12, 18, 24, 30, 36, 42, 48 dB/octave
• adjustable delay: 0 to 12ms in 0.2ms increments
• phase adjustment: 0/180°

Other Features:

• includes wired remote bass control for ch 7 & 8
• conformal coated PCB
• fuse rating: 40A x 1

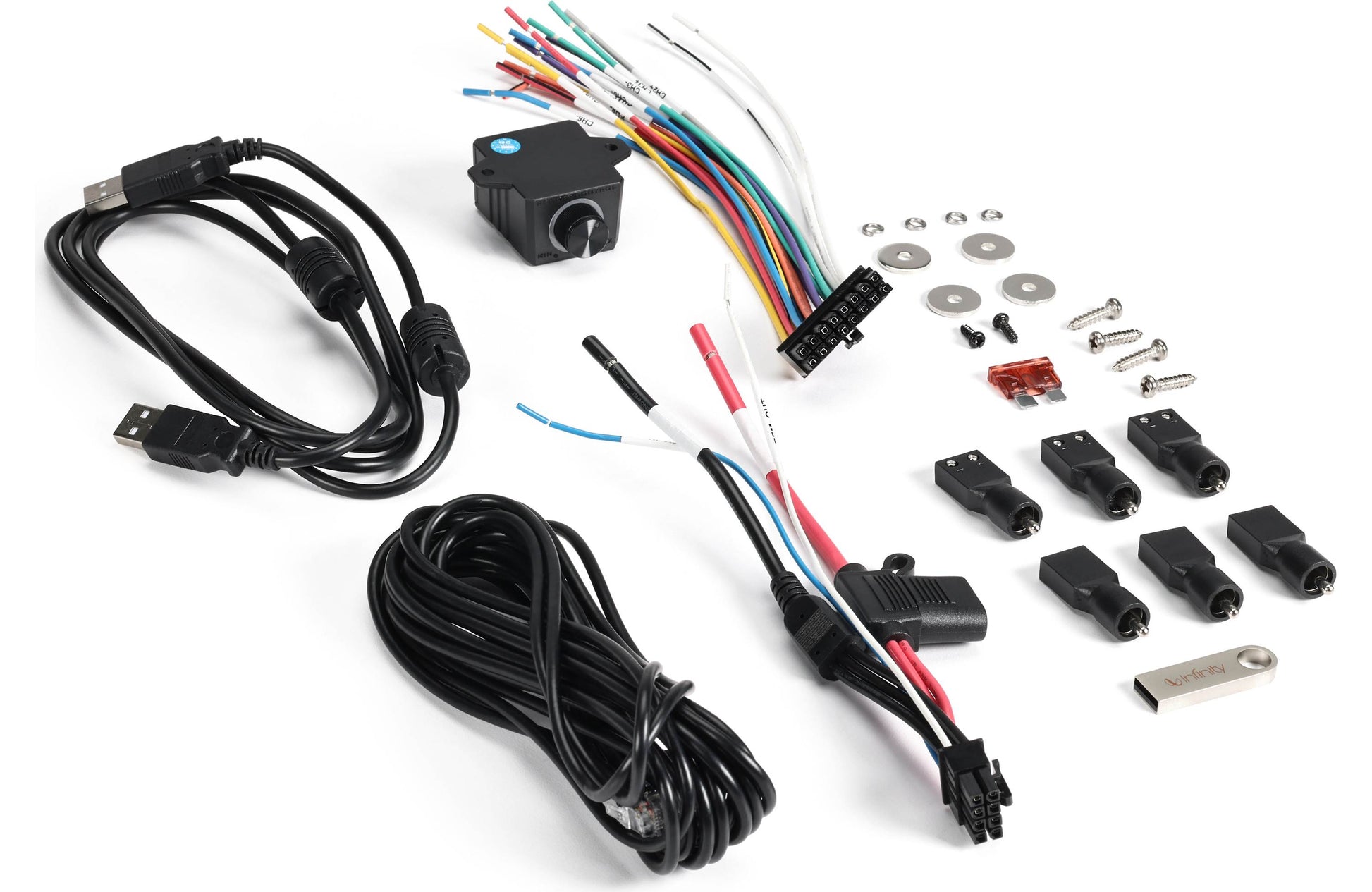

• wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
• dimensions: 5.67"W x 1.95"H x 9.35"D
• warranty: 1 year
• MFR # DSP6840AM
• Item # 108DSP6840
