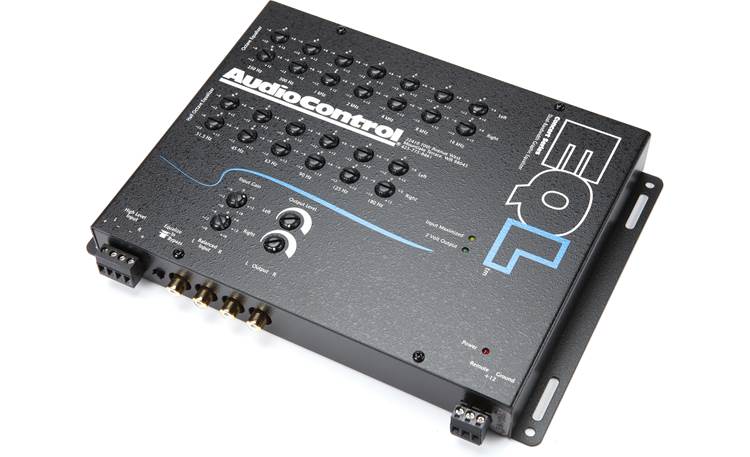

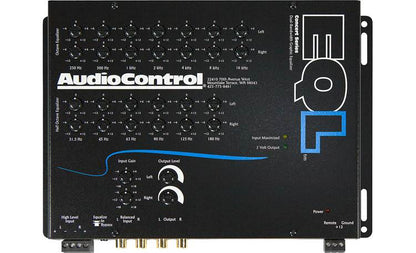

AudioControl EQL Trunk-mount 2-channel equalizer with level matching

AudioControl EQL Trunk-mount 2-channel equalizer with level matching

Product highlights:

  • stereo 13-band graphic equalizer
  • 6 bands 1/2-octave wide (bass)
    • center frequencies: 31.5, 45, 63, 90, 125, 180 Hz
  • 7 bands 1-octave wide (mids and highs)
    • center frequencies: 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
  • input gain and output level controls and LEDs help with system integration
  • 33 Hz subsonic filter (adjustable with optional module)
Other Features and Specs:
  • preamp inputs and outputs
  • speaker-level inputs
  • balanced inputs eliminate noise
  • frequency response: 10 to 20,000 Hz
  • signal-to-noise ratio: 110 dB
  • maximum output level: 9.5 volts RMS
  • fuse rating: 2A
  • dimensions: 9-7/8"W x 1-3/8"H x 8-1/8"D
  • warranty: 5 years
