Blackvue DR770X-BOXPRO-64 3-Channel Dash Cam, Modular, Hideaway Box, incl/1080P FRONT CAM, 64GB CARD
Blackvue DR770X-BOXPRO-64 3-Channel Dash Cam, Modular, Hideaway Box, incl/1080P FRONT CAM, 64GB CARD
Note: As a modular system, kit comes with 1 camera, expandable up to 3 cameras (sold separately) = 3-Channel.
Features Overview:

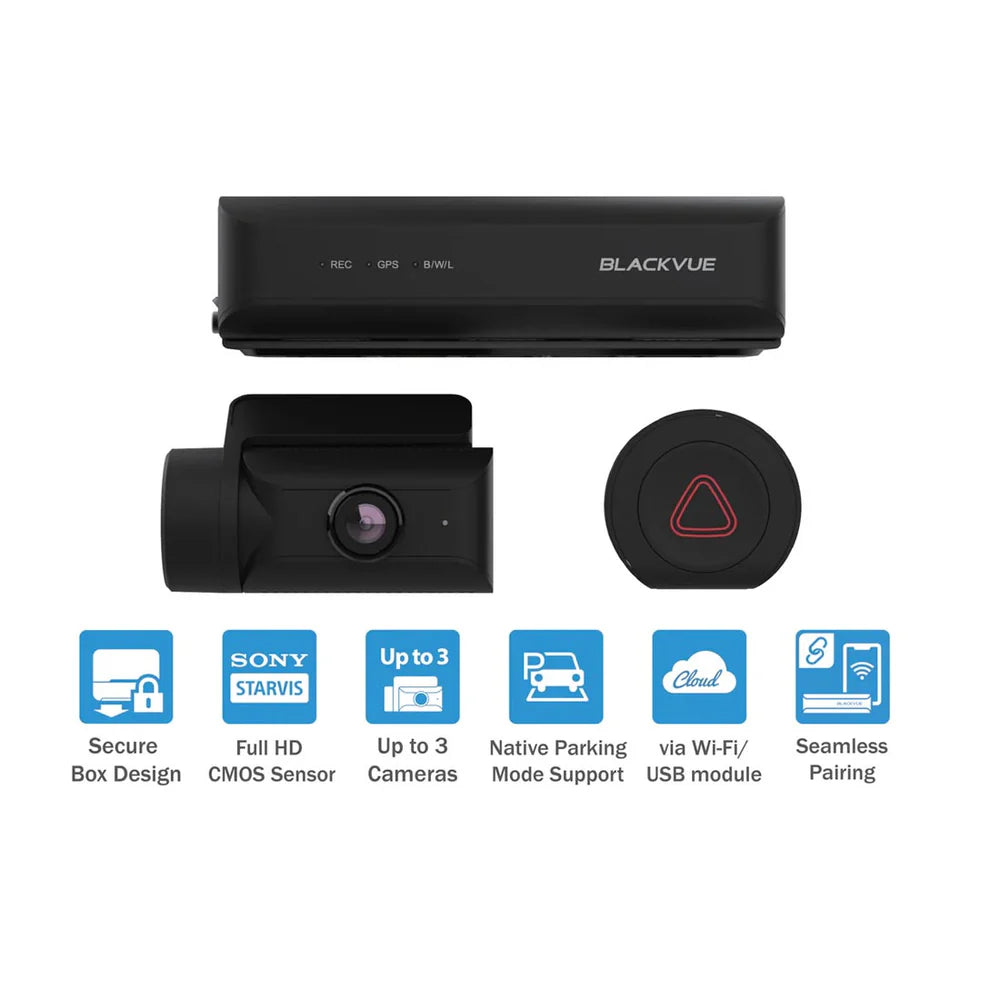

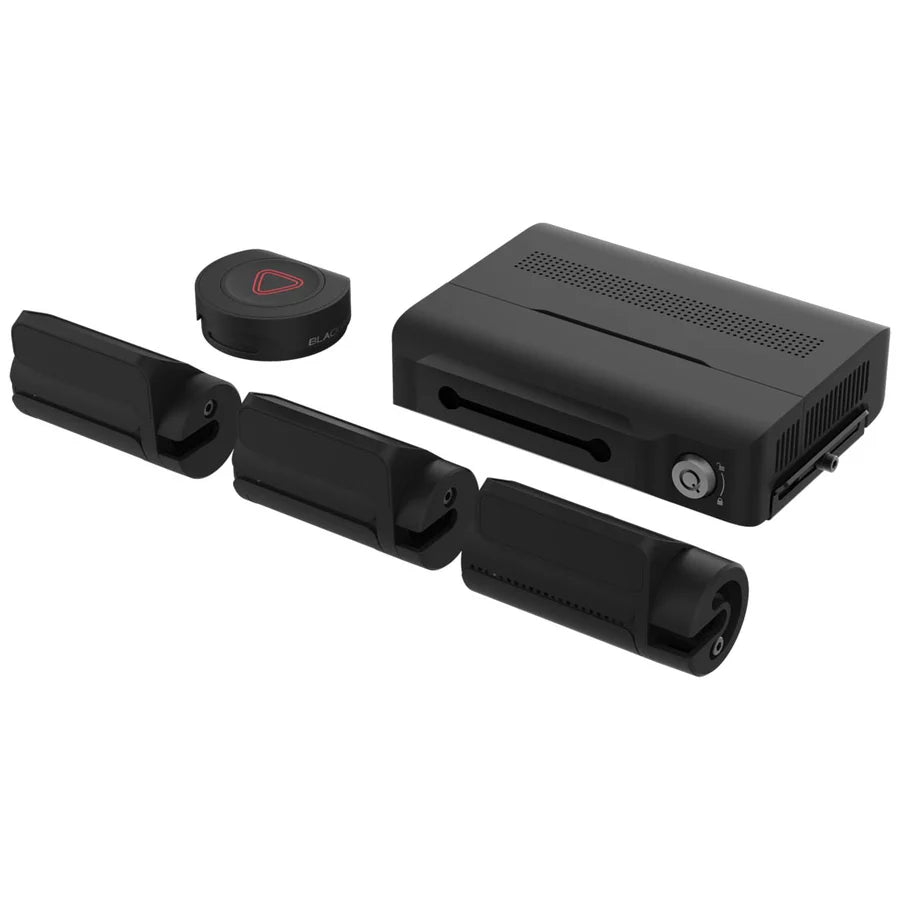

BlackVue DR770X-BOXPRO 3-Channel Customizable Dash Cam System with 1080P Front Cam & Hidden Box Unit
The BlackVue DR770X-BOXPRO brings together stealth, clarity, and next-level customization. Straight out of the box, you get a crisp 1080P Full HD front camera powered by a Sony STARVIS sensor—ideal for capturing every detail ahead. Its hidden box design keeps the main unit discreetly tucked away, offering a clean setup and added security.

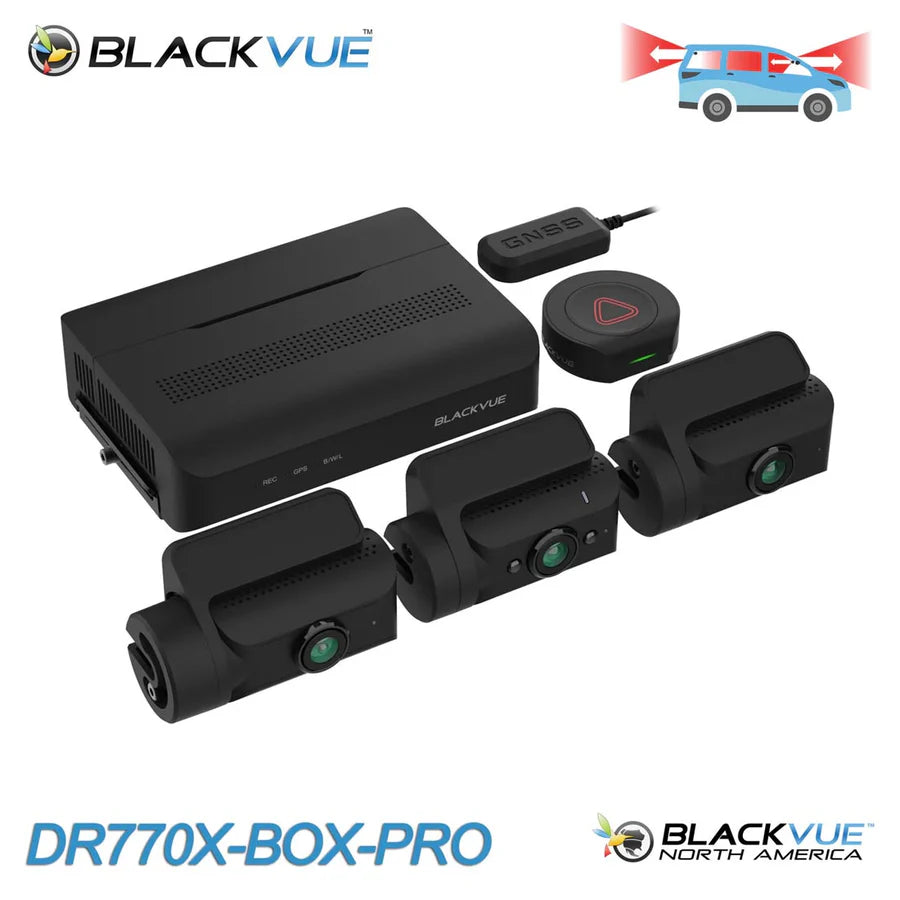

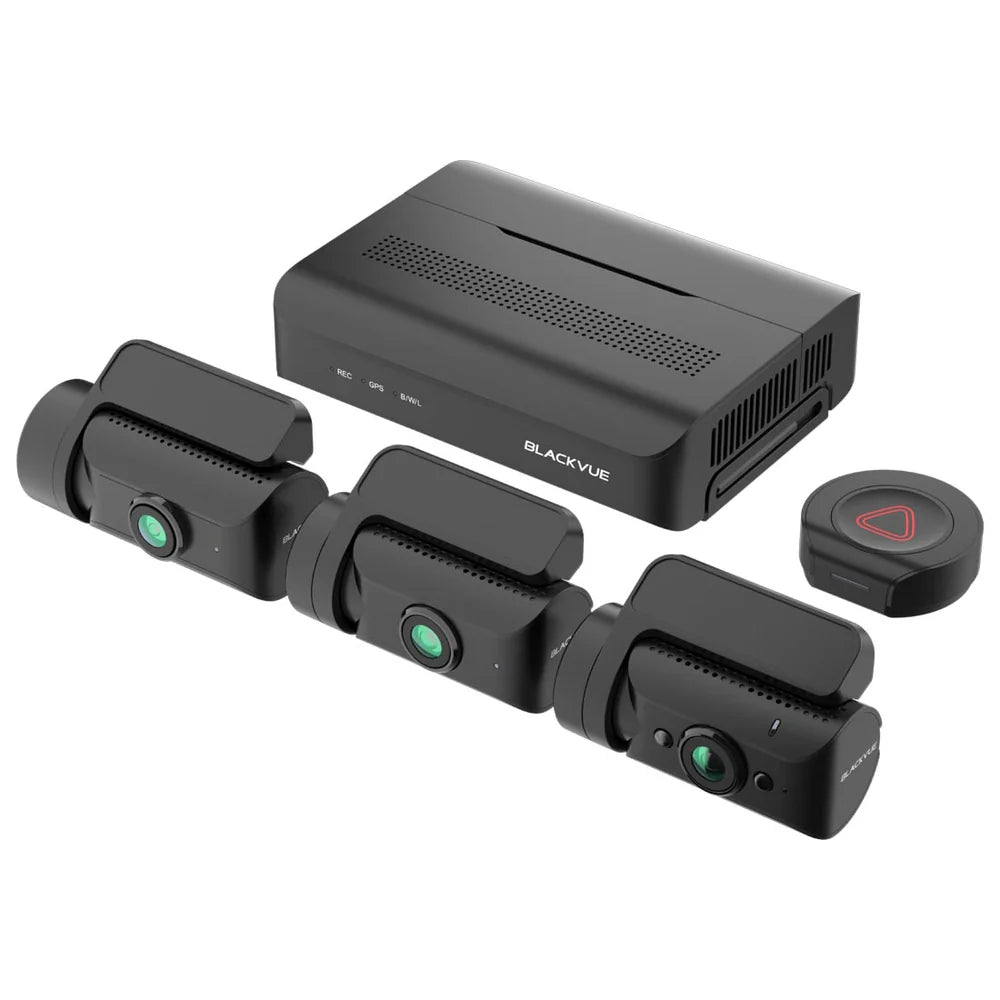

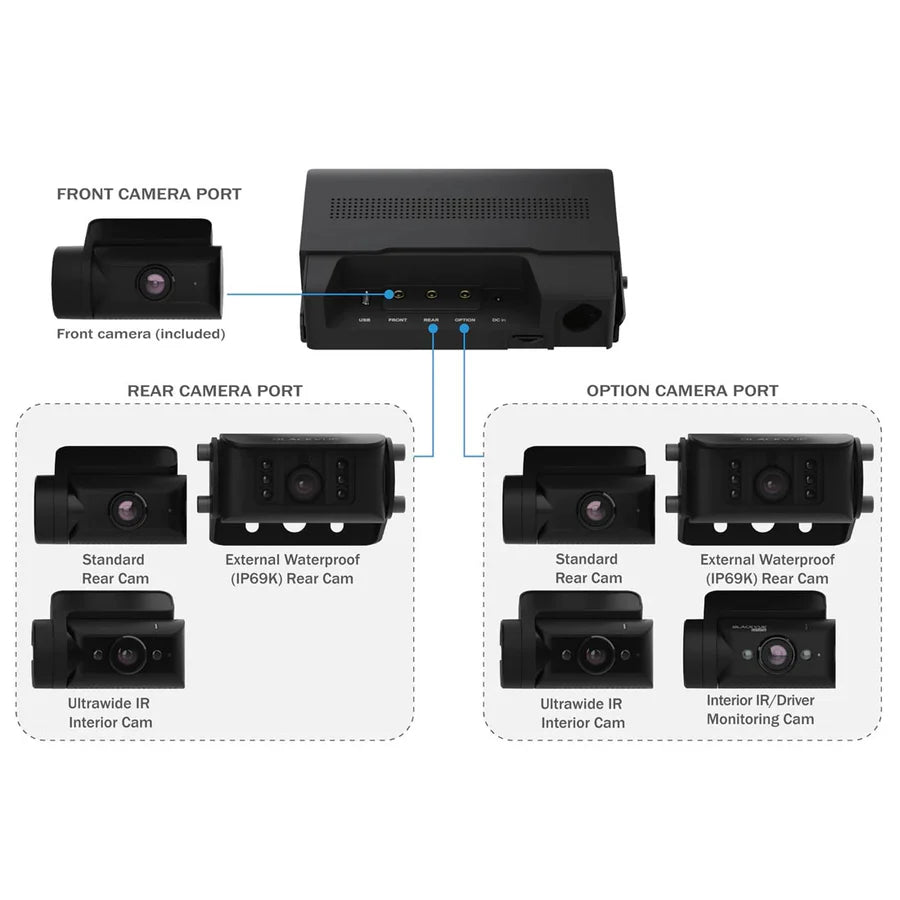

Fully Customizable 3-Channel System
Here’s the deal: this system starts as a one-camera setup with only the front camera included. But if you want full coverage, you can expand it with up to two additional cameras. Choose from:
- Interior IR camera for night cabin monitoring (RC1-IR-C)
- Standard rear camera for rear-traffic recording (RC1-C)
- Exterior waterproof camera built tough for trucks or harsh weather (ERC1-C)
All optional cameras are sold separately, so you can build your ideal surveillance system at your pace and to fit your needs.
Two SD Card Options + Massive Storage Potential
Whether you’re looking for basic coverage or extended recording, the BlackVue DR770X-BOXPRO gives you two SD card options out of the box: 64GB or 256GB. Need more? No problem—it supports microSD cards up to 512GB. That means you can store hours of footage in high resolution without constantly managing your storage.
Just remember, to get the best performance and avoid file corruption, it’s recommended to use BlackVue-branded SD cards only.

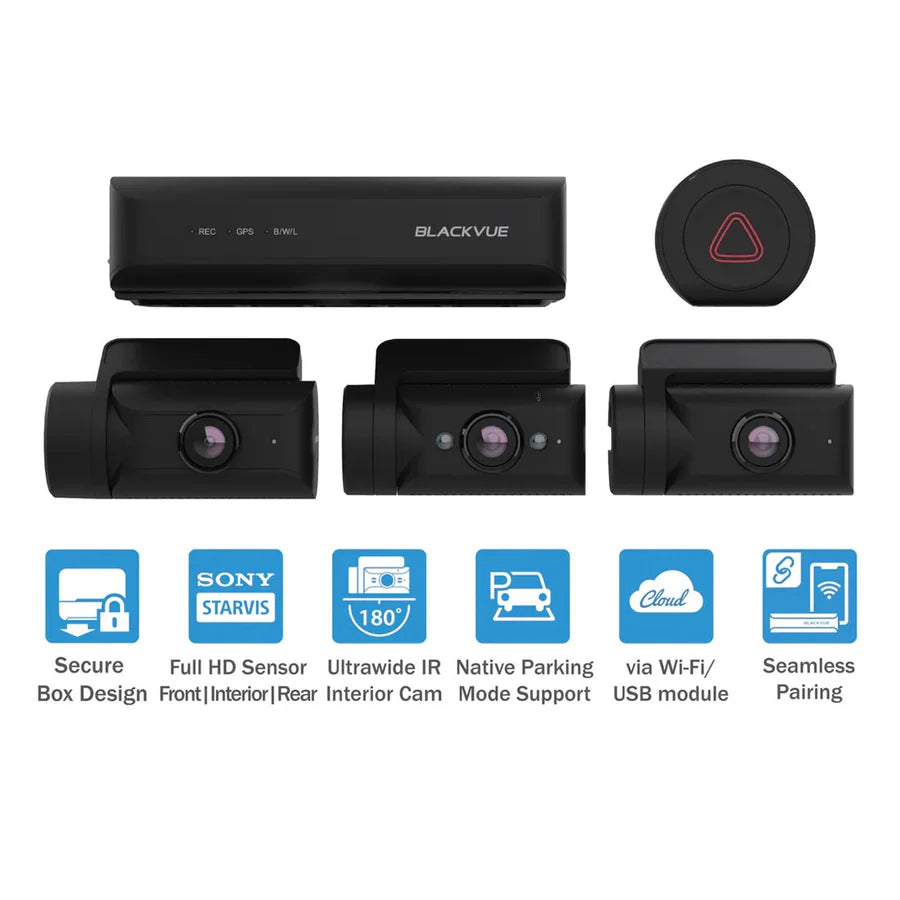

Crystal-Clear Recording with Sony STARVIS Sensors
Every camera in the system—front, rear, and interior—is equipped with a Sony STARVIS image sensor. That means you get high-clarity video even in low-light conditions. The front cam records at 1080P and a smooth 60fps, ensuring no detail goes unnoticed. The optional cameras record in 1080P at 30fps.
Smart Security with Intelligent Parking Mode
The BlackVue DR770X-BOXPRO doesn’t stop protecting your car when you turn it off. Thanks to advanced parking mode, it keeps an eye out for motion or impacts while you’re away. Buffered recording captures a few seconds before and after an event so you never miss the lead-up.

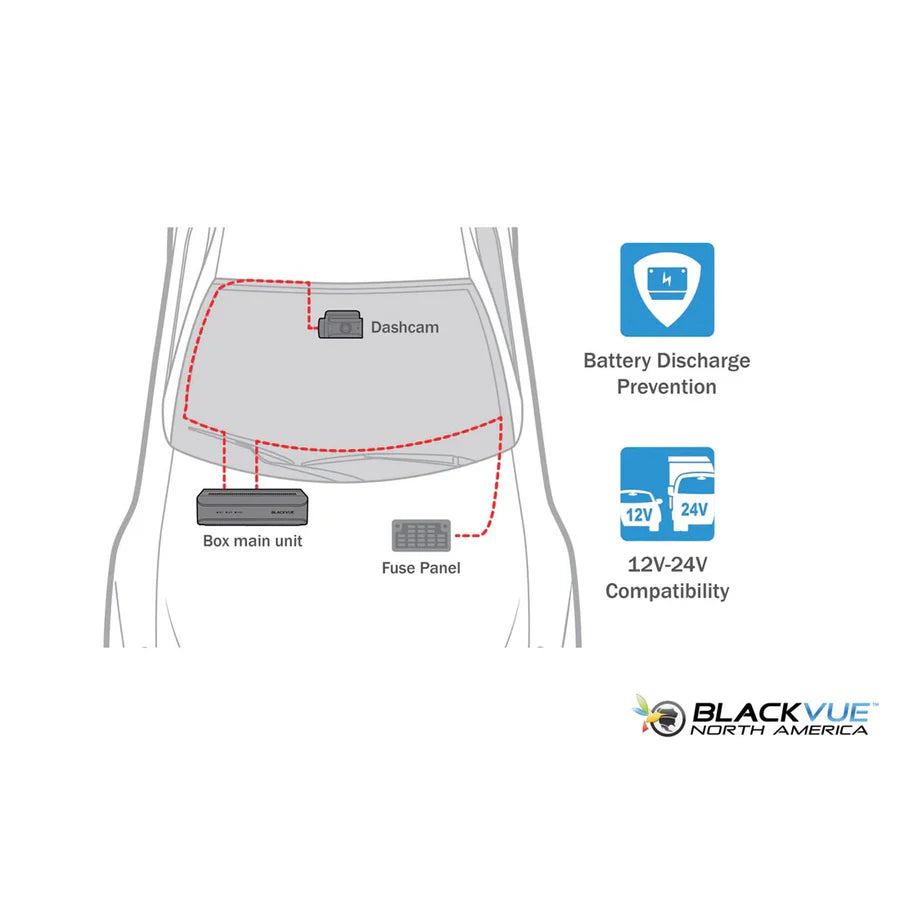

And yes, hardwiring is supported natively—no extra accessories required. You can even set voltage cut-offs and timers right from the BlackVue app.

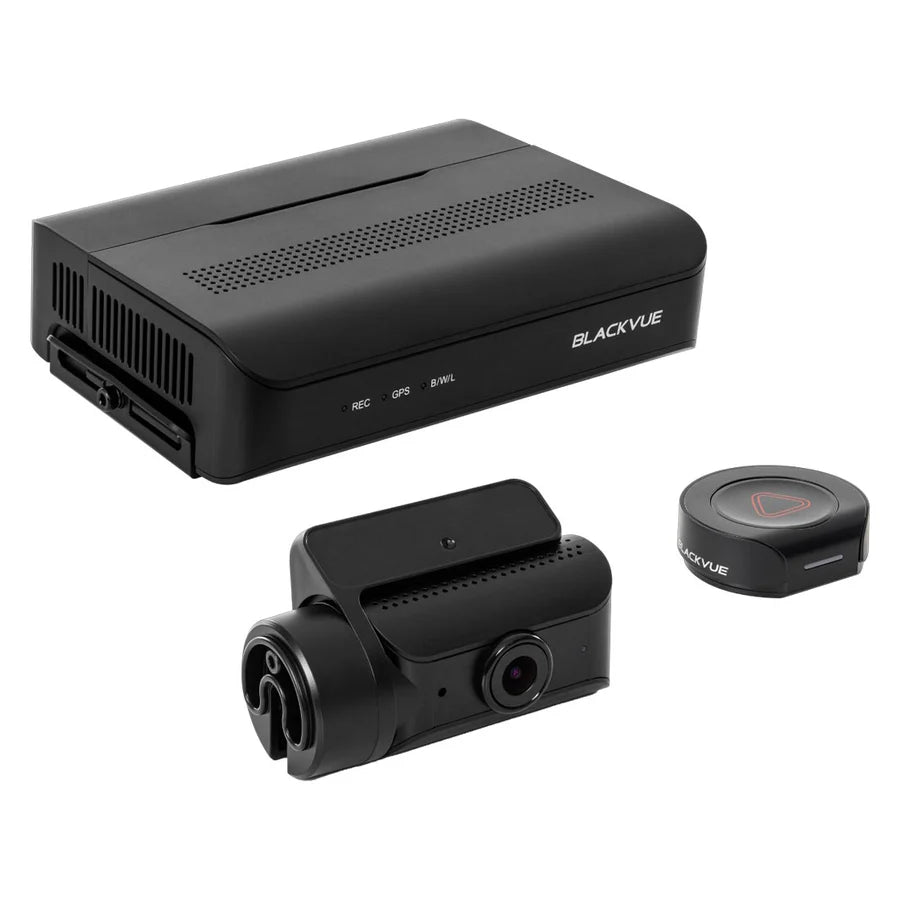

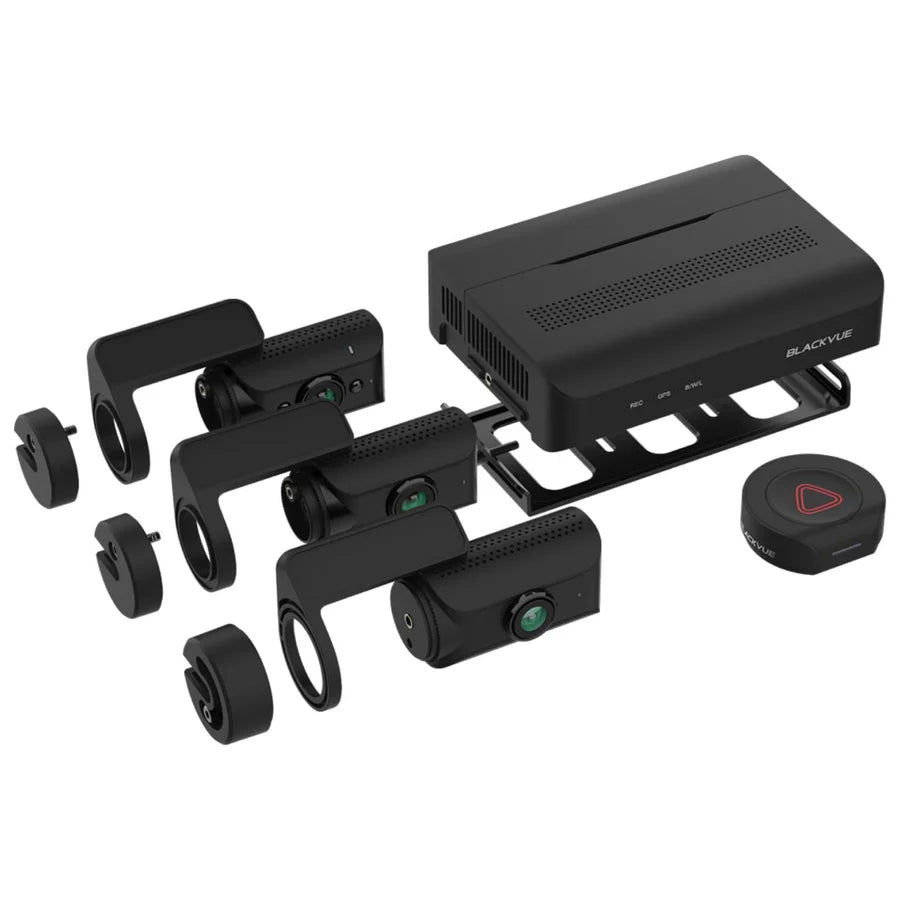

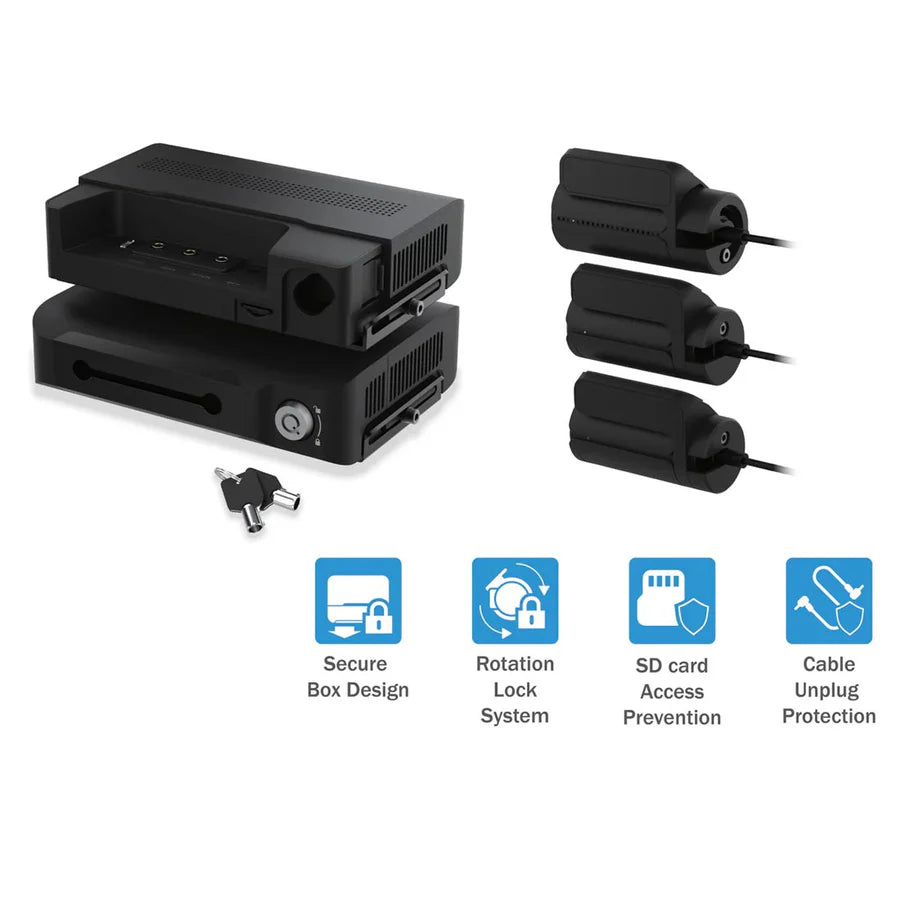

Stealthy Design, Durable Build
Unlike traditional dash cams, the BlackVue DR770X-BOXPRO uses a modular hidden box unit to house the recording hardware, keeping things sleek and low-profile. And instead of using heat-sensitive batteries, it features a supercapacitor, which is more reliable in extreme temperatures—ideal for Canadian winters or desert heat.
Stay Connected with BlackVue Cloud and LTE Options
Built-in Wi-Fi makes it easy to access your dash cam through your phone or tablet. Want remote access while you're away from the vehicle? You’ve got two options:
- Connect the dash cam to a mobile hotspot, like your phone or vehicle Wi-Fi, to use BlackVue Cloud features such as Live View, push notifications, and remote playback.
- For uninterrupted on-the-go access, add the optional CM100GLTE LTE module (sold separately). This gives your dash cam its own mobile connection, no matter where the car is parked.
Detailed Specifications:

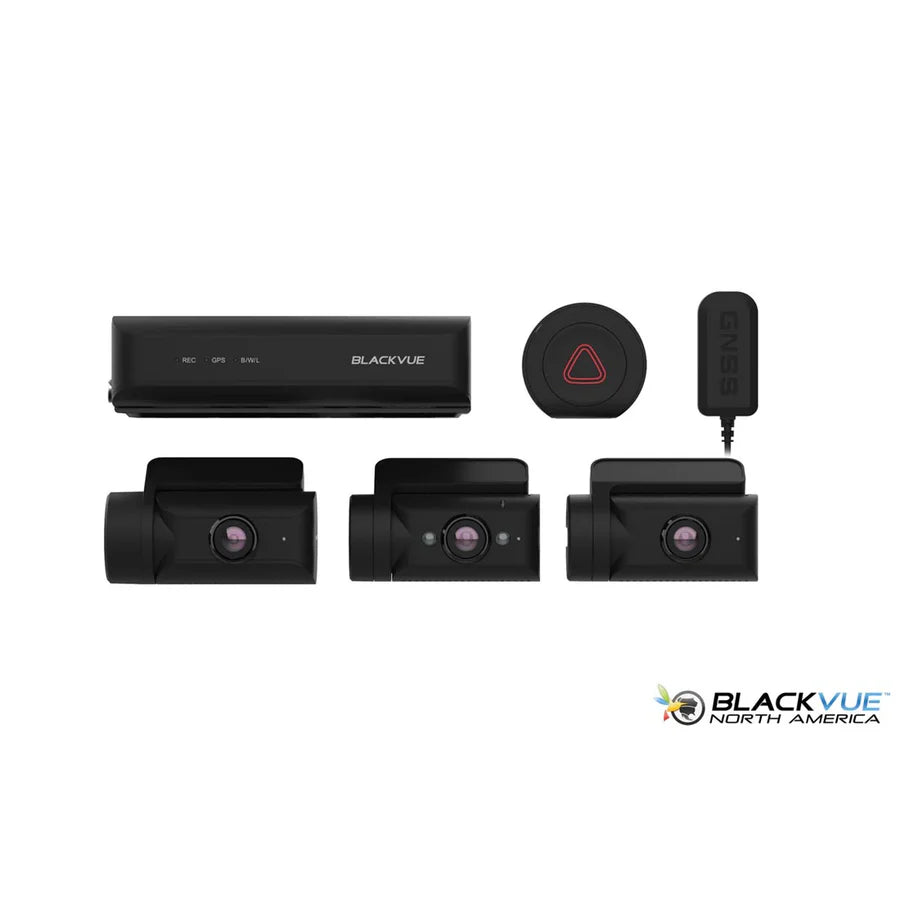

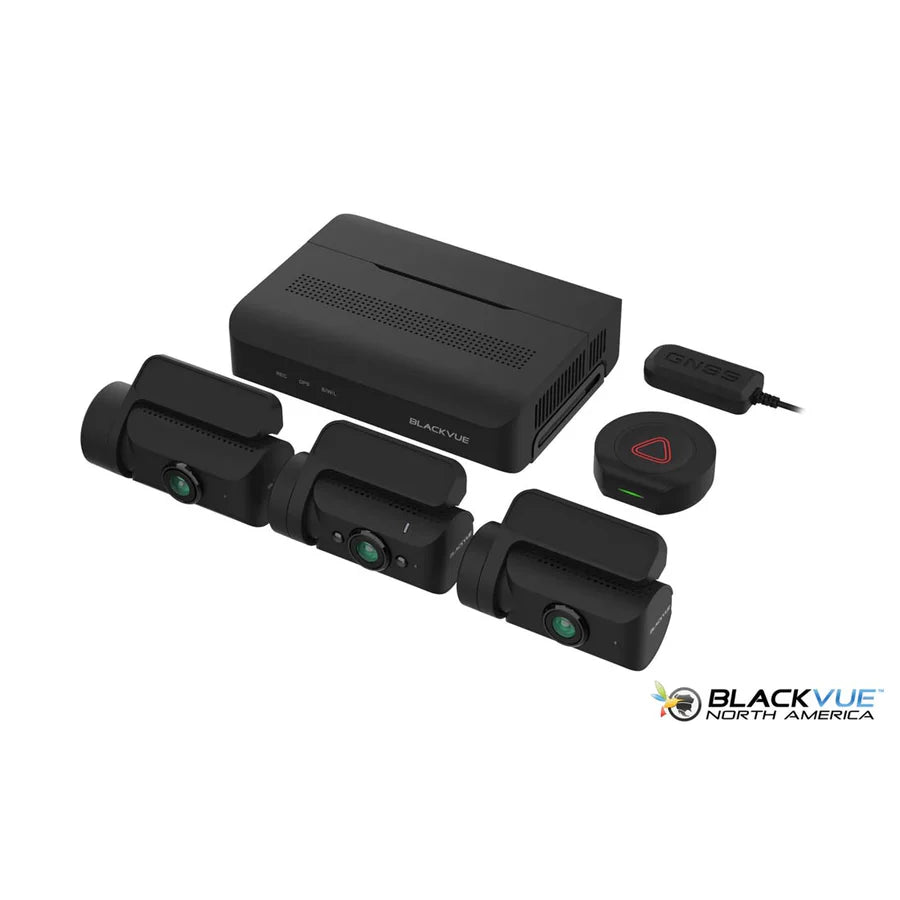

- Model Name: DR770X BOX PRO
- Type: Modular 3-Channel Dashcam with Hideaway Box

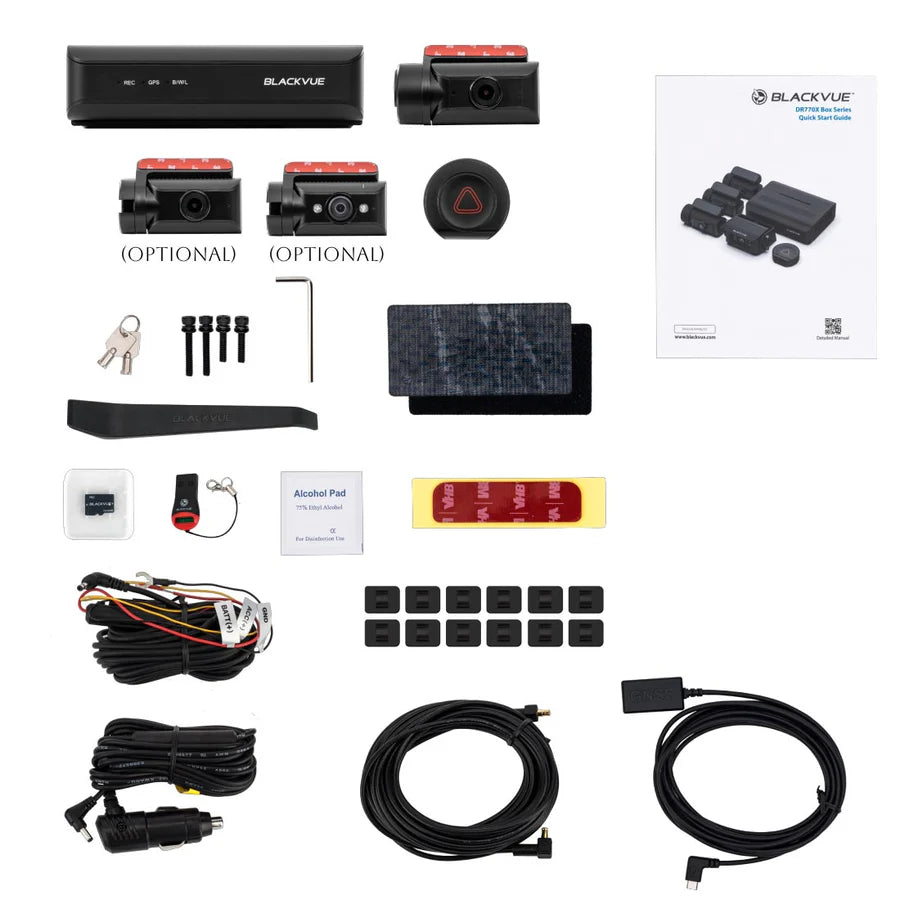

- Included: Front Camera (1080P Sony STARVIS), 64GB microSD Card
- Expandable: Add up to 2 optional cameras (3 Choices - Rear Interior, Rear External Weatherproof, Interior IR)
- Optional LTE Hotspot: CMG100LTE module
- Made in: Korea
Camera Specifications
Front Camera (Included)
- Sensor: Sony STARVIS CMOS (Approx. 2.1 MP)
- Resolution: Full HD 1920×1080 @ 60fps
- Viewing Angle: 139° diagonal, 116° horizontal, 61° vertical
- Weight: 43 g
- Size: 62.5 x 34.3 x 34.0 mm
Standard Rear Camera (RC1-C)
- Sensor: Sony Starvis CMOS
- Resolution: Full HD 1080P (1920×1080)
- Frame Rate: Up to 30fps
- Viewing Angle: 139° diagonal, 116° horizontal, 61° vertical
- Size: 63.5 mm x 32.0 mm x 32.0 mm
- Weight: 33 g
- Indoor use (interior or rear window mounted)
External Rear Camera (ERC1-C)
- Sensor: Sony Starvis CMOS
- Resolution: Full HD 1080P (1920×1080)
- Frame Rate: Up to 30fps
- Viewing Angle: 116° diagonal, 97° horizontal, 51° vertical
- Size: 70.4 mm x 56.6 mm x 36.1 mm
- Weight: 157 g
- Weatherproof, IP69K-rated protection
- Suitable for trucks, heavy vehicles, and harsh environments
Interior IR Camera (RC1-IR-C)
- Resolution: Full HD 1080P @ 30fps
- Viewing Angle: 180° diagonal, 150° horizontal, 93° vertical
- Infrared Illumination: 2 x 940nm IR LEDs
- Weight: 34 g
- Size: 63.5 x 32.0 x 32.0 mm
Recording & Video
- Video Compression: H.264 (AVC)
- File Format: MP4
- Super Night Vision: Yes
- Adaptive Format Free: Yes (no need for file formatting)
- Lock Event Files: Yes
- Scheduled Rebooting: Yes
- Recording Modes: Normal, Event (Impact Detection), Manual Event, Parking Mode (Impact & Motion Detection)
Bitrate (Mbps)
- Extreme: 16 + 10 + 10 (Front + Rear + Interior)
- Highest: 12 + 10 + 10
- High: 10 + 8 + 8
- Normal: 8 + 6 + 6
Approximate Recording Time by microSD Card Size (Extreme to Normal Quality)
- 64GB: 3h 46m – 6h 15m
- 128GB: 7h 34m – 12h 34m
- 256GB: 15h 10m – 25h 11m (Included)
- 512GB: 29h 39m – 49h 15m
Memory & Storage
- Included: 256GB microSD card (Upgradeable up to 512GB)
- Recommended Cards: BlackVue microSD only
Hardware & Design
- Main Unit Size: 135.0 x 101.0 x 33 mm
- Main Unit Weight: 209 g
- Wireless Button (EB-1): 45.2 x 42.0 x 14.5 mm / 23 g
- Built-in Capacitor: Super Capacitor (better heat resistance than batteries)
- Sensors: 3-Axis Acceleration Sensor (G-Sensor)

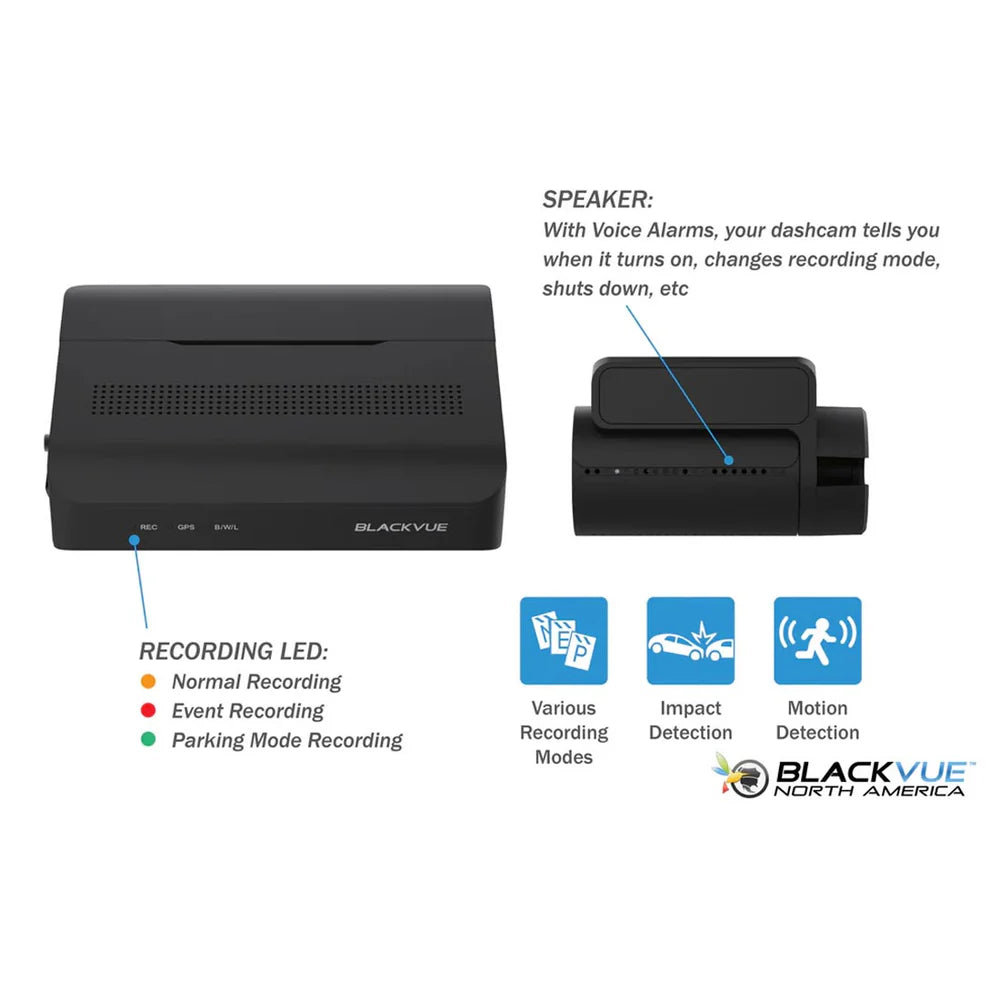

- Main Unit LED Indicators: Recording, GPS, BT/Wi-Fi/LTE
- Camera LED Indicators: Front & Rear Security LEDs
- EB-1 Button LED Indicators: Operating/Battery Low
Power & Operating Conditions
- Input Voltage: DC 12V – 24V (max 1A/12V)
- Normal Mode Power Consumption (GPS On, 3CH): Avg. 750mA @ 12V*
- Parking Mode Power Consumption (GPS Off, 3CH): Avg. 600mA @ 12V*
*IR LEDs add ~40-60mA when ON - Voltage Cut-Off Range (Low): 11.8V – 12.5V
- Voltage Cut-Off Range (High): 22.8V – 24V
- Operating Temperature: -20°C to 80°C (-4°F to 158°F)
- High Temperature Cut-Off: Approx. 80°C (176°F)

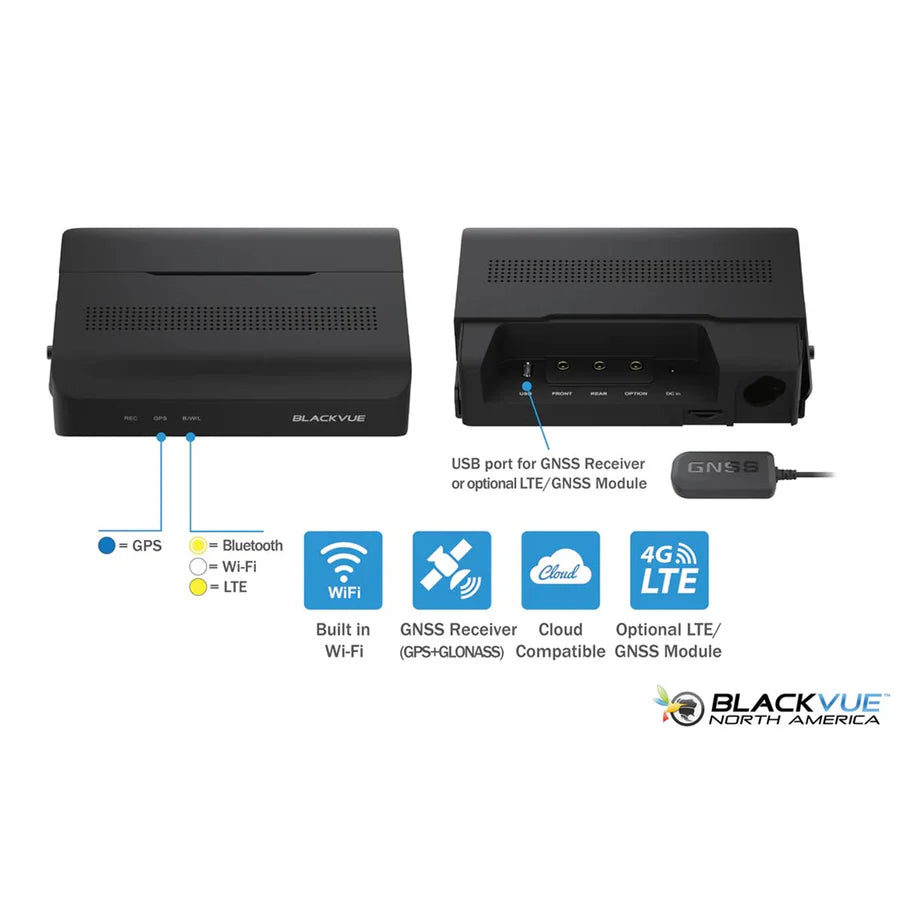

Connectivity & Software
- Wi-Fi: Built-in 802.11n (2.4 GHz)
- GPS: External Dual Band GPS Module (GPS & GLONASS) included
- LTE: Optional via CM100GLTE module (replaces external GPS)

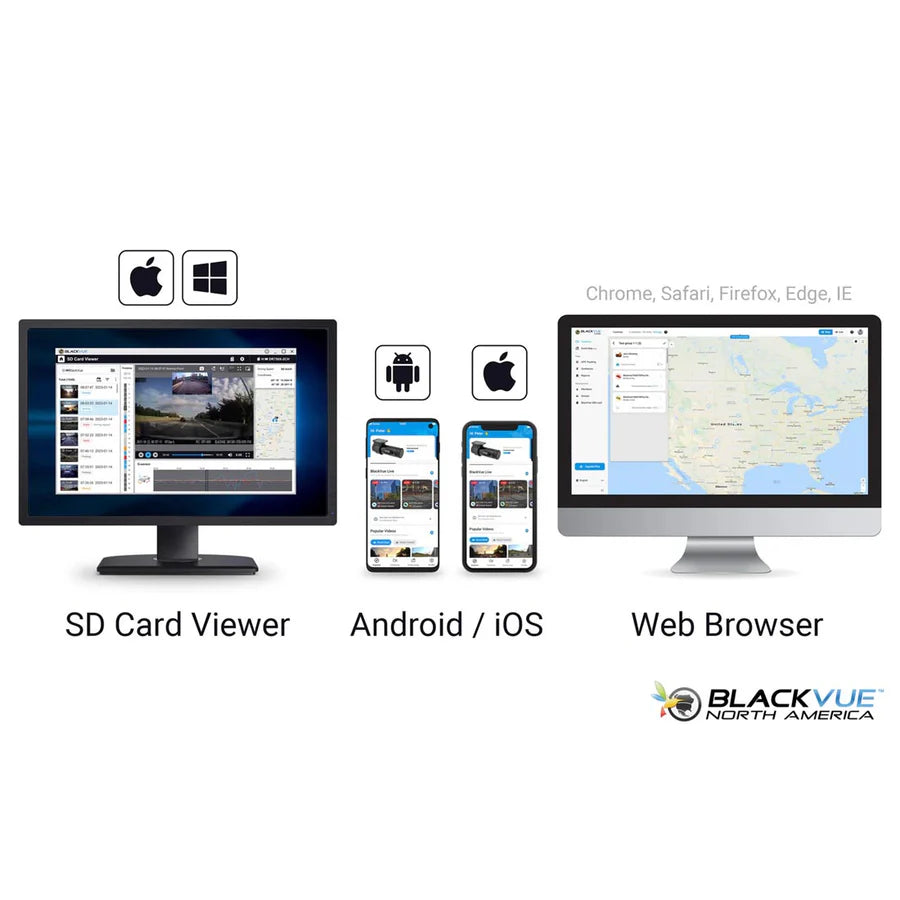

- BlackVue Cloud Support: Live View, Remote Viewing, Emergency Alarm, Video Backup, Playback
- App Compatibility: Android 8.0+, iOS 13.0+
- PC Software: BlackVue Viewer (Windows 7+, Mac OS 10.12+)
- Web Viewer: Chrome 71+, Safari 13+
Features
- Native Parking Mode with hardwiring cable included
- Automatic Parking Mode activation on ignition off
- Voltage cutoff & timer configurable via app
- Remote Trigger support
- Security & event file protection
- Modular design for flexible camera setup
- Optional cameras sold separately

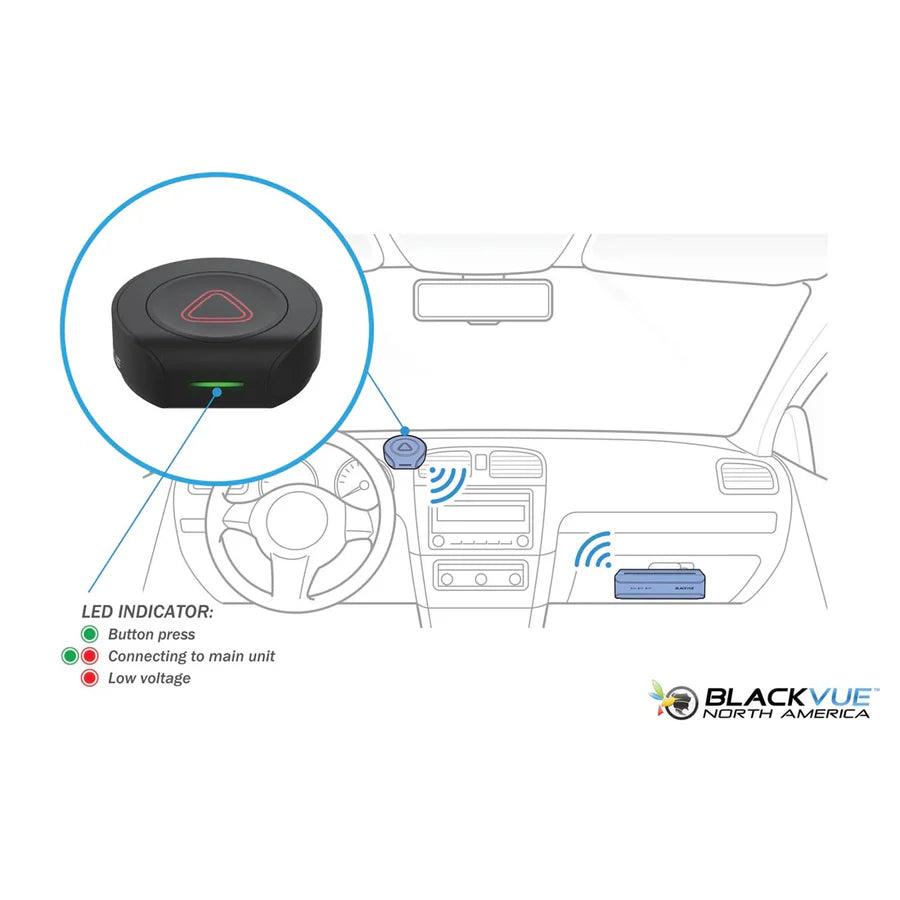

- Emergency SOS Button (EB-1 Wireless button) for manual event recording
- Certifications: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
