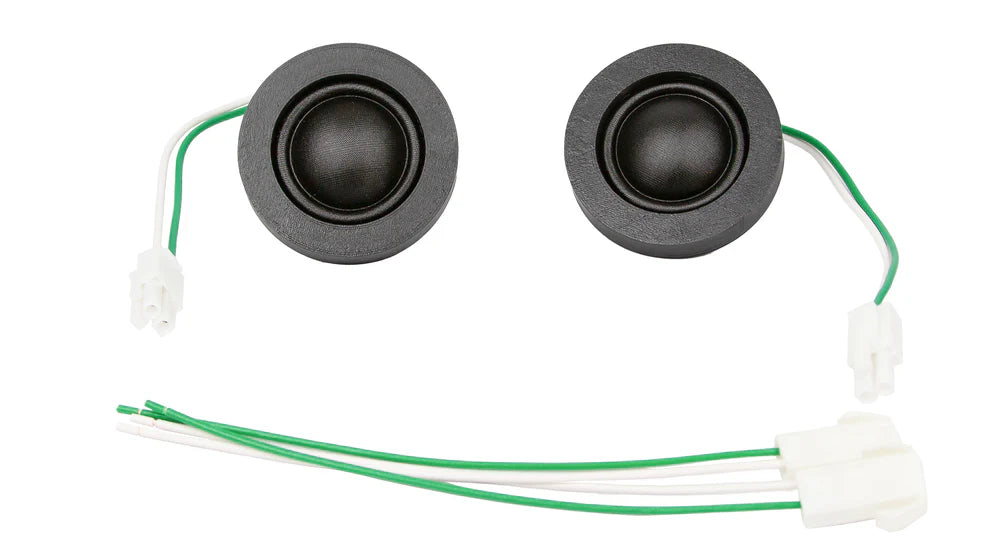

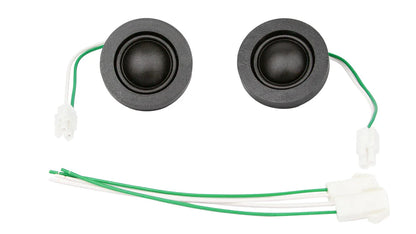

AudioFrog GS10OE-0006 GS-Series 1" tweeters (direct replacement tweeters, select Audi A4)
AudioFrog GS10OE-0006 GS-Series 1" tweeters (direct replacement tweeters, select Audi A4)
One-to-one replacement

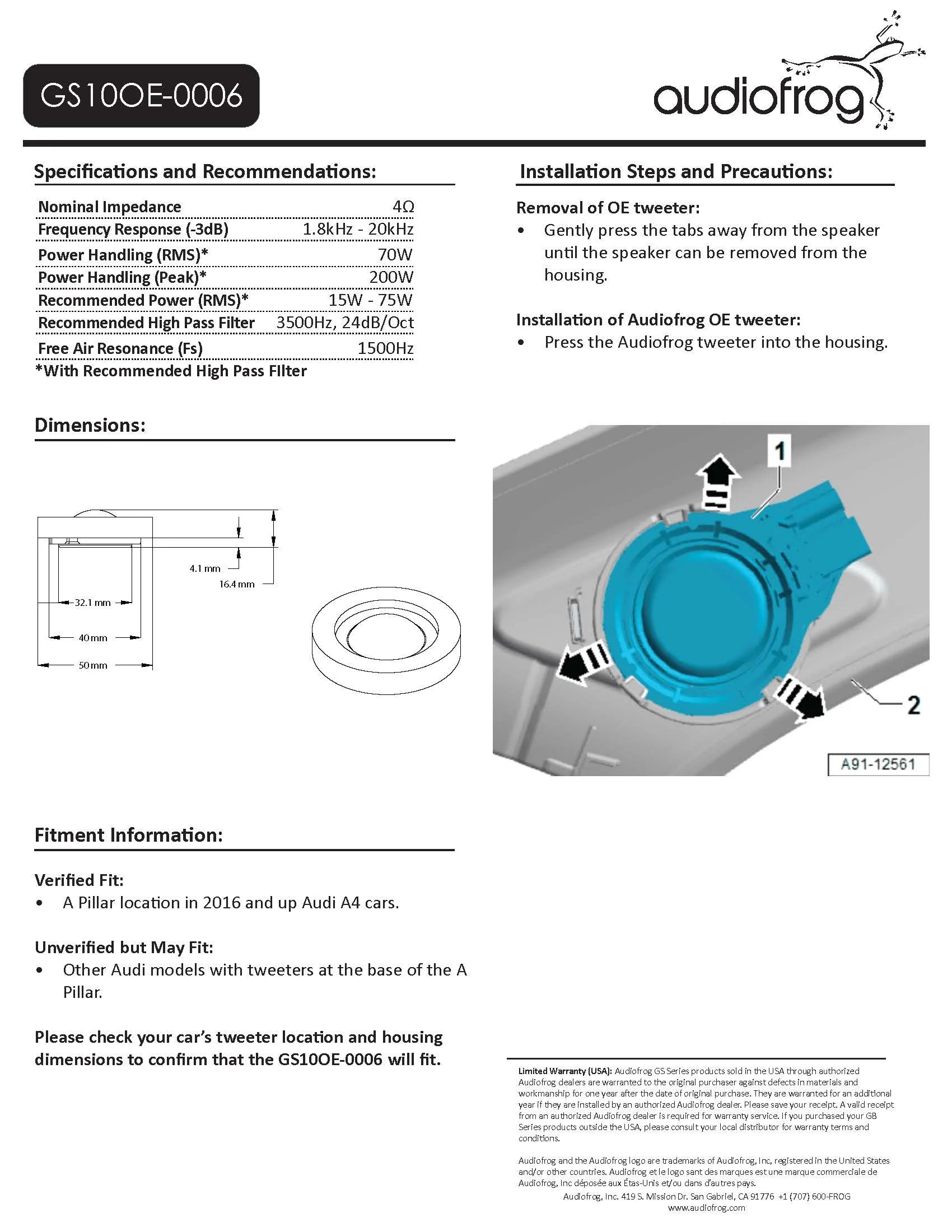

Audiofrog OE style tweeters provide the same performance as the aftermarket versions, but the aftermarket housings have been replaced by a custom mount designed to fit directly in the location provided by the factory. The Audiofrog GS10OE-0006 is designed to fit Audi A4 models with tweeters in the A pillar, but may also fit other models. Please check the GS10OE-0006 installation manual for a detailed drawing with dimensions.
Exceptional build quality
These tweeters are built to play hard every day without breaking a sweat. No flimsy plastics here — the GS10 houses a 1" fabric dome and a beefy 1″ voice coil on an aluminum former, sitting in a ferrofluid-filled gap to keep things cool when the volume's up. A copper cap on the polepiece keeps the highs tight and clean, cutting down on distortion and stretch. On top of that, a bucking magnet (a secondary magnet that amplifies the main magnet) gives the tweeter extra sensitivity, while a foam pad kills off unwanted reflections inside the motor so the response stays smooth. Rated at 70 watts RMS (15–75 watts recommended), they'll work with your factory headunit or an aftermarket system.
The Audiofrog difference
Founded by veteran installers, Audiofrog makes speakers designed to take real power without breaking a sweat. Every component features versatile mounting and durable materials built with installers in mind — whether you're swapping a single tweeter or building a full custom setup, expect clean, detailed sound that lasts.
Product highlights:
- 1″ (25 mm) fabric dome
- 1″ (25 mm) voice coil on aluminum former
Ferrofluid-filled gap for superior heat dissipation and increased damping at resonance - Neodymium motor with copper pole piece cap
- Bucking magnet for increased sensitivity
- Reflection-absorbing and diffusing foam pad under diaphragm for smooth frequency response
- Screw terminals
- Industry-leading mounting kit included
Hex screws and tools included - Designed for use with GS40, GS60, GS410C and GS610C
- warranty: 1 year
Specifications:
- Nominal Impedance: 4 Ω
- RMS Power Handling: 70 W (with recommended crossover)
- Peak Power Handling: 200 W (with recommended crossover)
- Frequency Response: 1.8 kHz – 20 kHz
- Sensitivity (2.83V / 1M): 92 dB
- Recommended Amplifier RMS Power Range: 15 W – 75 W
- Recommended High Pass Filter Frequency and Slope: ≥ 3.5 kHz, ≥ 12 dB/oct
