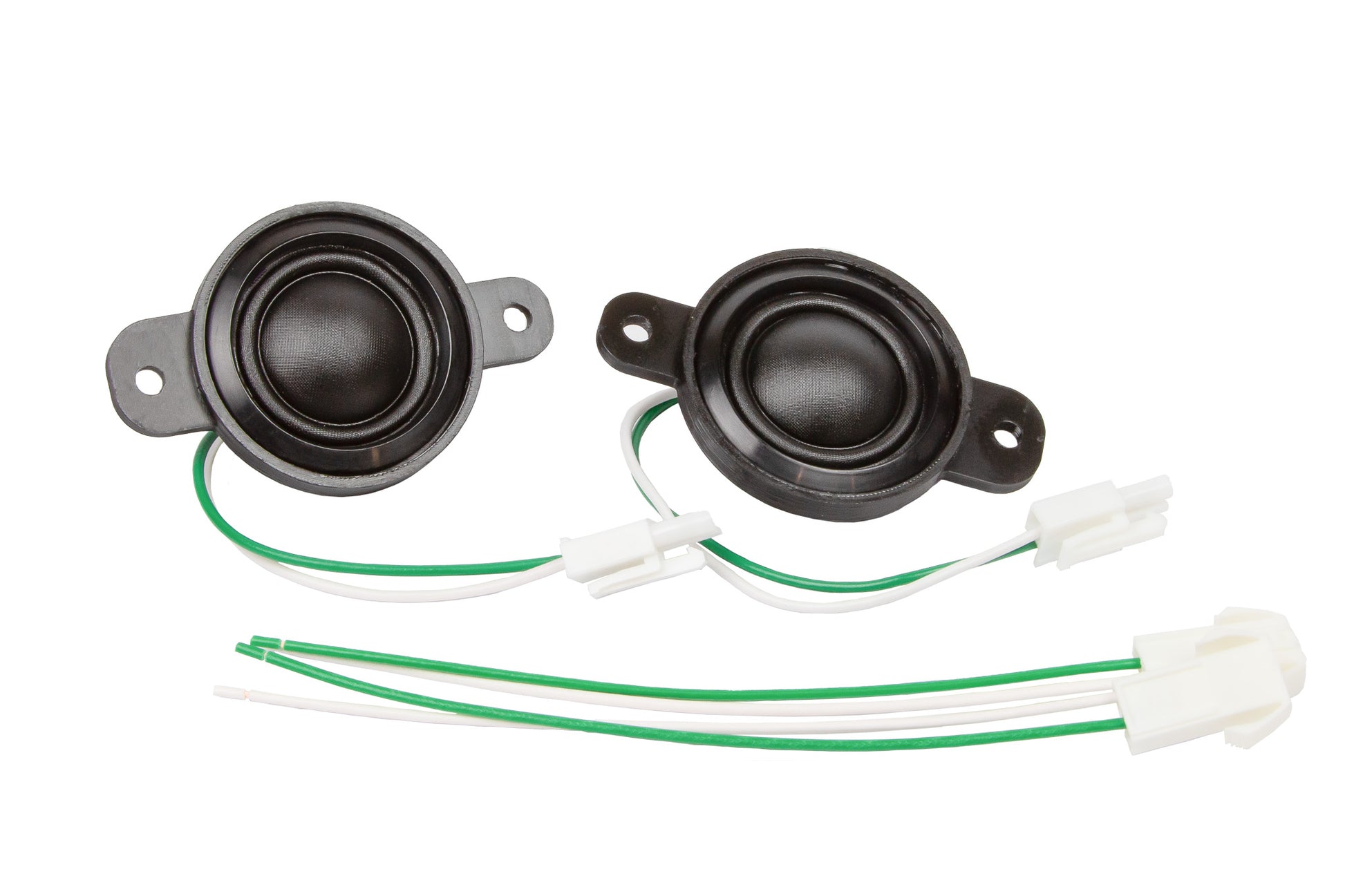

AudioFrog GB10OE-0010 GB-Series 1″ (25 MM) audiophile-grade tweeter, 2015-20 Ford F-150 w/A pillar location
AudioFrog GB10OE-0010 GB-Series 1″ (25 MM) audiophile-grade tweeter, 2015-20 Ford F-150 w/A pillar location
Regular price
$659.95 CAD
Regular price
$724.95 CAD
Sale price
$659.95 CAD
Unit price
/
per
Description

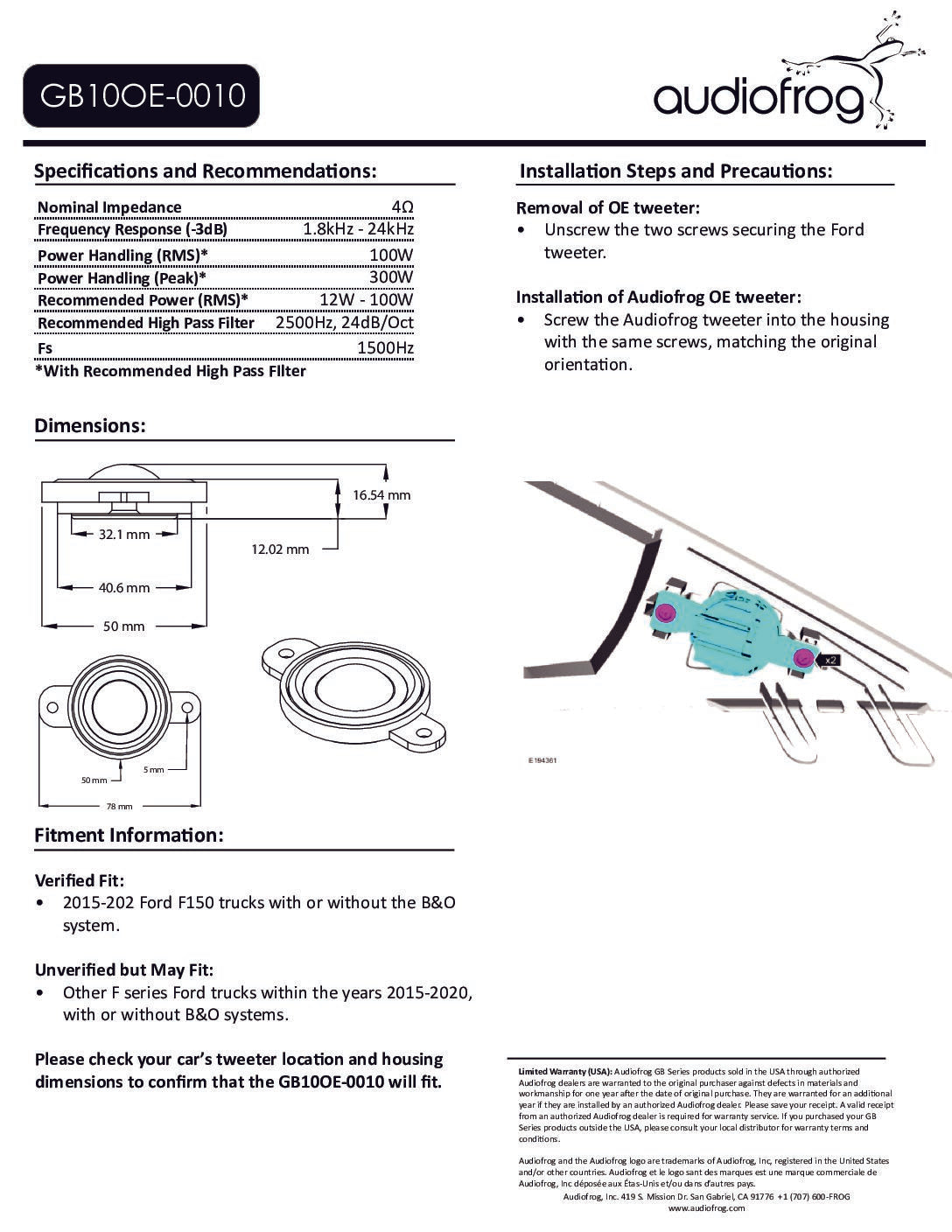

Audiofrog OE style tweeters provide the same performance as the aftermarket versions, but the aftermarket housings have been replaced by a custom mount designed to fit directly in the location provided by the factory. The Audiofrog GB10OE-0010 is designed to fit Ford F-150 models with tweeters in the A-pillar, but may also fit other models. Please check the GB10OE-0010 installation manual for a detailed drawing with dimensions.
Product highlights:
- 1” (25 mm) Sealed Polyester Diaphragm
- 1” (25 mm) Voice Coil
- Neodymium Motor
- Copper Inductance- and Distortion-Reducing Pole Piece Cap
- Removable and Paintable Grill
- warranty: 1 year
Specifications:
- Nominal Impedance: 4 Ω
- RMS Power Handling: 100 W (with recommended crossover)
- Peak Power Handling: 300 W (with recommended crossover)
- Frequency Response (-3 dB): 1.8 kHz – 24 kHz
- Sensitivity (2.83V / 1M): 90 dB
- Recommended Amplifier RMS Power Range: 20 W – 100 W
- Recommended High Pass Filter Frequency and Slope: ≥ 2.5 kHz, ≥ 12 dB/oct
