AudioFrog GS10OE-0001 GS-Series Custom Tweeter, Universal with Grille

Description:

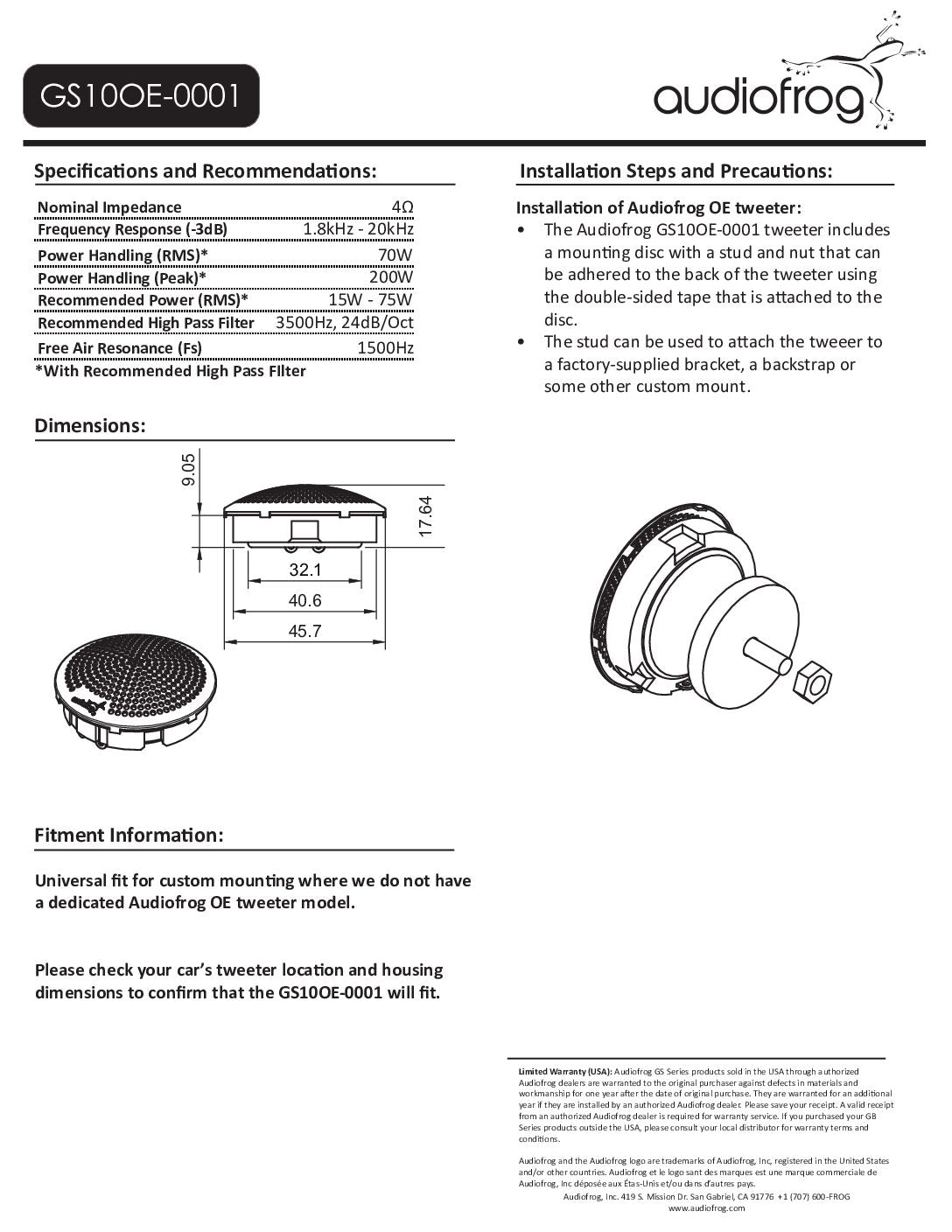

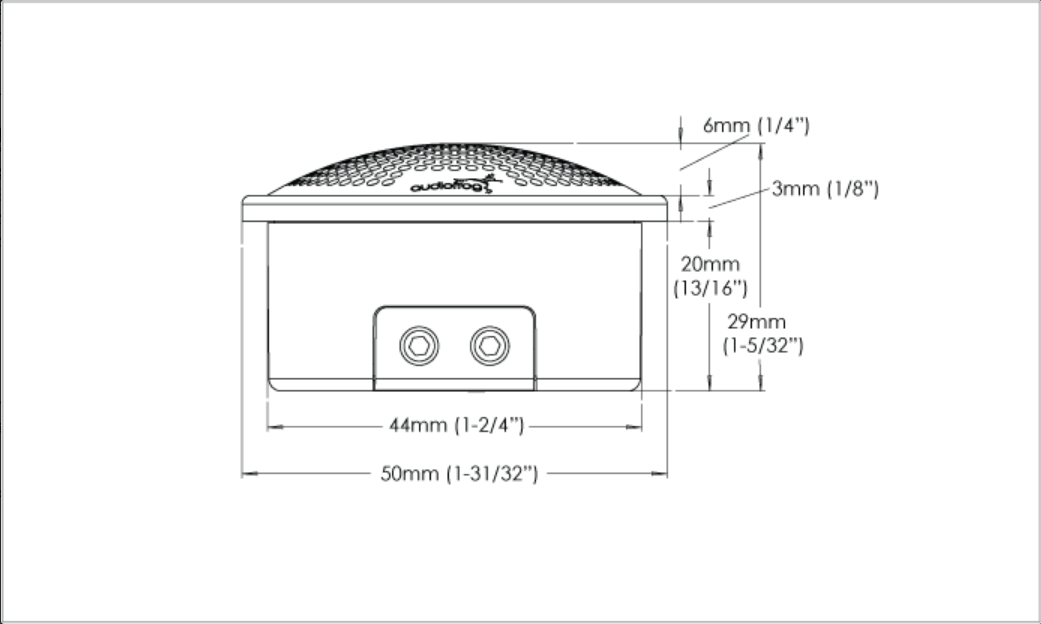

Audiofrog OE style tweeters provide the same performance as the aftermarket versions, but the aftermarket housings have been replaced by a custom mount designed to fit directly into the location provided by the factory. The Audiofrog GS10OE-0001 is designed as a universal fit using a backstrap, but may fit many locations. Please check the GS10OE-0001 installation manual for a detailed drawing with dimensions.

Product Highlights:

• 1” (25 mm)
• Nominal Impedance: 4 Ω
• RMS Power Handling: 70 W (with recommended crossover)
• Peak Power Handling: 200 W (with recommended crossover)
• Frequency Response: 1.8 kHz – 20 kHz
• Sensitivity (2.83V / 1M): 92 dB
• Recommended Amplifier RMS Power Range: 15 W – 75 W
• Recommended High Pass Filter Frequency and Slope: ≥ 3.5 kHz, ≥ 12 dB/oct

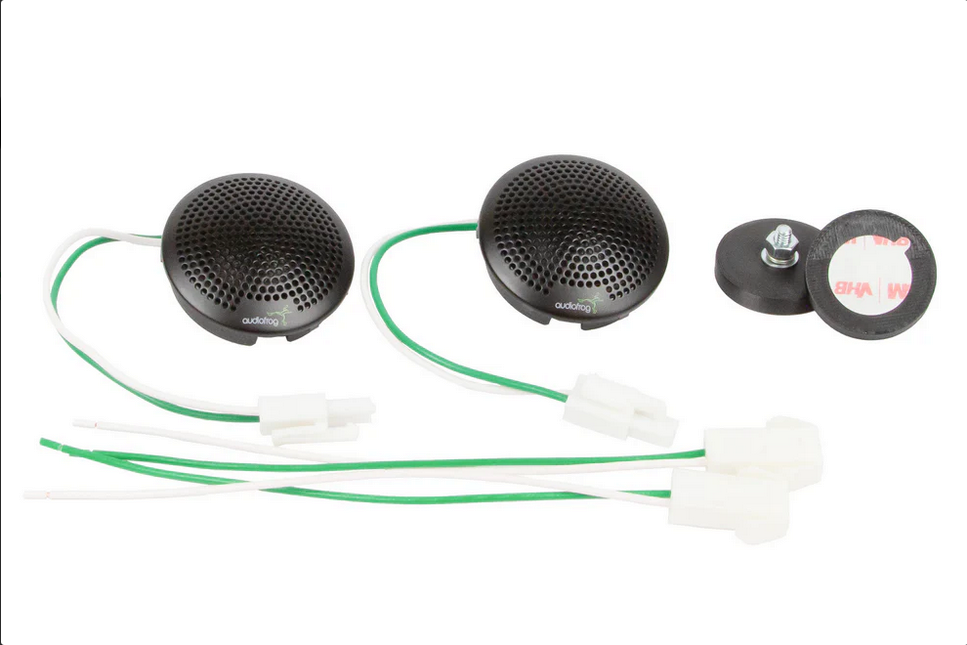

What's in the box:

• One pair GS10OE-0001 tweeters
• One pair connecting cables
• One pair mounting plates
