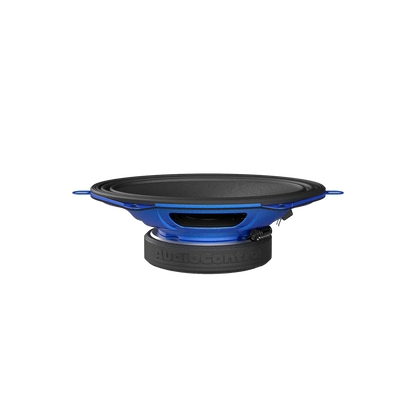

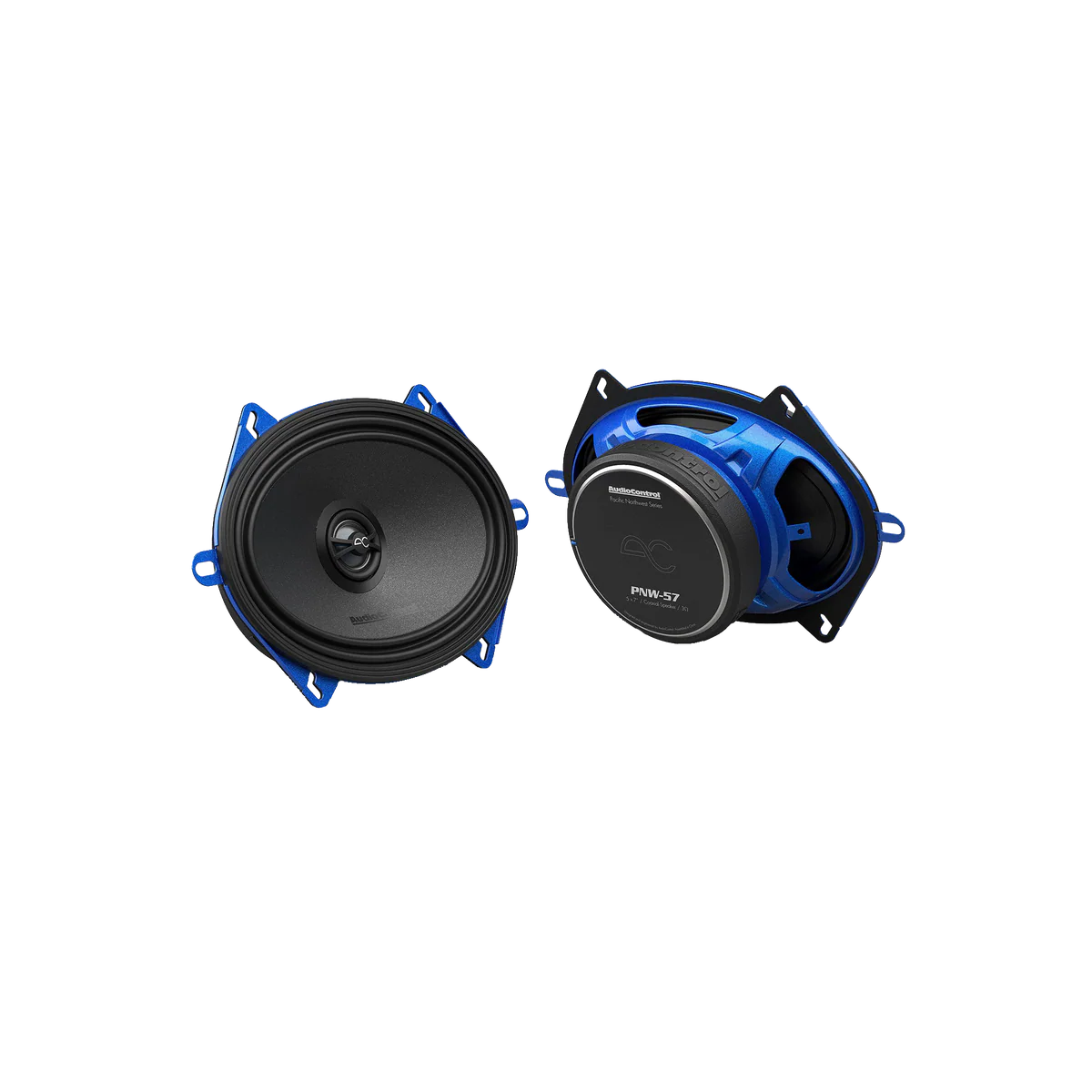

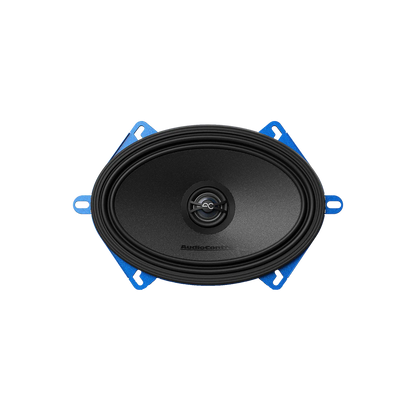

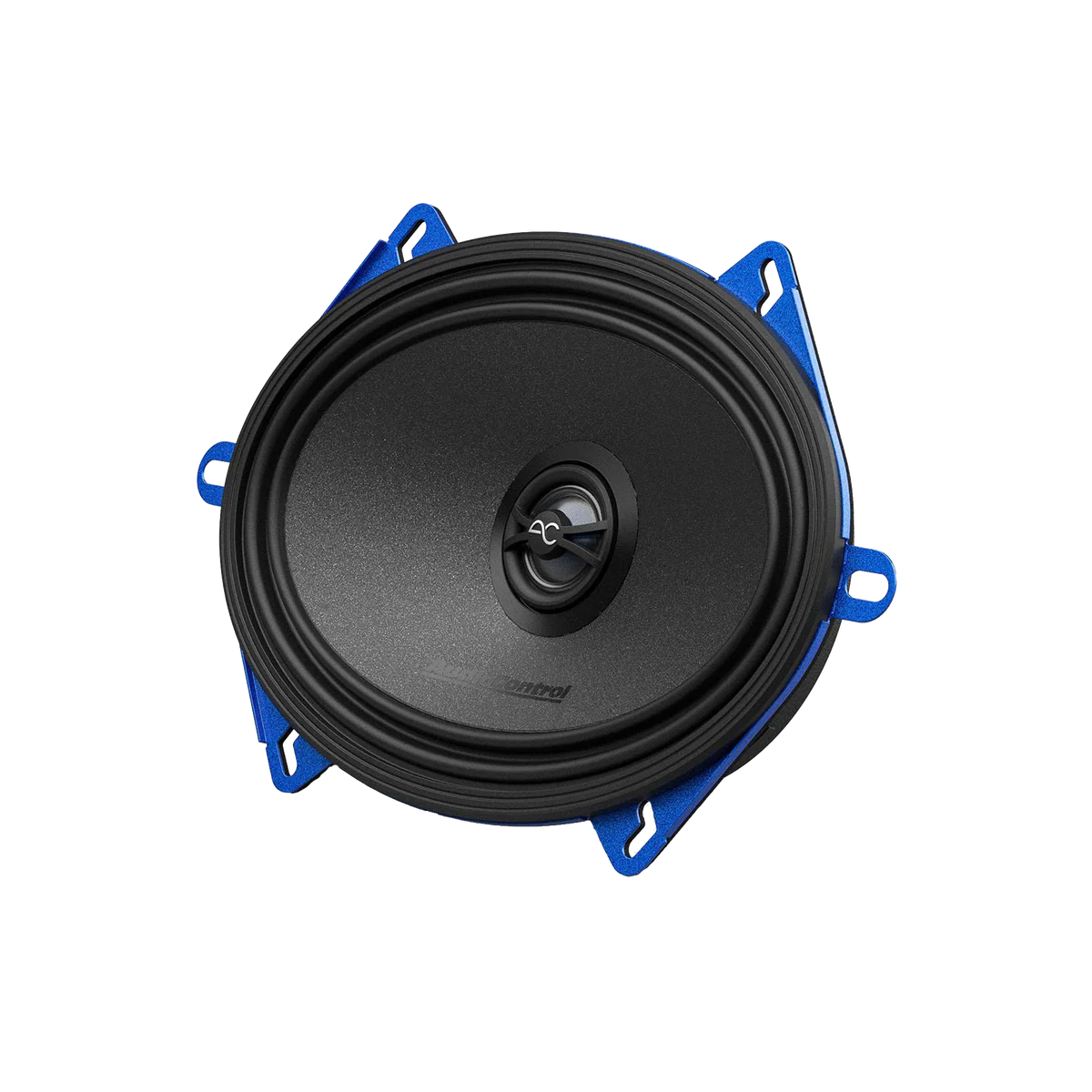

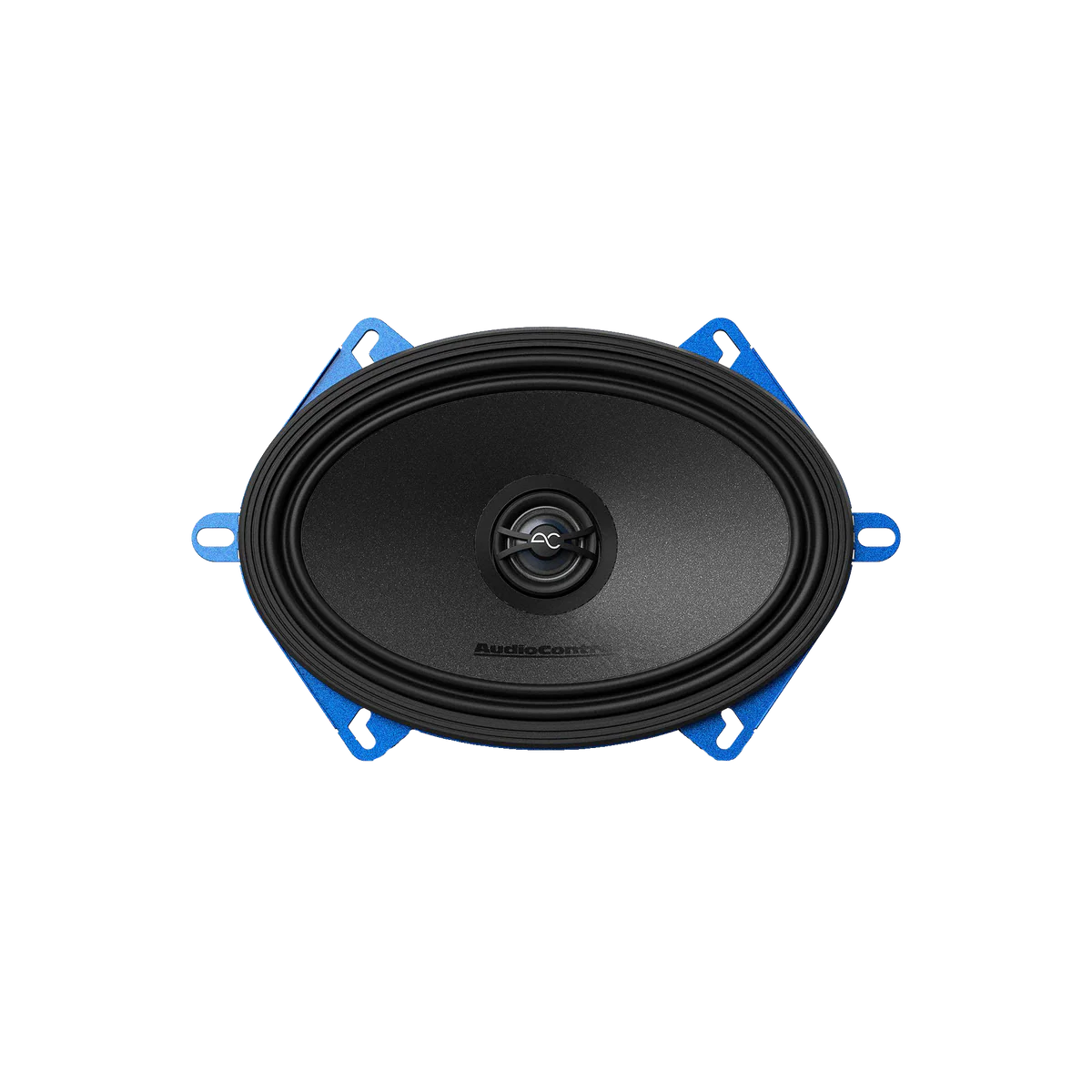

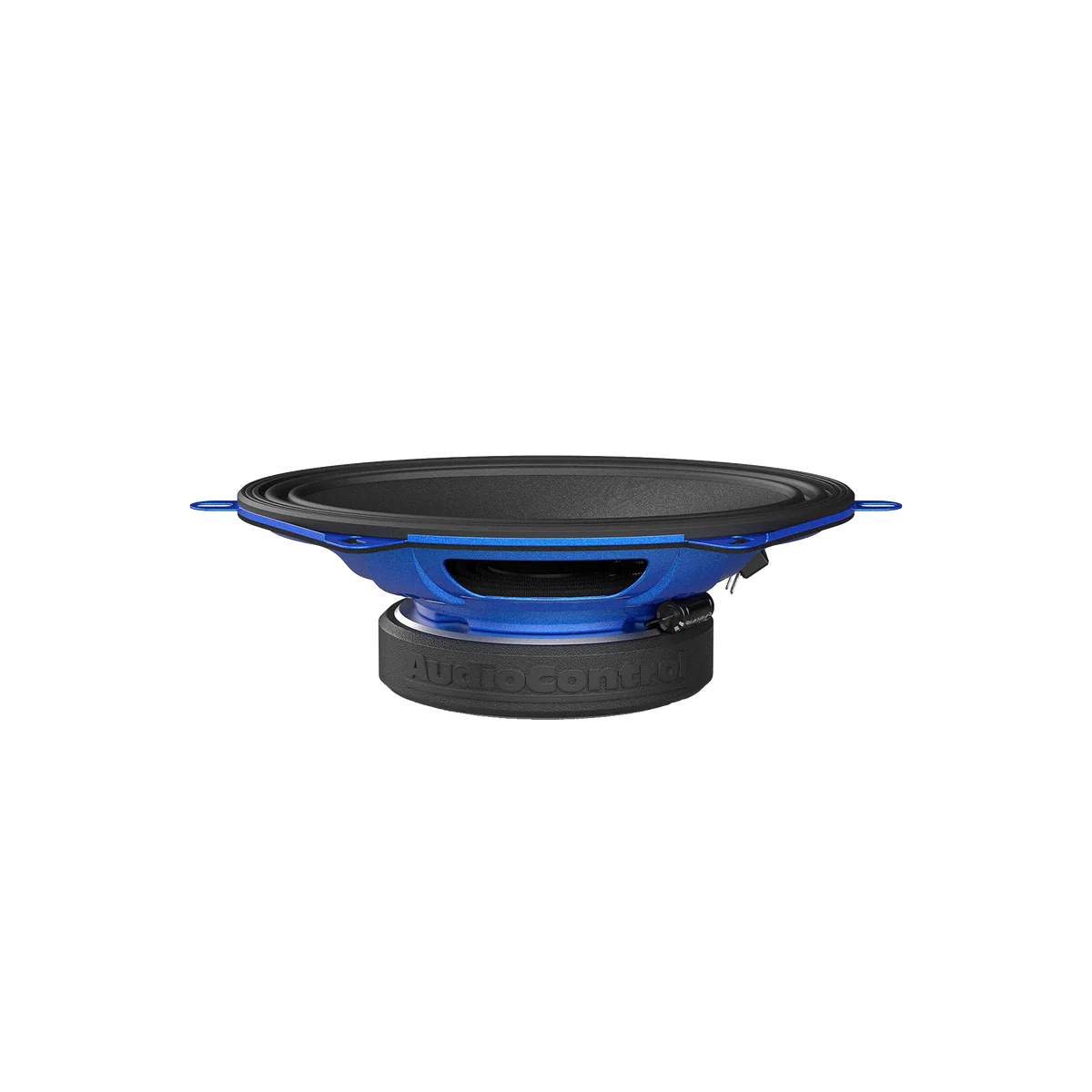

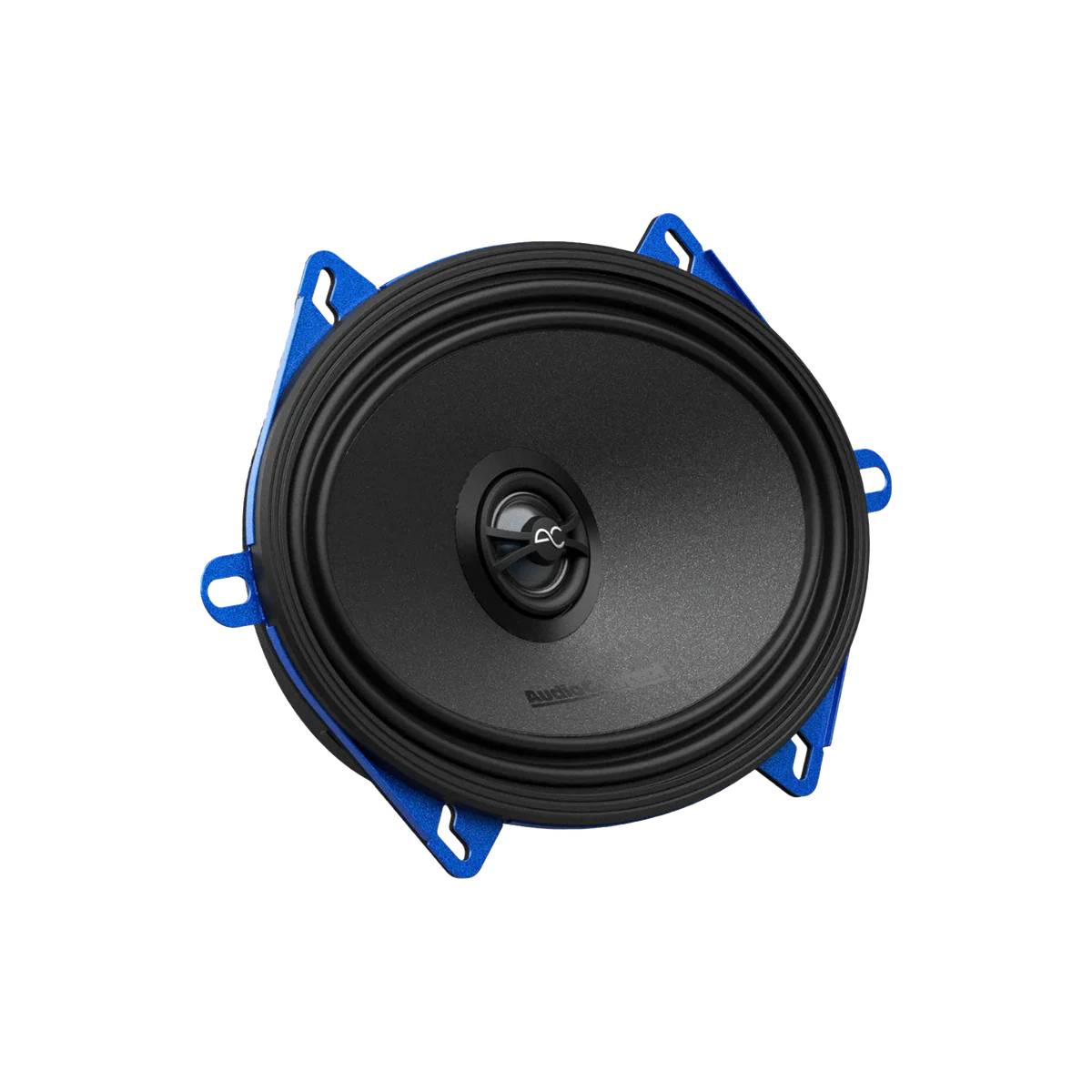

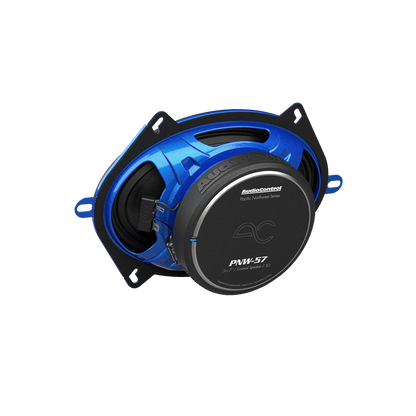

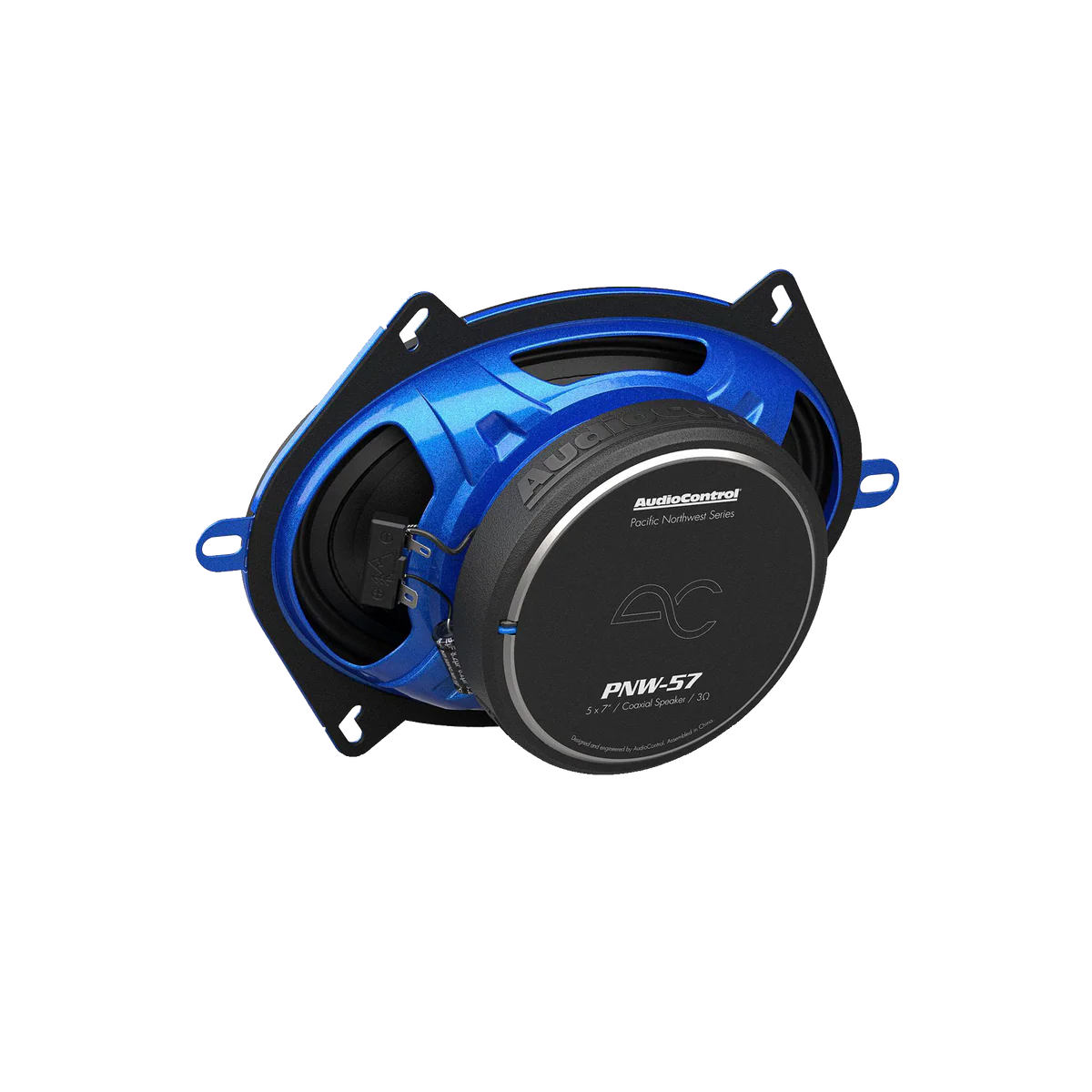

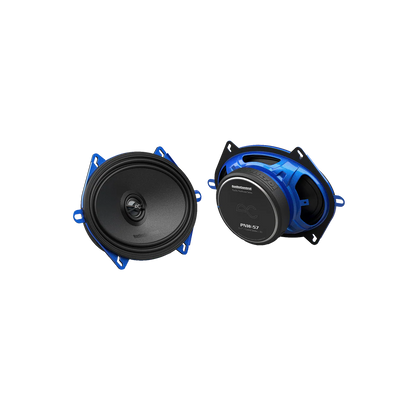

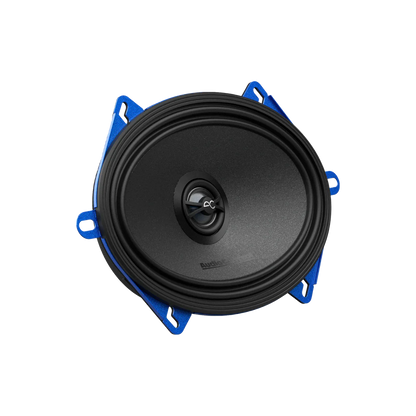

AudioControl PNW-57 PNW Series 5x7" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

AudioControl PNW-57 PNW Series 5x7" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

Features:

  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear double-roll surround for precision cone movement
  • Complex FEA-designed high-efficiency motor
  • Rigid poly mica-coated cone for optimized sound reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • Concentric point source design for a seamless transition from midrange to tweeter
  • Sonic diffuser and radiant collar for better off-axis frequency response
  • High-quality mounting hardware included

Specifications:

  • Crossover Type - Butterworth
  • Power - 75W RMS / 100W Max
  • DC Resistance (Re). - 2.3 ohms
  • Filter Type - HP
  • Frequency Response - 60-20k Hz
  • XO Frequency - 5250 Hz
  • Slope (Octave) - -6 dB
  • Tweeter Voice Coil Diameter - 20 mm
  • Midrange Voice Coil Diameter - 35 mm

IN THE BOX: (2) PNW-57 Speakers, Manual, Warranty

DIMENSIONS

  • Overall Diameter: 5.5 x 8.73 in / 140.6 x 221.9 mm
  • Cut Out Diameter: 4.64 x 6.96 in / 118 x 177 mm
  • Mounting Depth: 2.24 in / 57 mm
  • Height: 0.22 in / 5.6 mm
  • Motor Diameter (w/ Cover): 4.17 in / 106 mm
