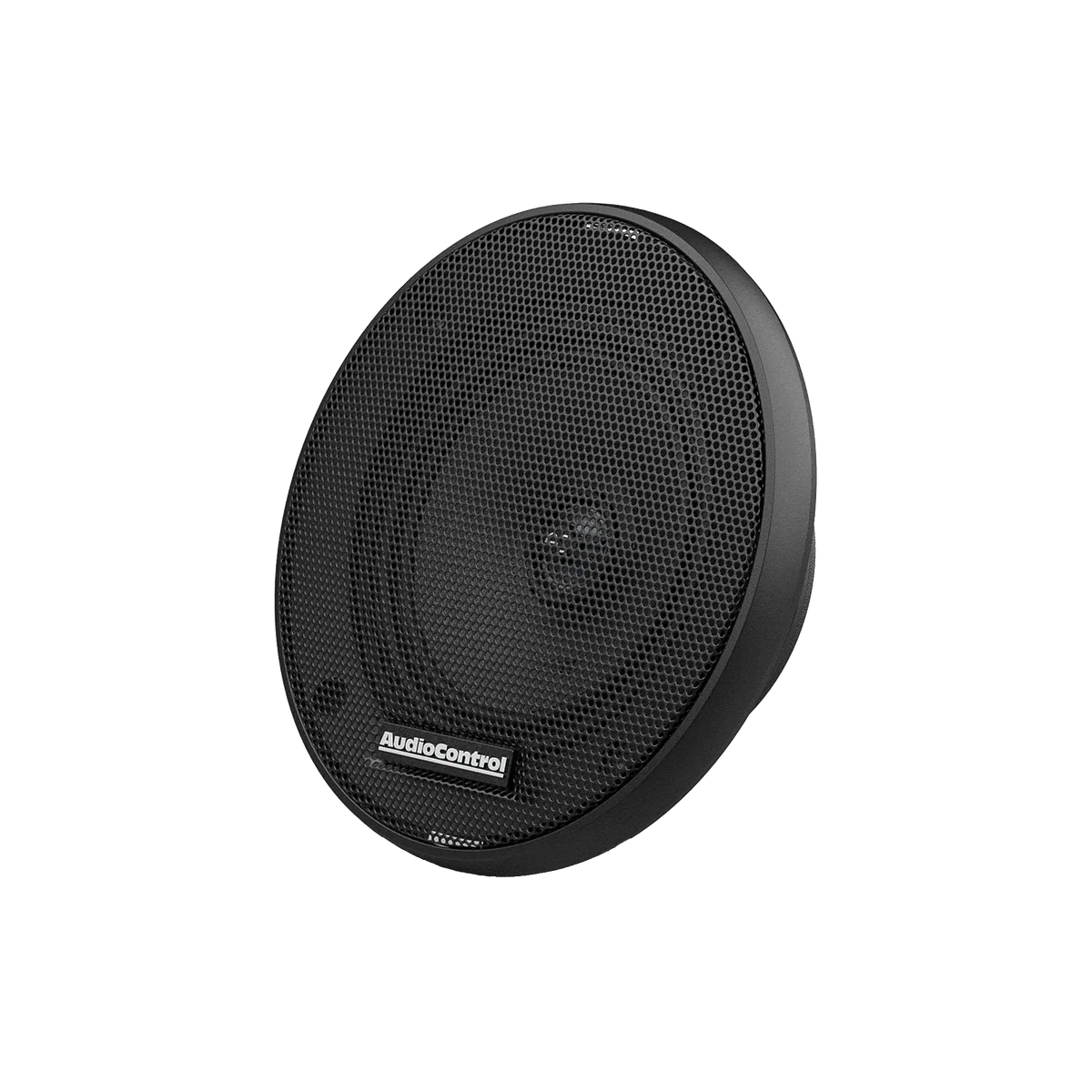

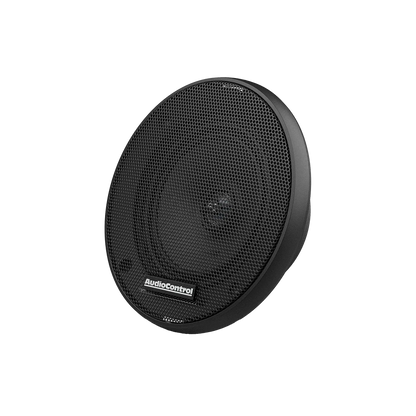

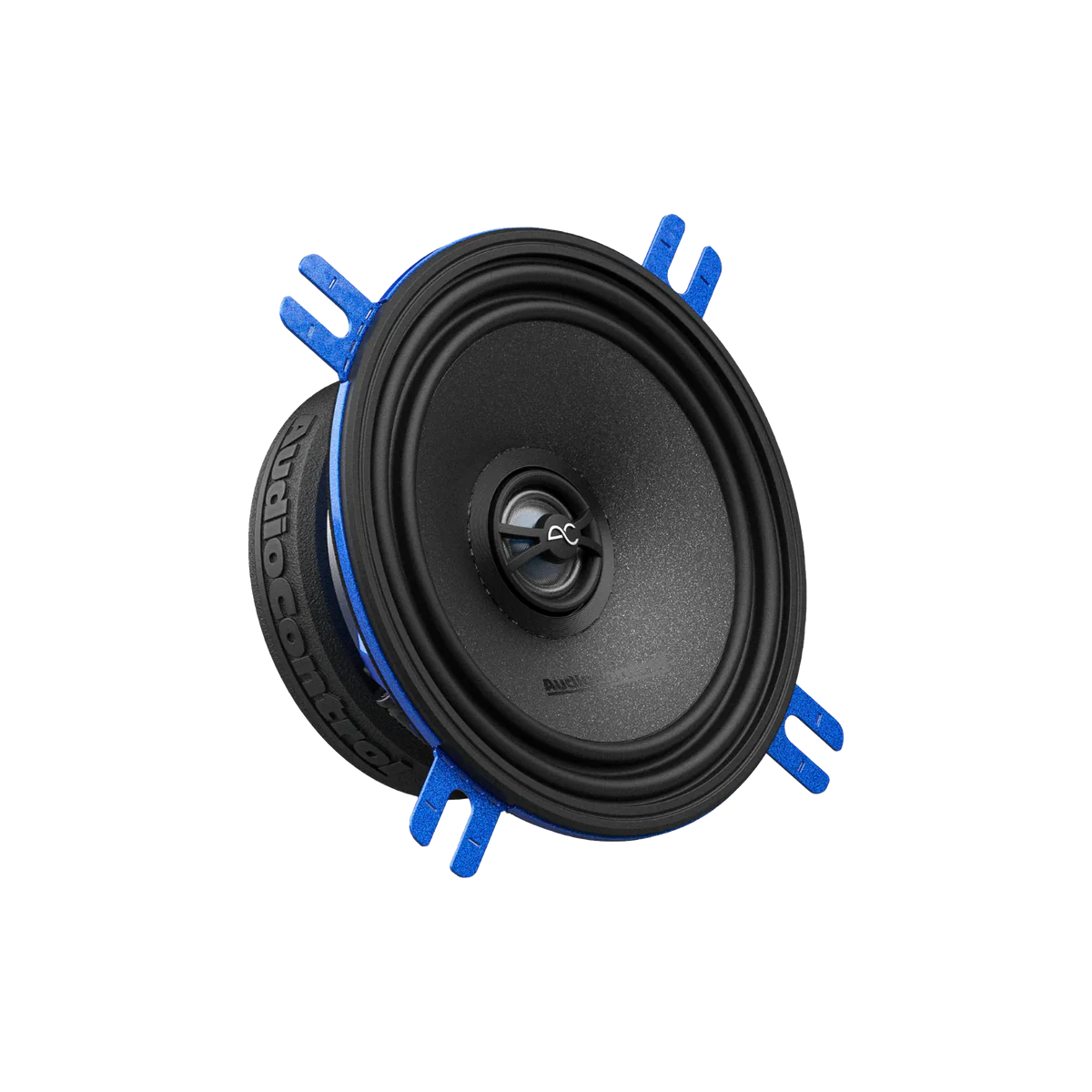

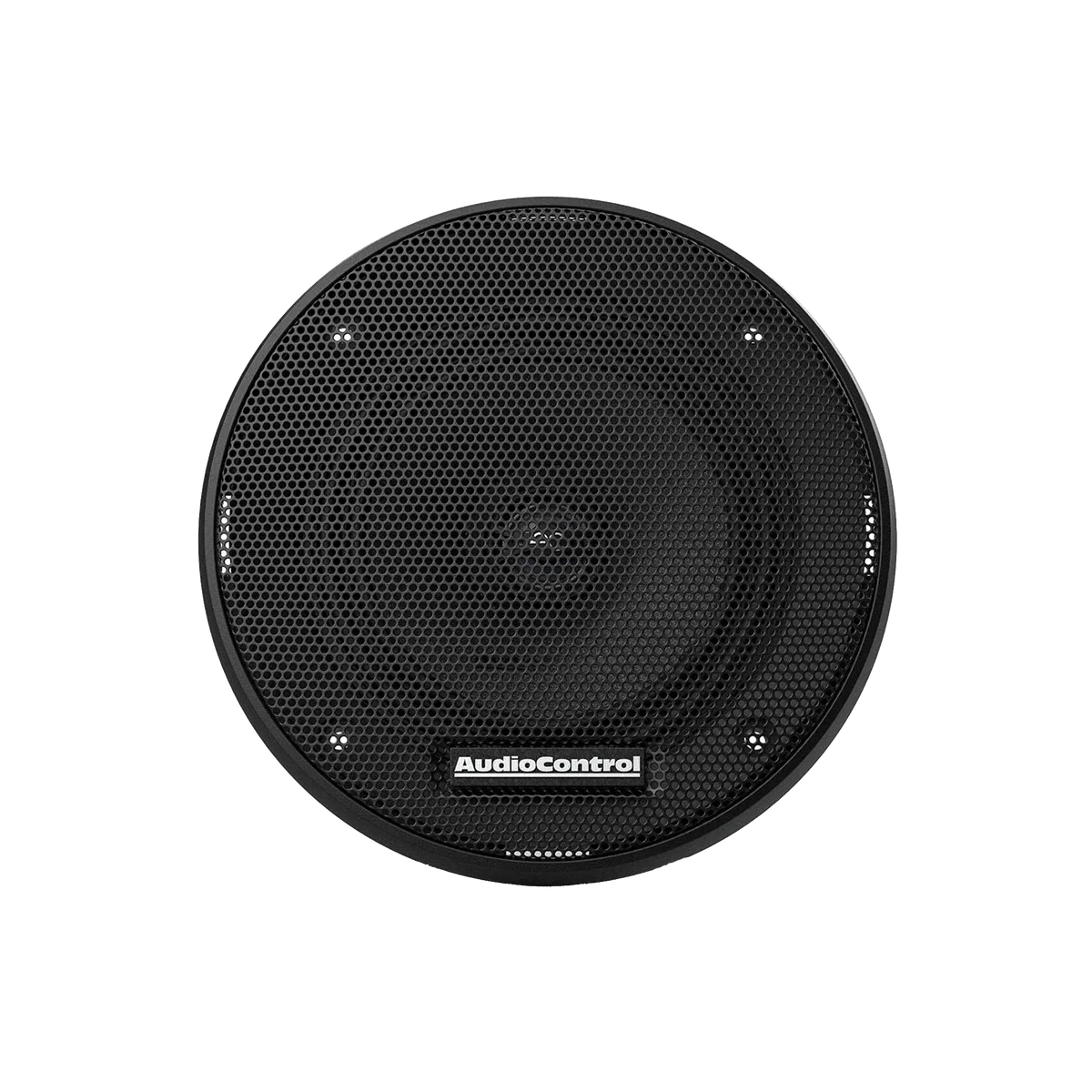

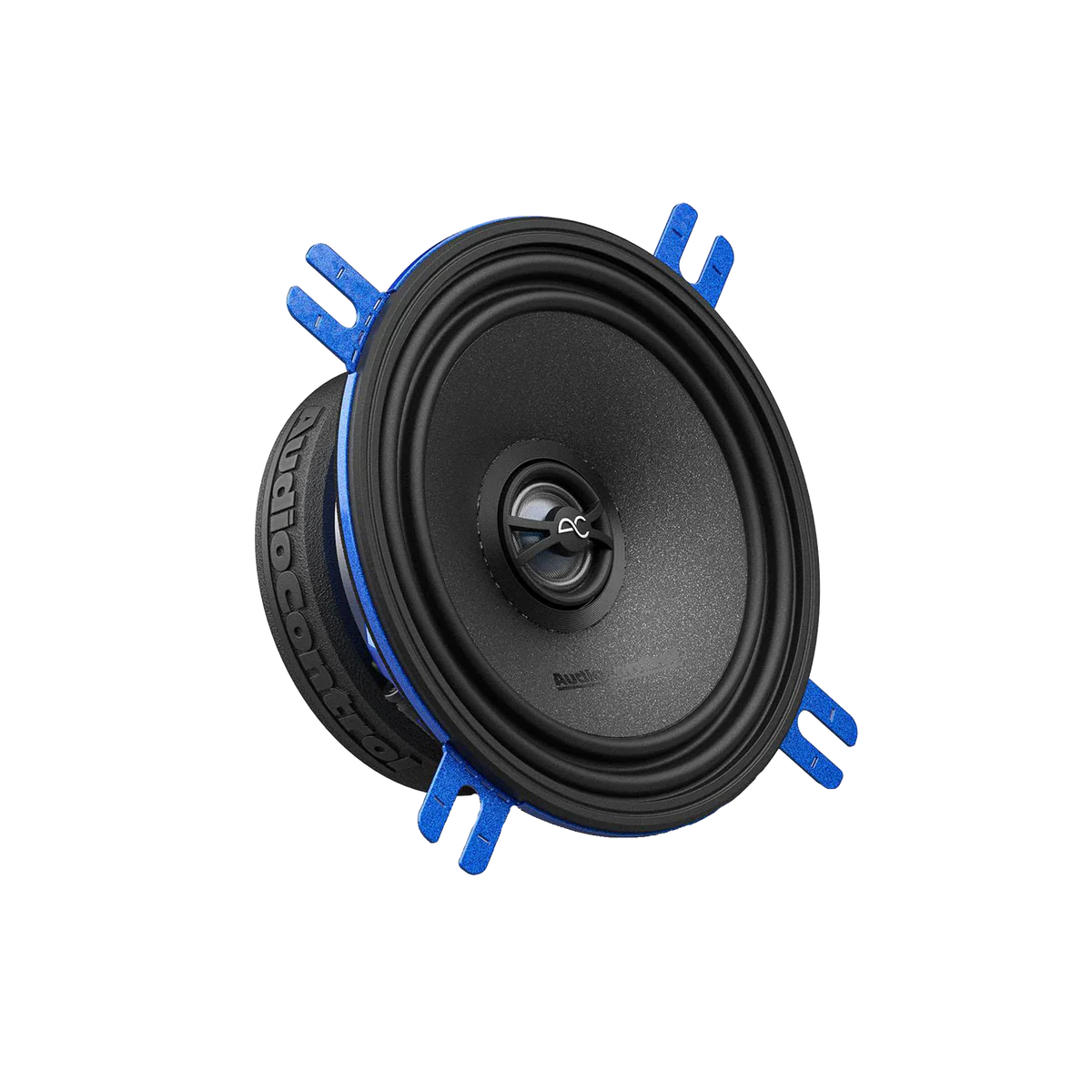

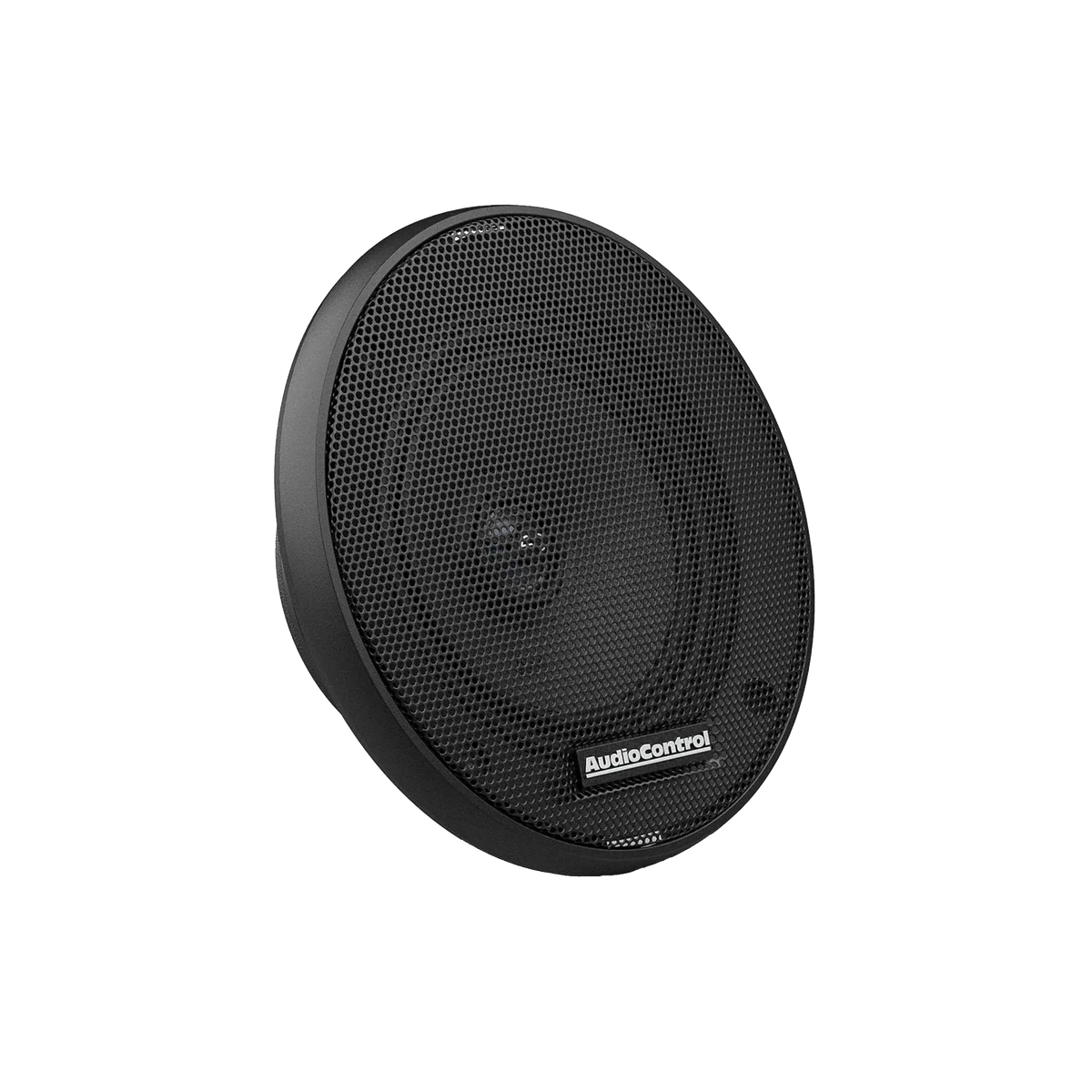

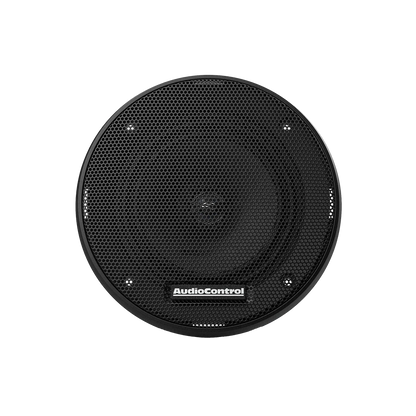

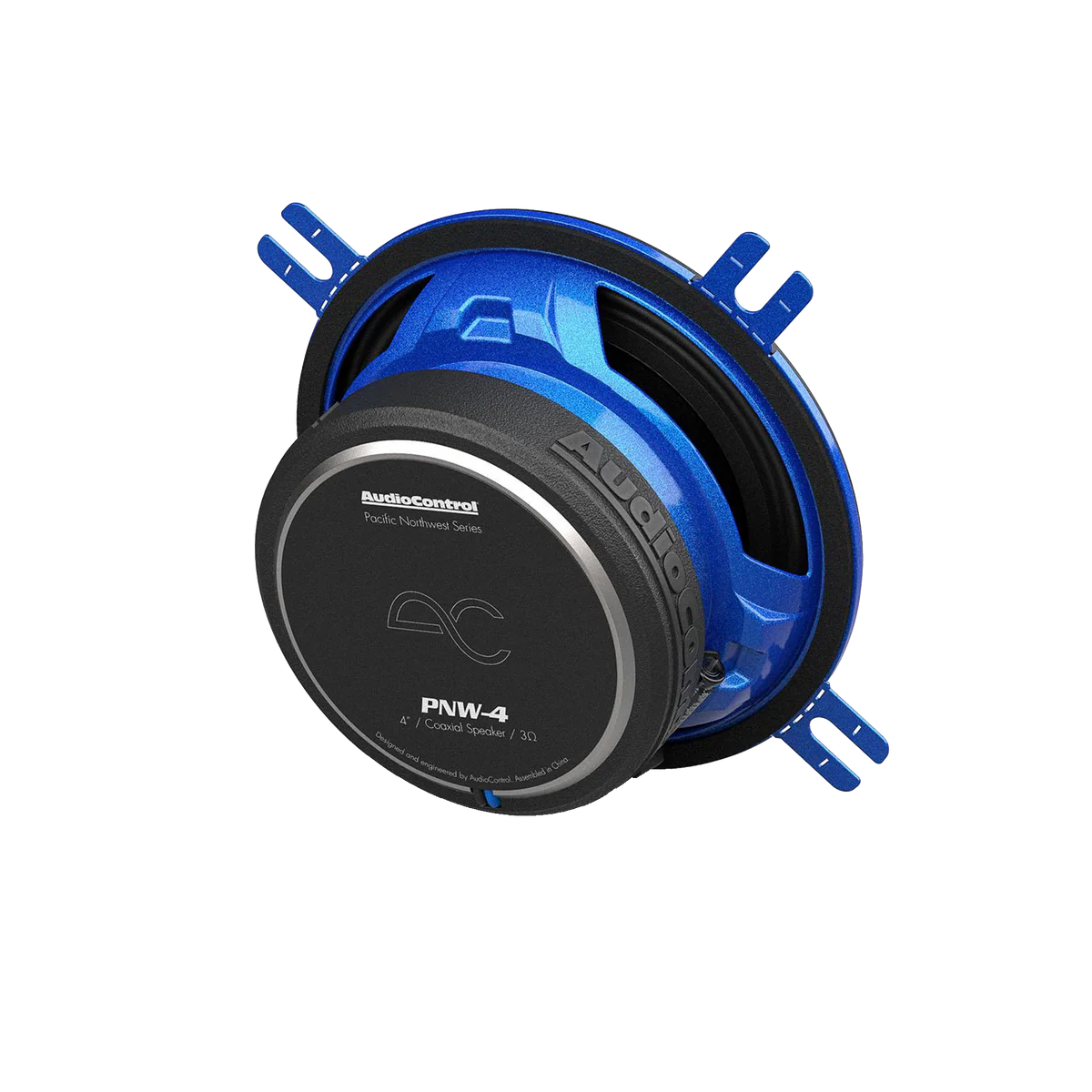

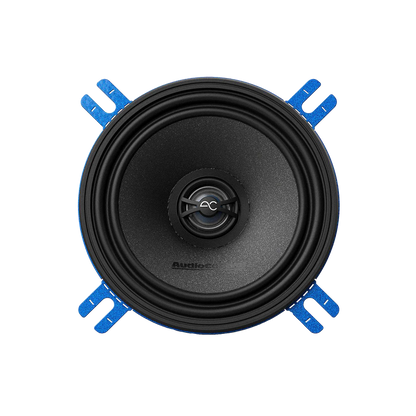

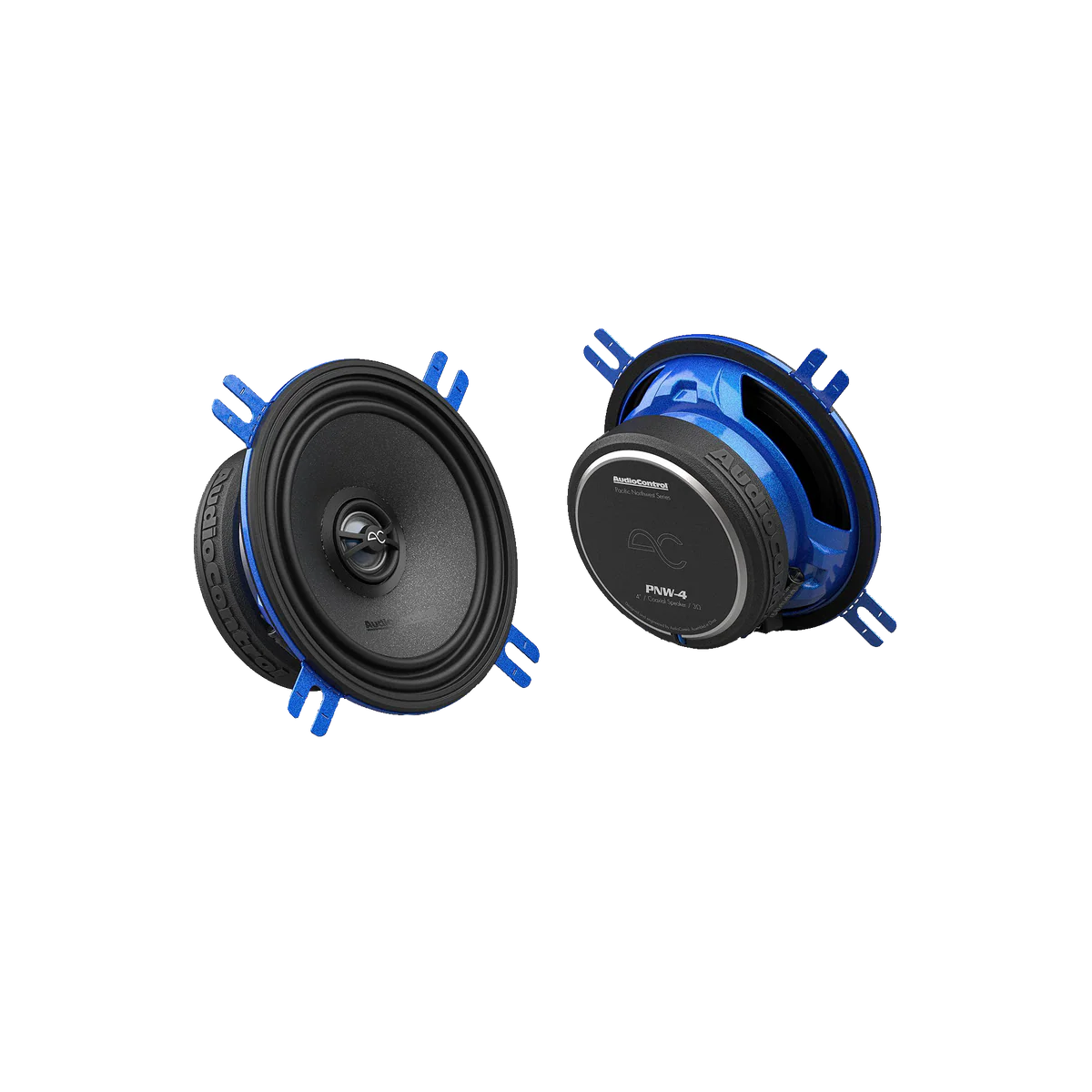

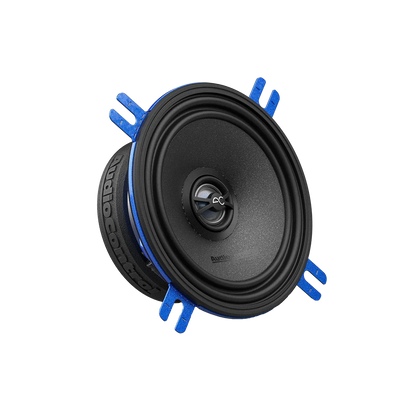

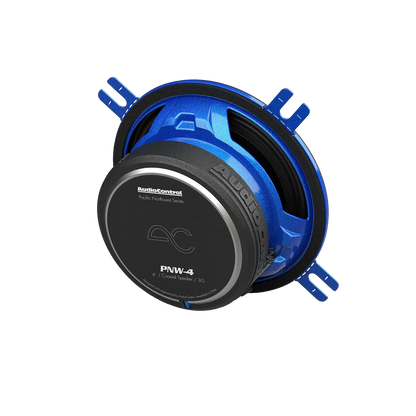

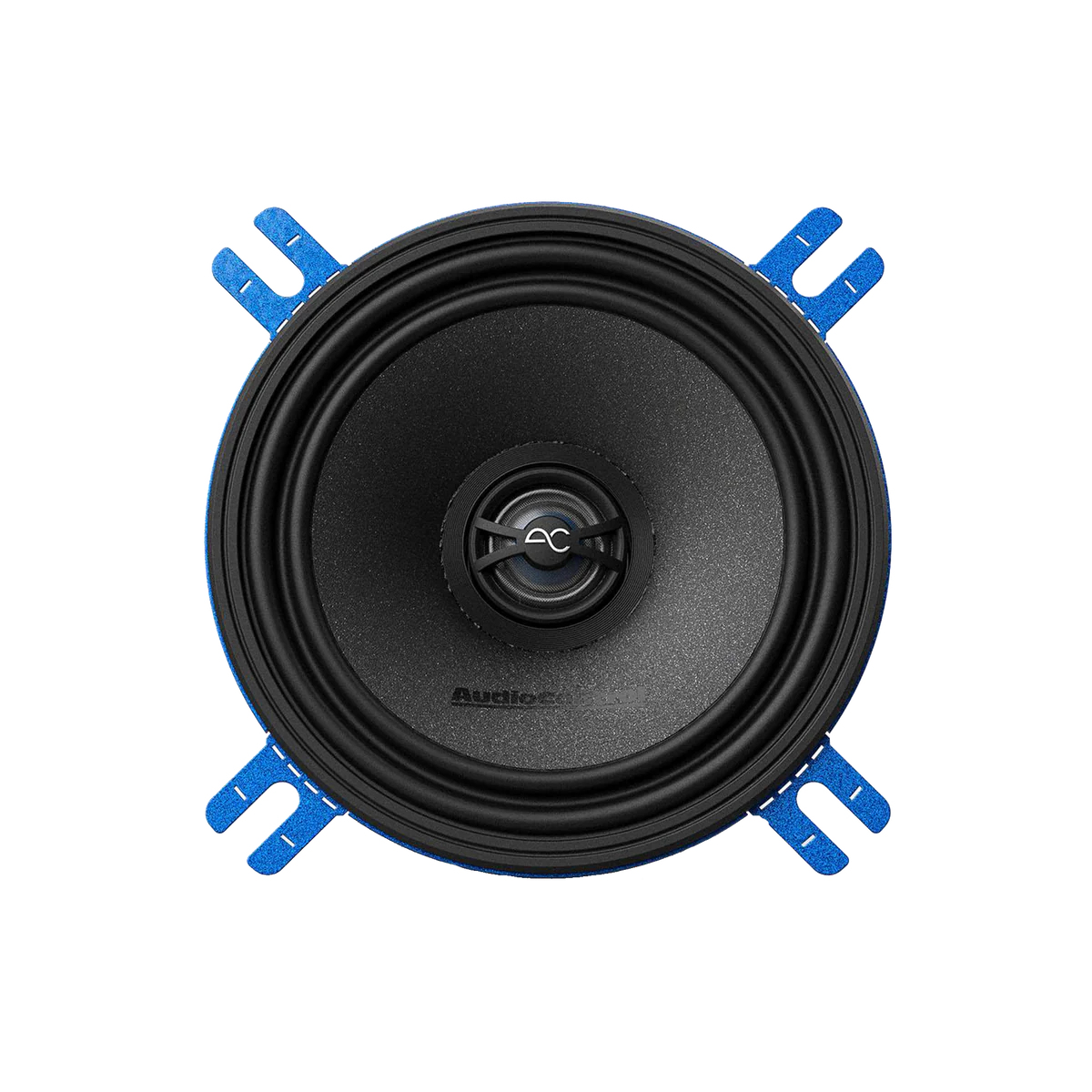

AudioControl PNW-4 PNW Series 4" Coaxial Speakers, 50W RMS, 3 Ohms

AudioControl PNW-4 PNW Series 4" Coaxial Speakers, 50W RMS, 3 Ohms

Features:

  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear double-roll surround for precision cone movement
  • Complex FEA-designed high-efficiency motor
  • Rigid poly mica-coated cone for optimized sound reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • Concentric point source design for a seamless transition from midrange to tweeter
  • Sonic diffuser and radiant collar for better off-axis frequency response
  • High-quality mounting hardware included

Specifications:

  • Crossover Type - Butterworth
  • Power - 50W RMS / 75W Max
  • DC Resistance (Re). - 2.6 ohms
  • Filter Type - HP
  • Frequency Response - 75-20k Hz
  • XO Frequency - 5900 Hz
  • Slope (Octave) - -6 dB
  • Midrange Voice Coil Diameter - 25 mm

IN THE BOX: (2) PNW-4, Manual, Warranty

DIMENSIONS

  • Overall Diameter (w/o Grille): 5.23 in/ 133 mm
  • Cut Out Diameter: 3.60 in/ 91.5 mm
  • Mounting Depth: 1.66 in/ 42.2 mm
  • Height (w/o Grille): 0.16 in / 4.1 mm

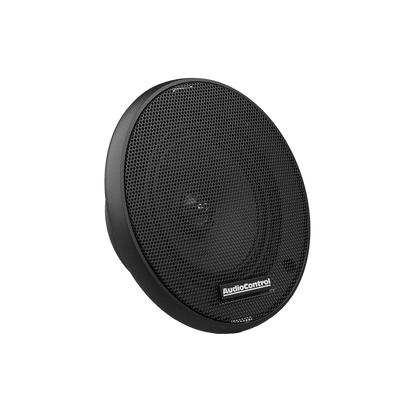

  • Height (w/ Grille): 0.64 in / 16.5 mm
  • Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
  • Grille Overall Diameter: 5.40 in / 137 mm
