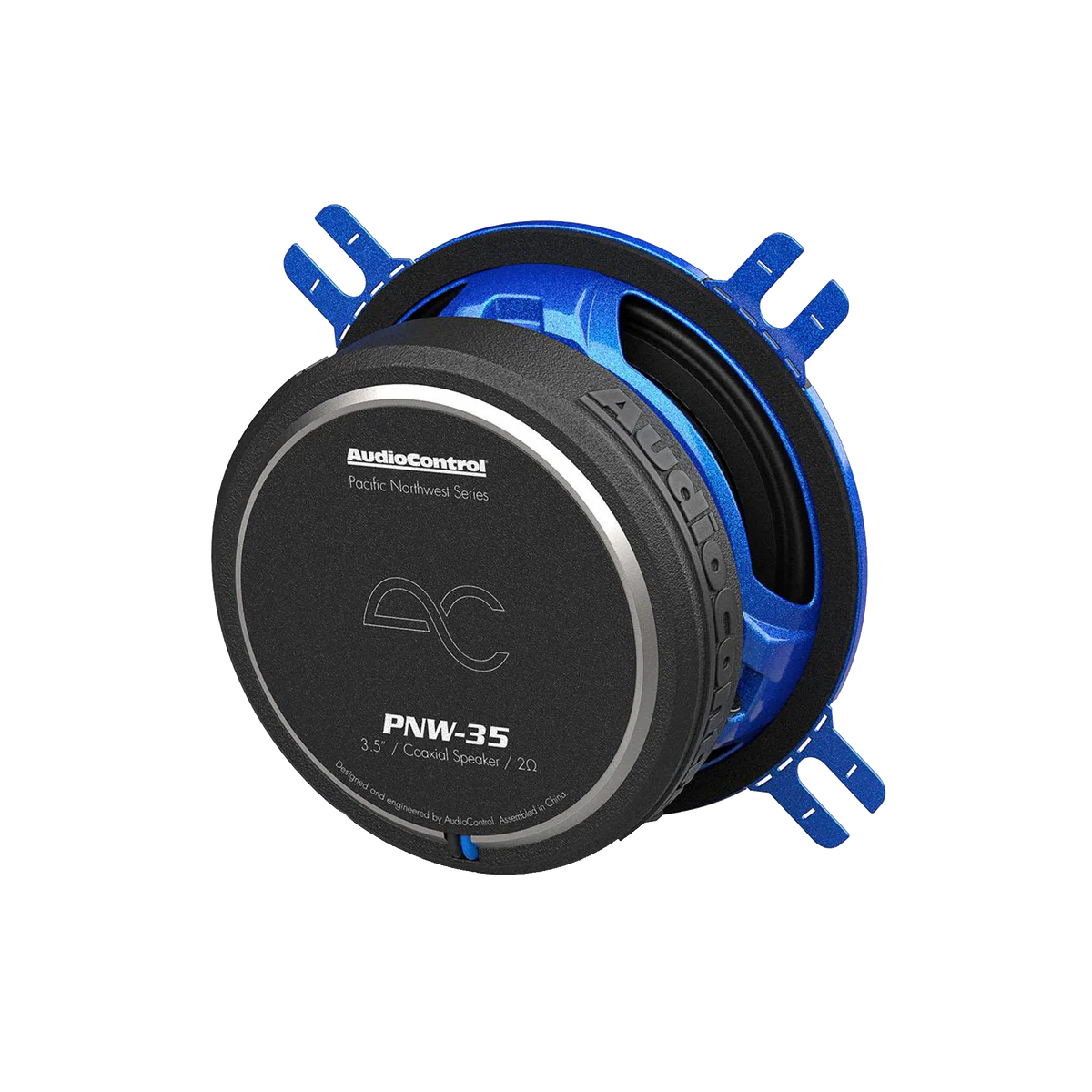

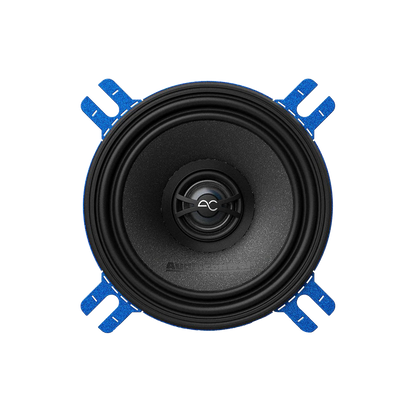

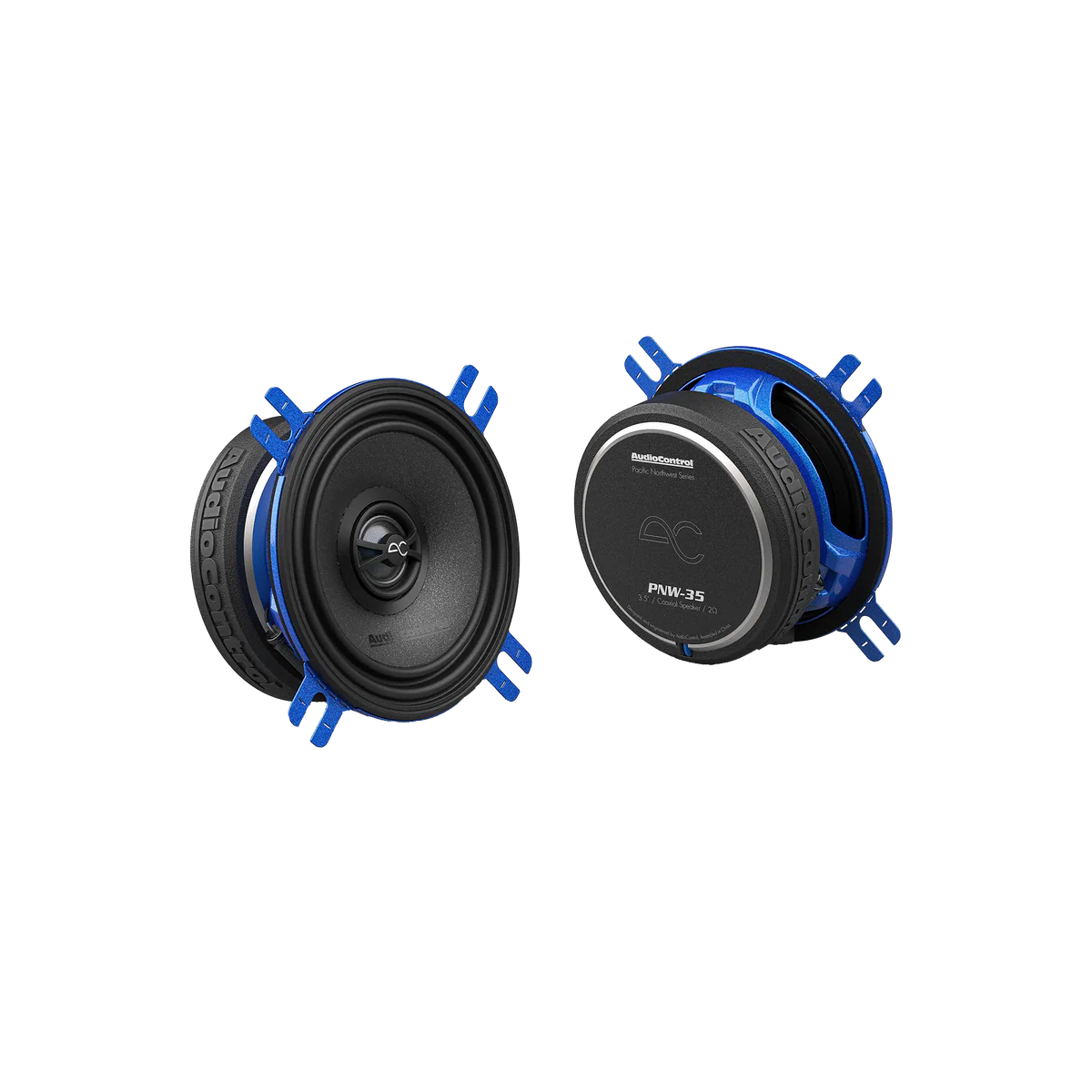

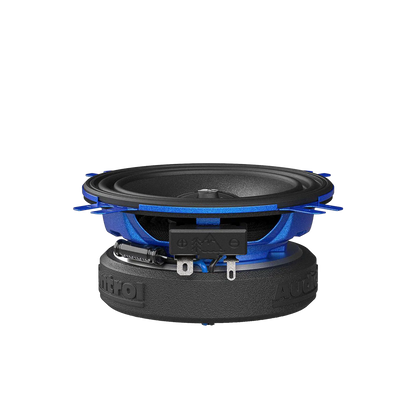

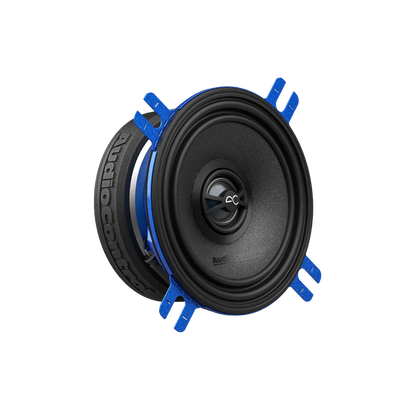

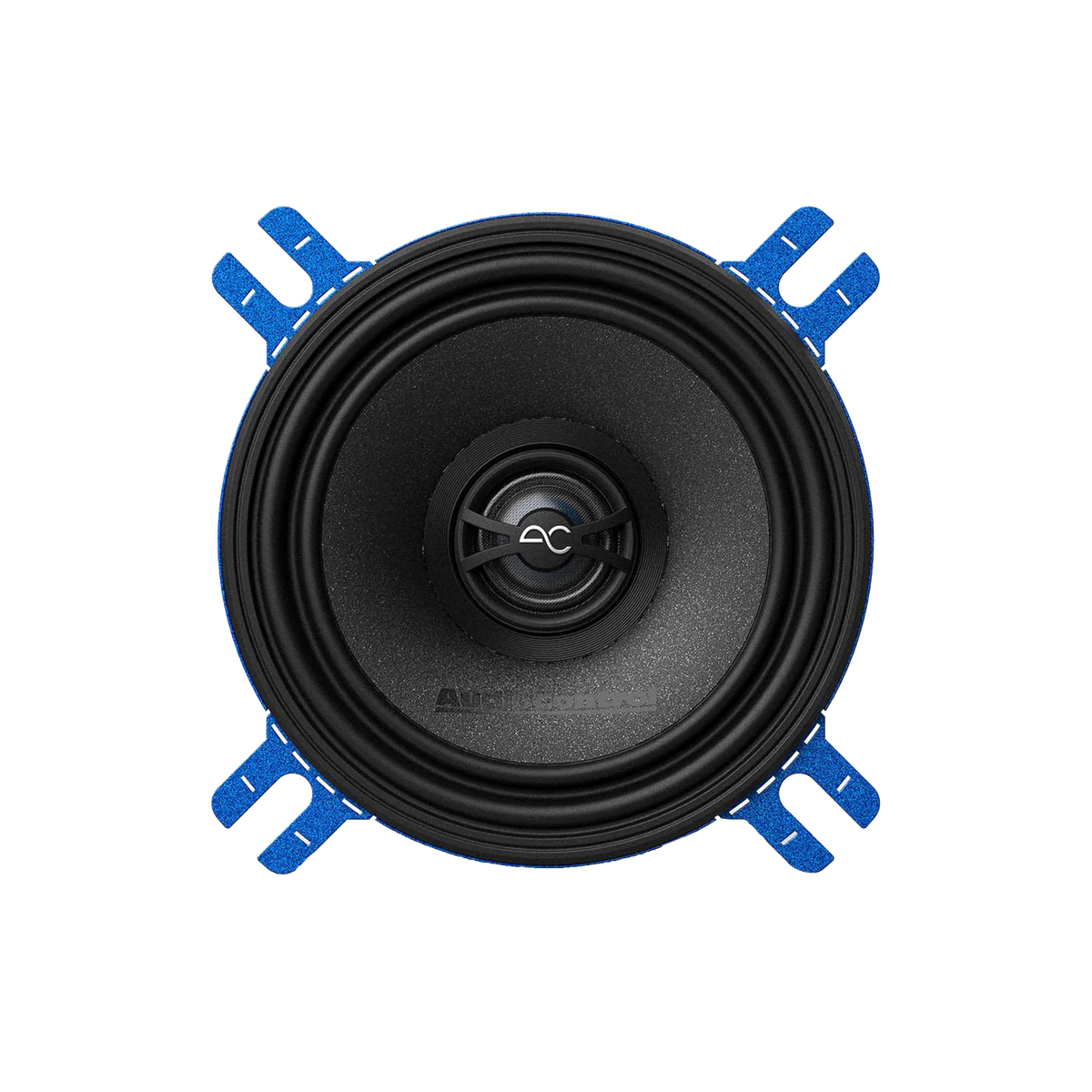

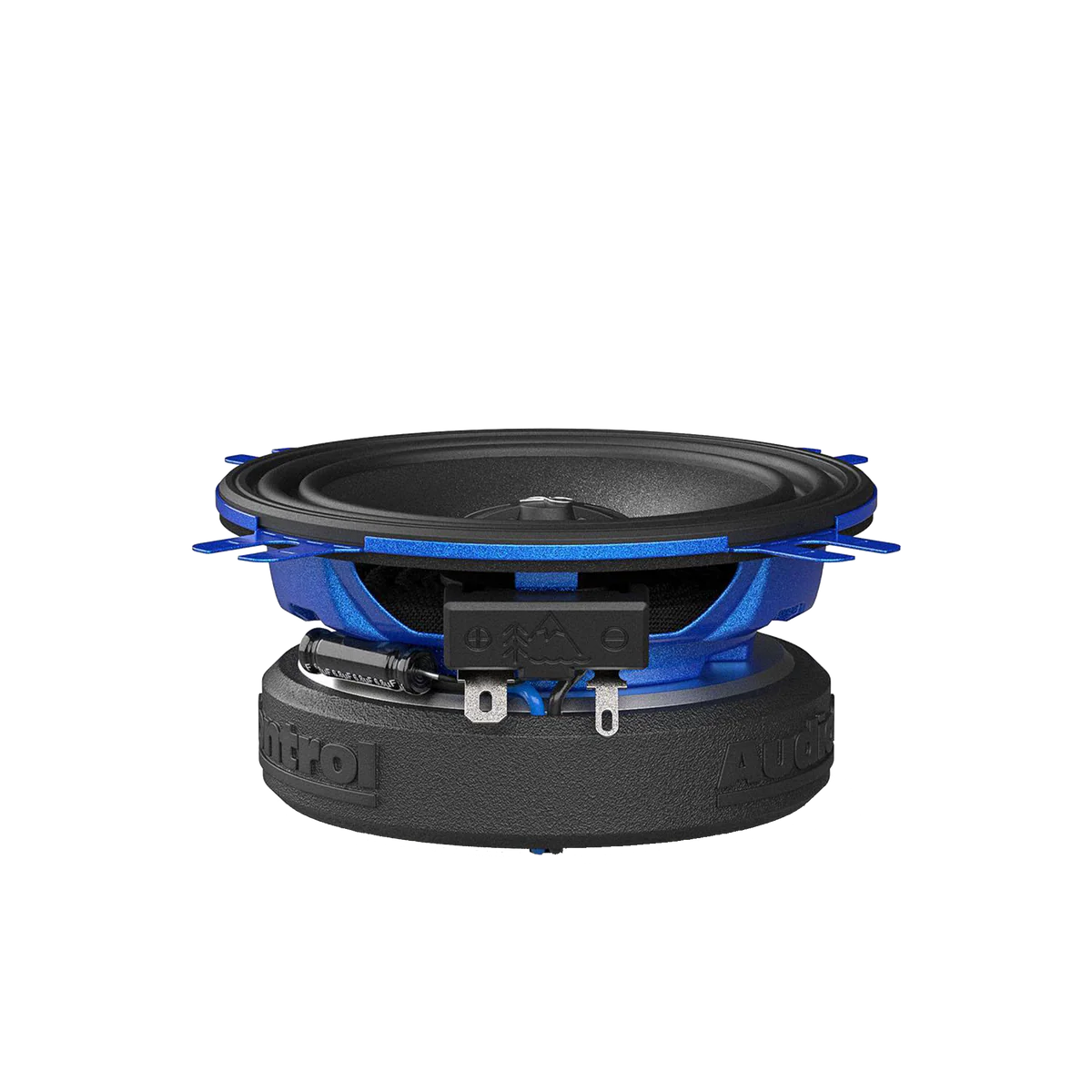

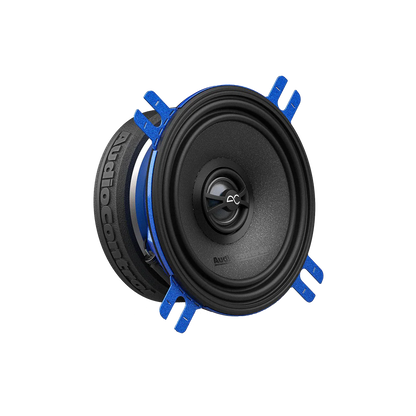

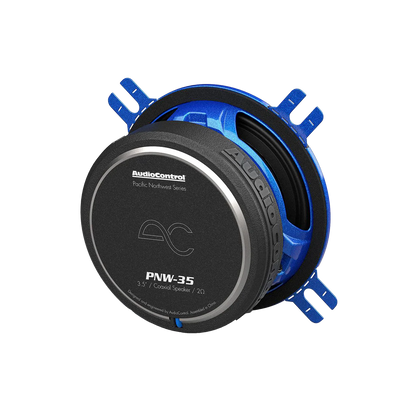

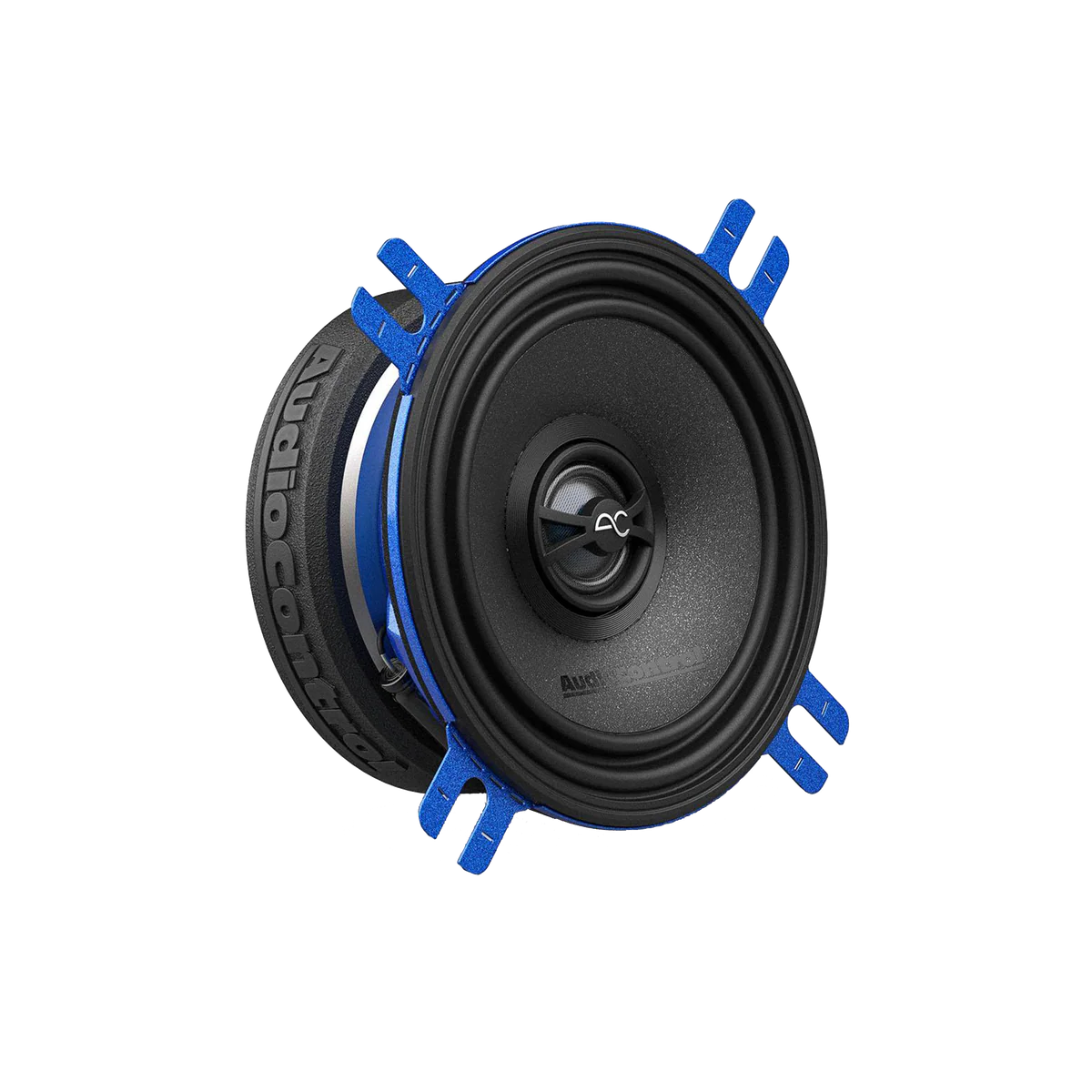

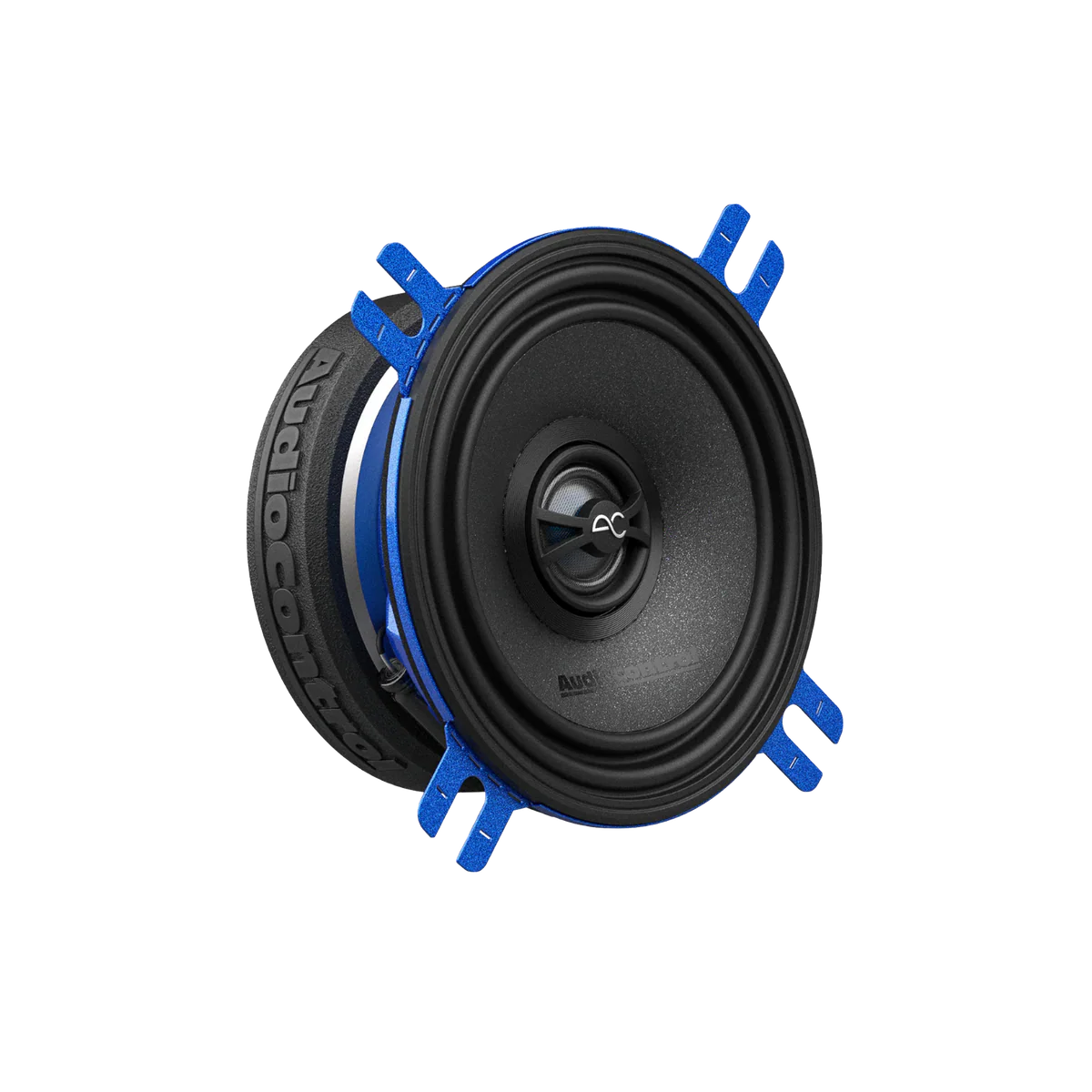

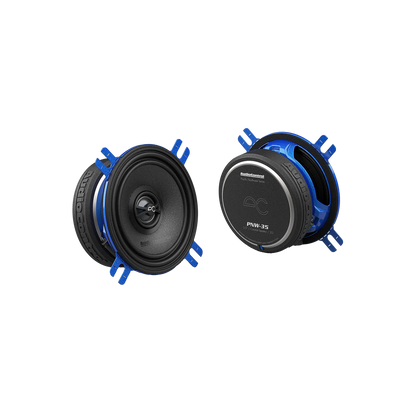

AudioControl PNW-35 PNW Series PNW-35 3.5" Coaxial Speakers, 25W RMS, 2 Ohms (Pair)
AudioControl PNW-35 PNW Series PNW-35 3.5" Coaxial Speakers, 25W RMS, 2 Ohms (Pair)
Highly accurate
AudioControl includes premium mounting hardware to make installation a little easier. An in-line high-pass crossover protects these drivers against low-frequency damage. Whether you're upgrading the speakers in your dash corners or designing a custom 3-way speaker system, these speakers will help bring highly accurate sound reproduction to your vehicle.
Features:
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Specifications:
- Crossover Type - Butterworth
- Power - 25W RMS / 50W Max
- DC Resistance (Re). - 1.75 ohms
- Filter Type - HP
- Frequency Response - 90-20k Hz
- XO Frequency - 5900 Hz
- Slope (Octave) - -6 dB
- Tweeter Voice Coil Diameter - 13 mm
- Midrange Voice Coil Diameter - 25 mm
IN THE BOX: (2) PNW-35, Manual, Warranty
DIMENSIONS
- Overall Diameter (w/ metal bracket): 4,44 in/ 113 mm
- Cut Out Diameter: 3.0 in/ 76.5 mm
- Mounting Depth: 1.55 in/ 39.5 mm
- Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
No Speaker Grille Applicable for PNW-35
