Little giants

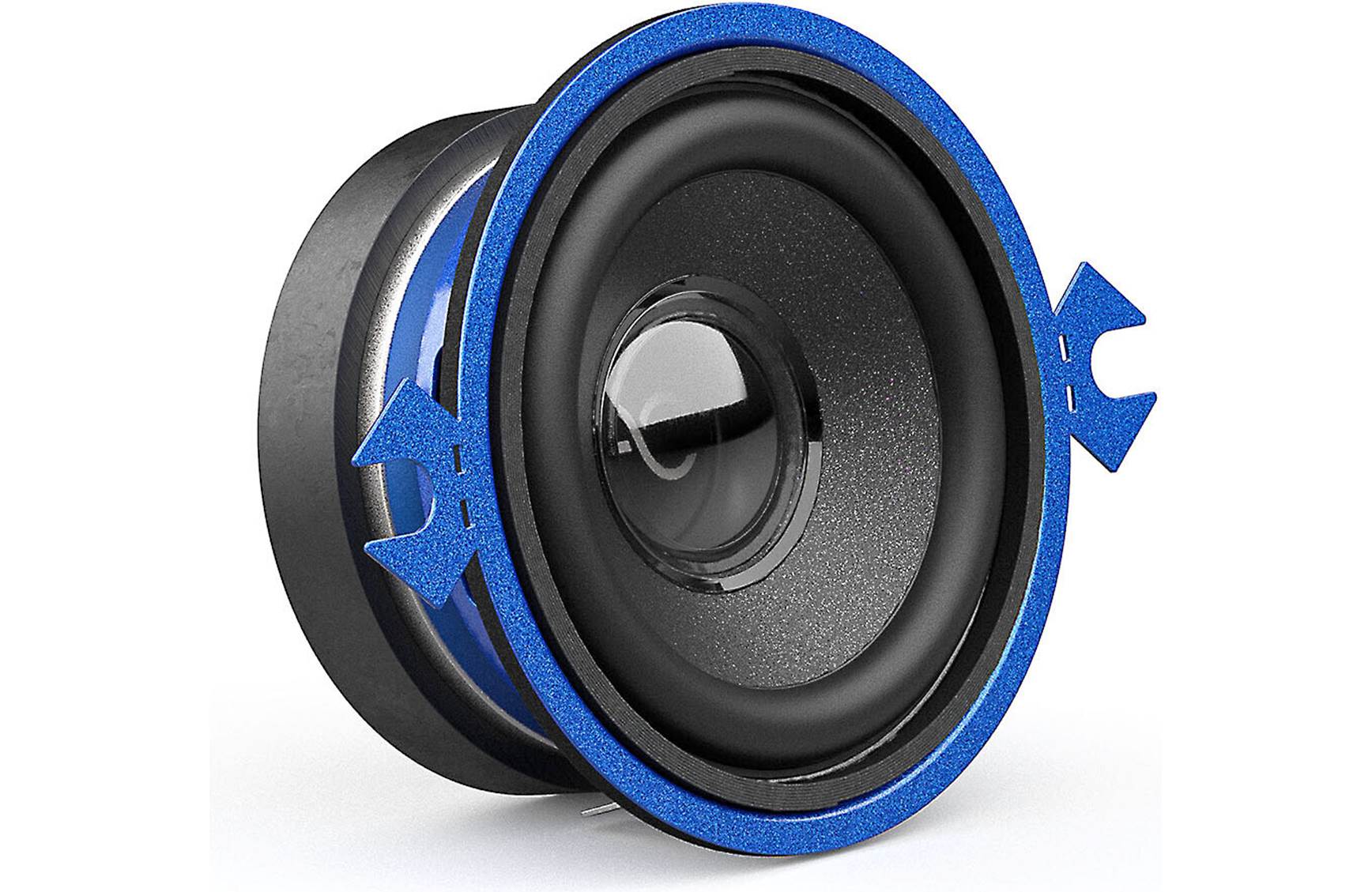

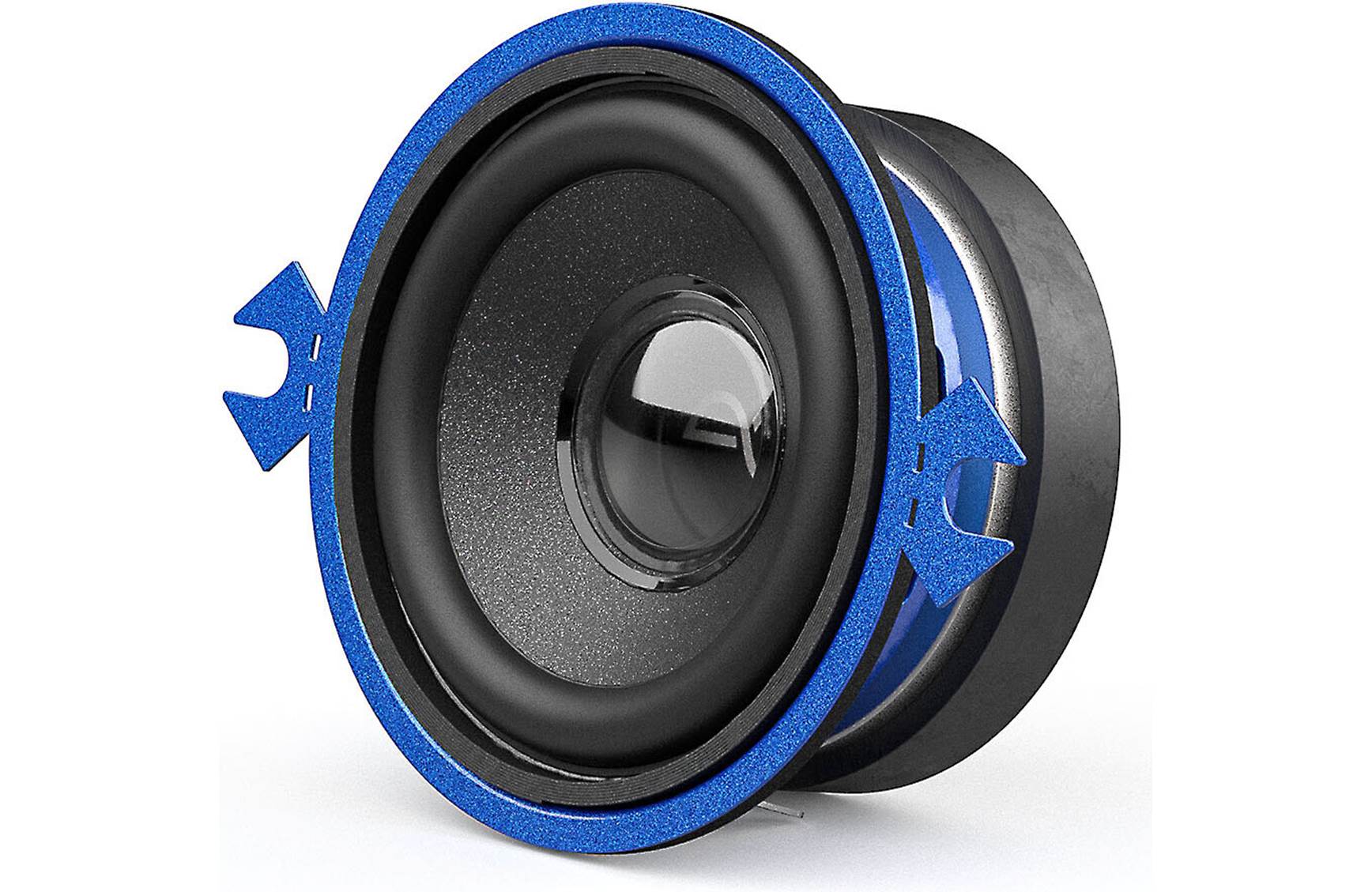

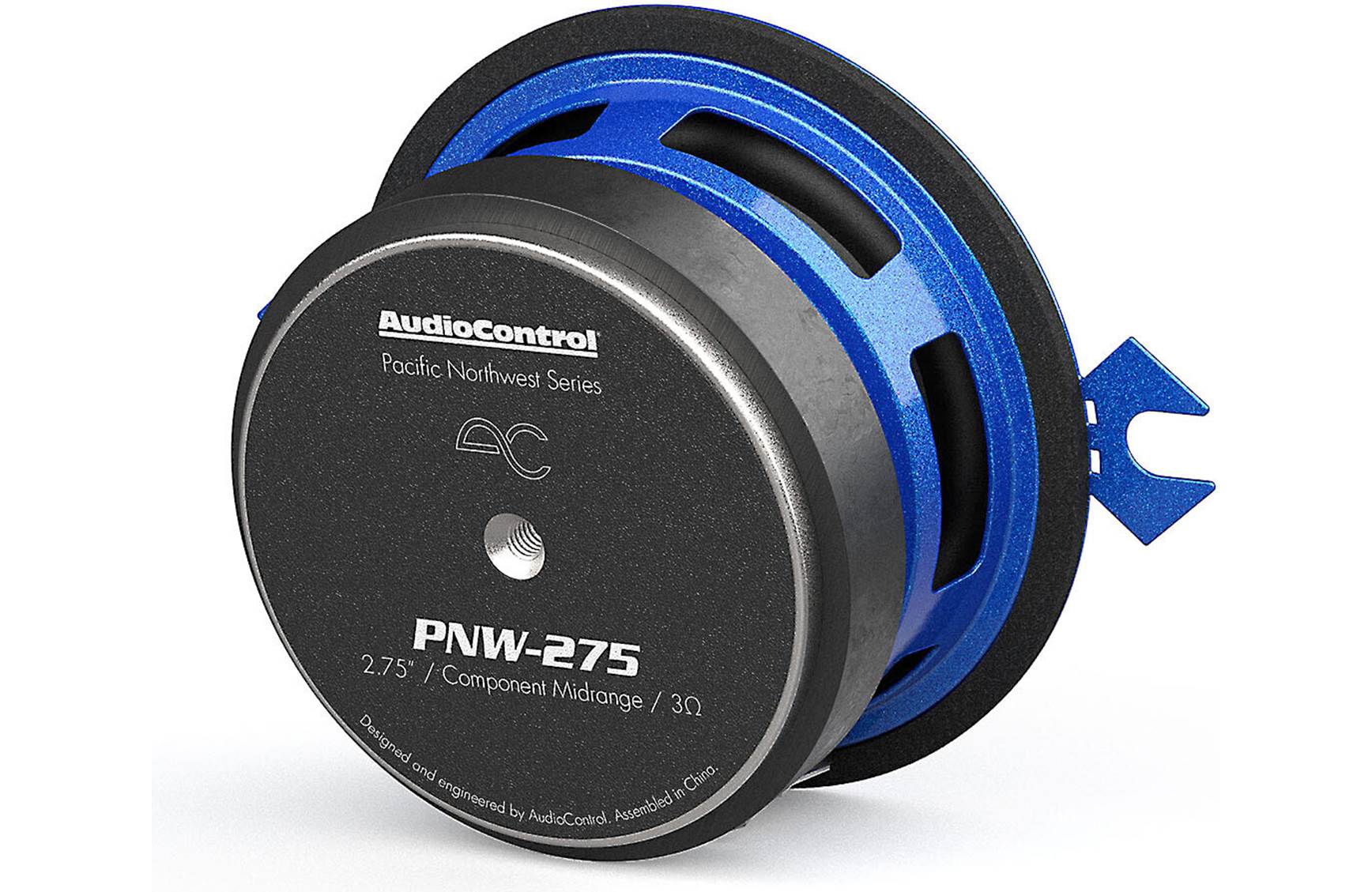

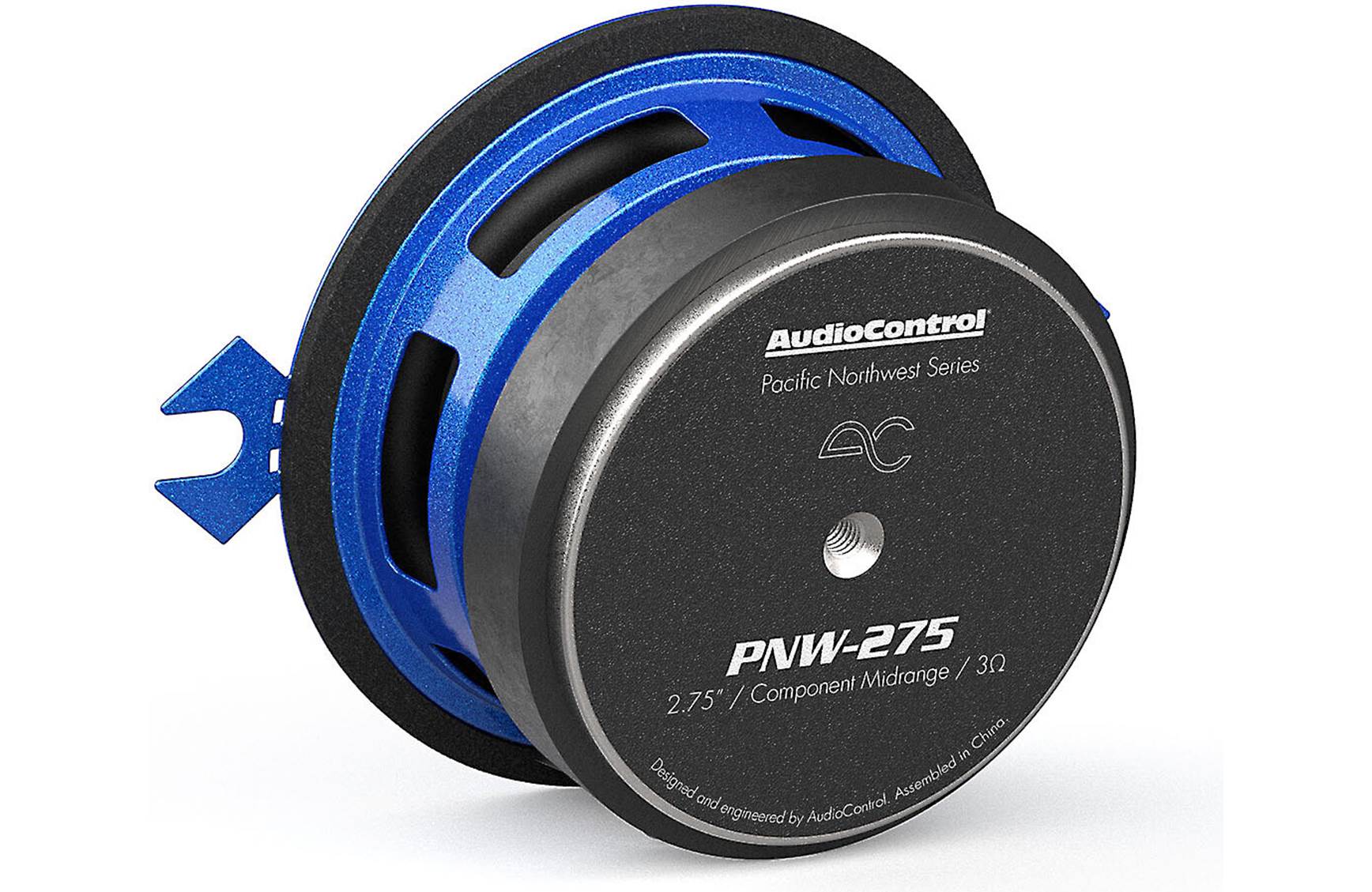

AudioControl brings over 45 years of car audio experience to creating their lineup of PNW-Series component speakers. Their PNW-275 component midrange speakers offer a high-fidelity alternative to the inexpensive 2-3/4" speakers found in the dash corners of many modern vehicles. These speakers handle up to 25 watts RMS, while their 3-ohm impedance draws a little extra power out of your amplifier.
Product highlights:

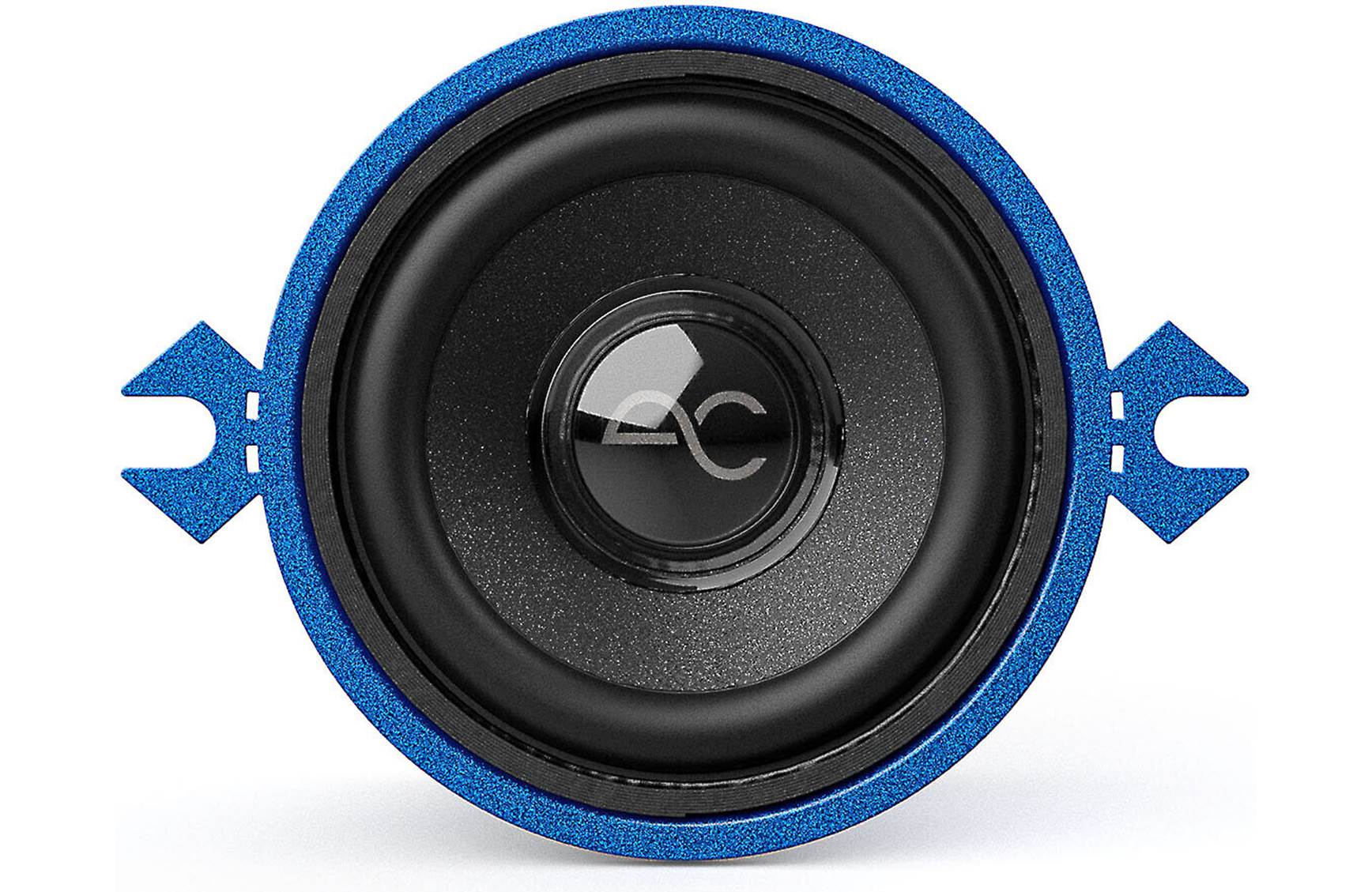

- 2-3/4" midrange speakers
- paper fiber cone with mica coating and rubber surround

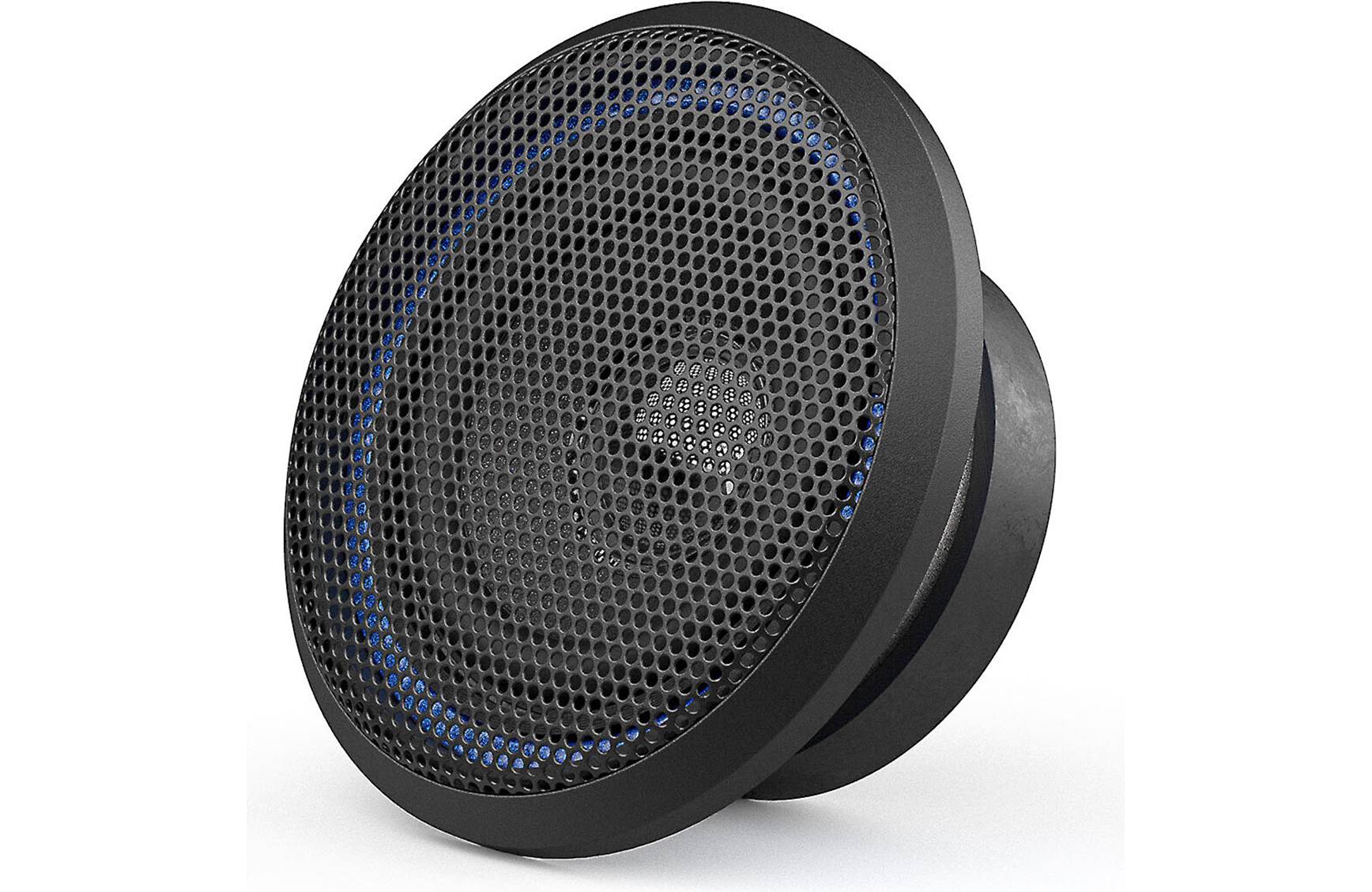

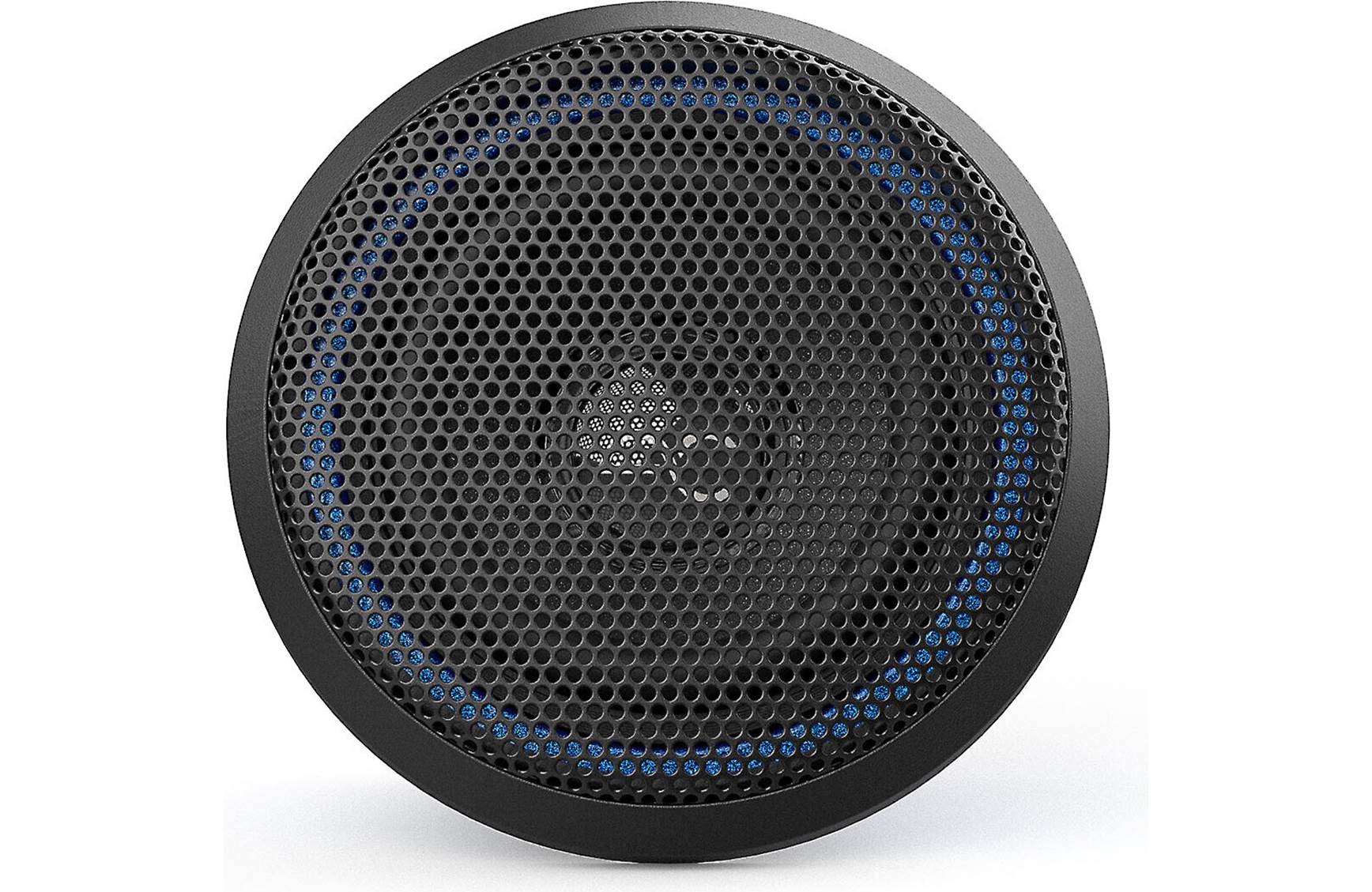

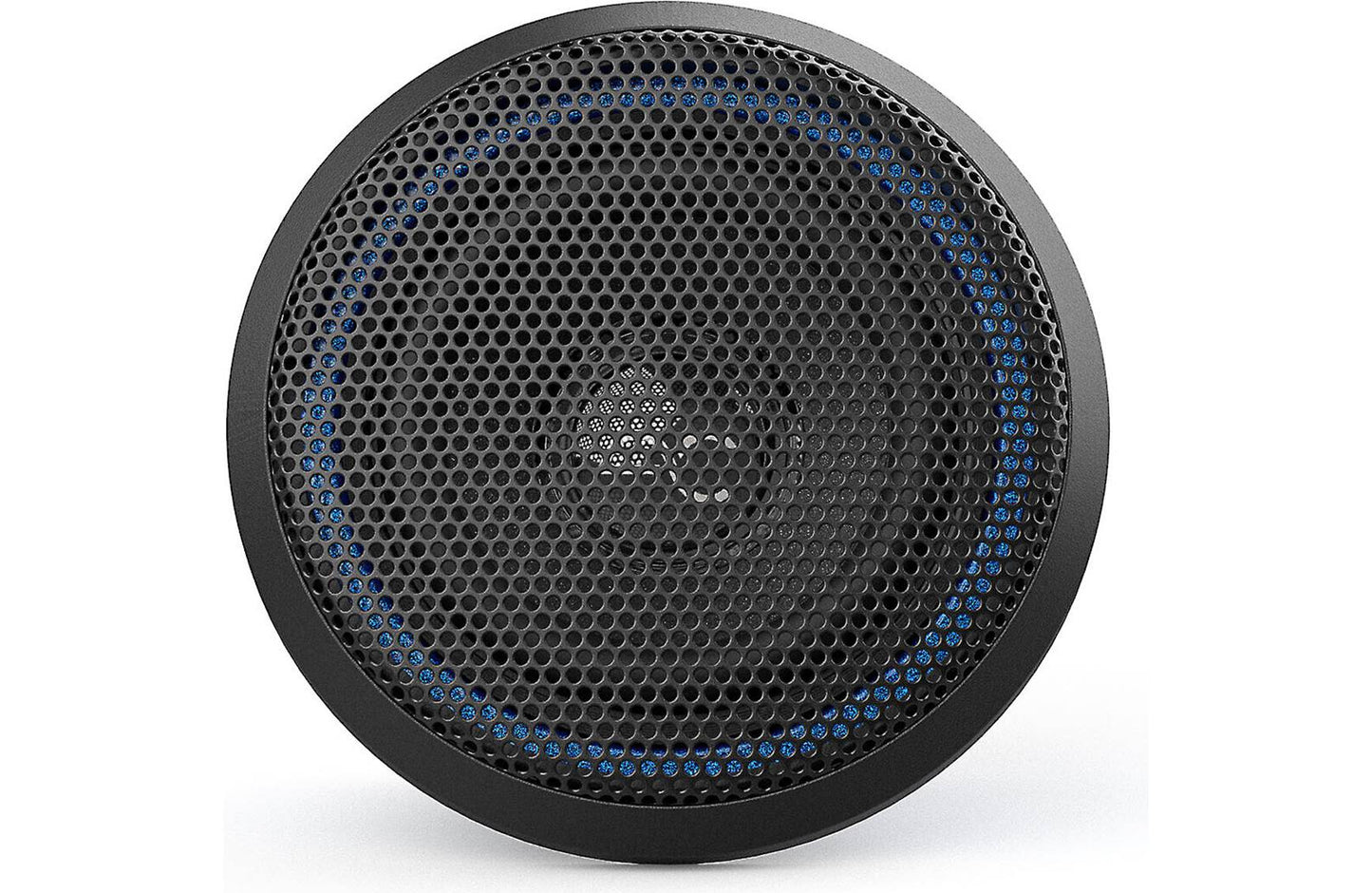

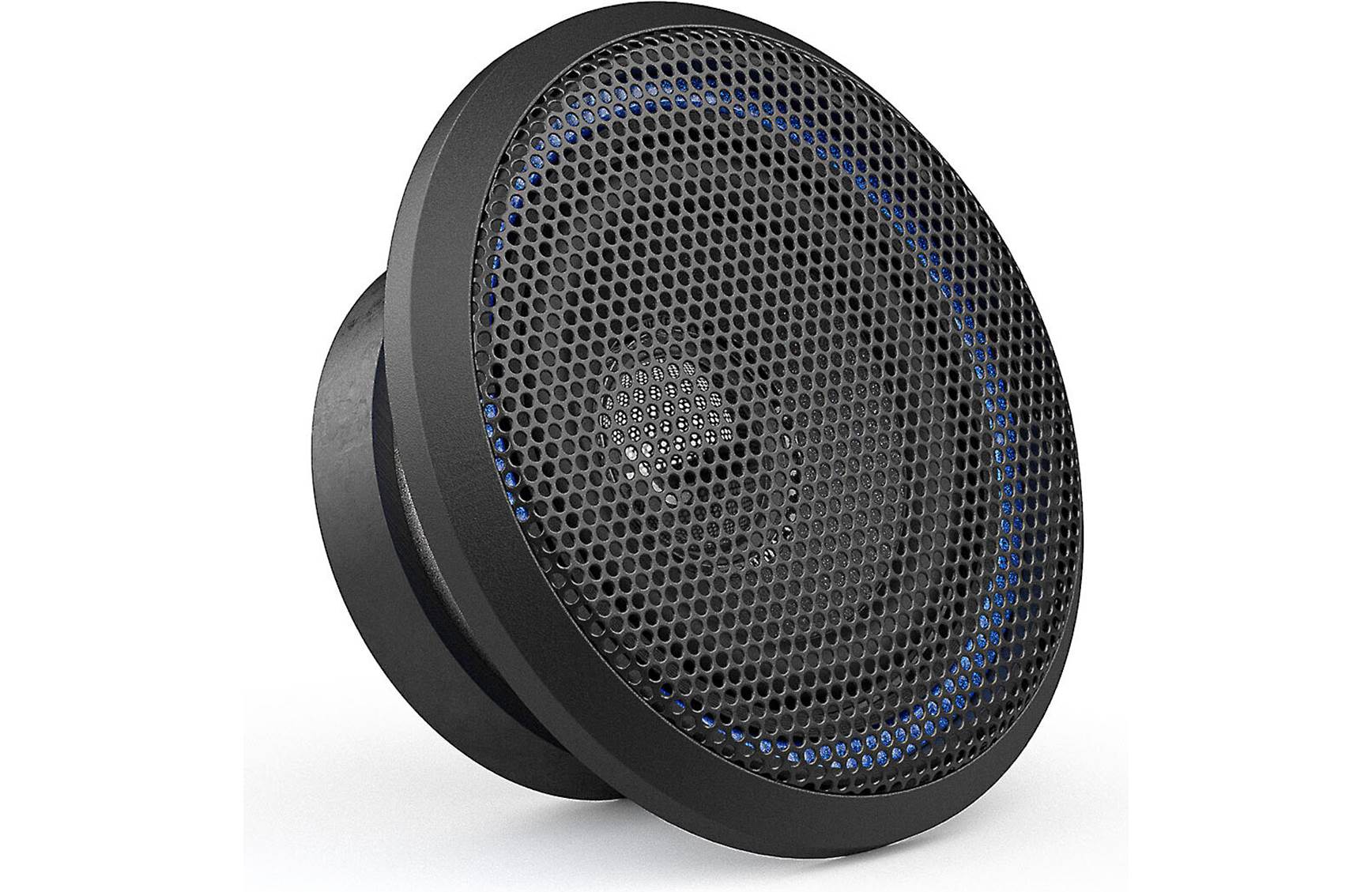

- mounting hardware and black steel mesh grilles included
- in-line high-pass crossover (250 Hz at 6 dB per octave)
- double-roll surround for precise cone movement

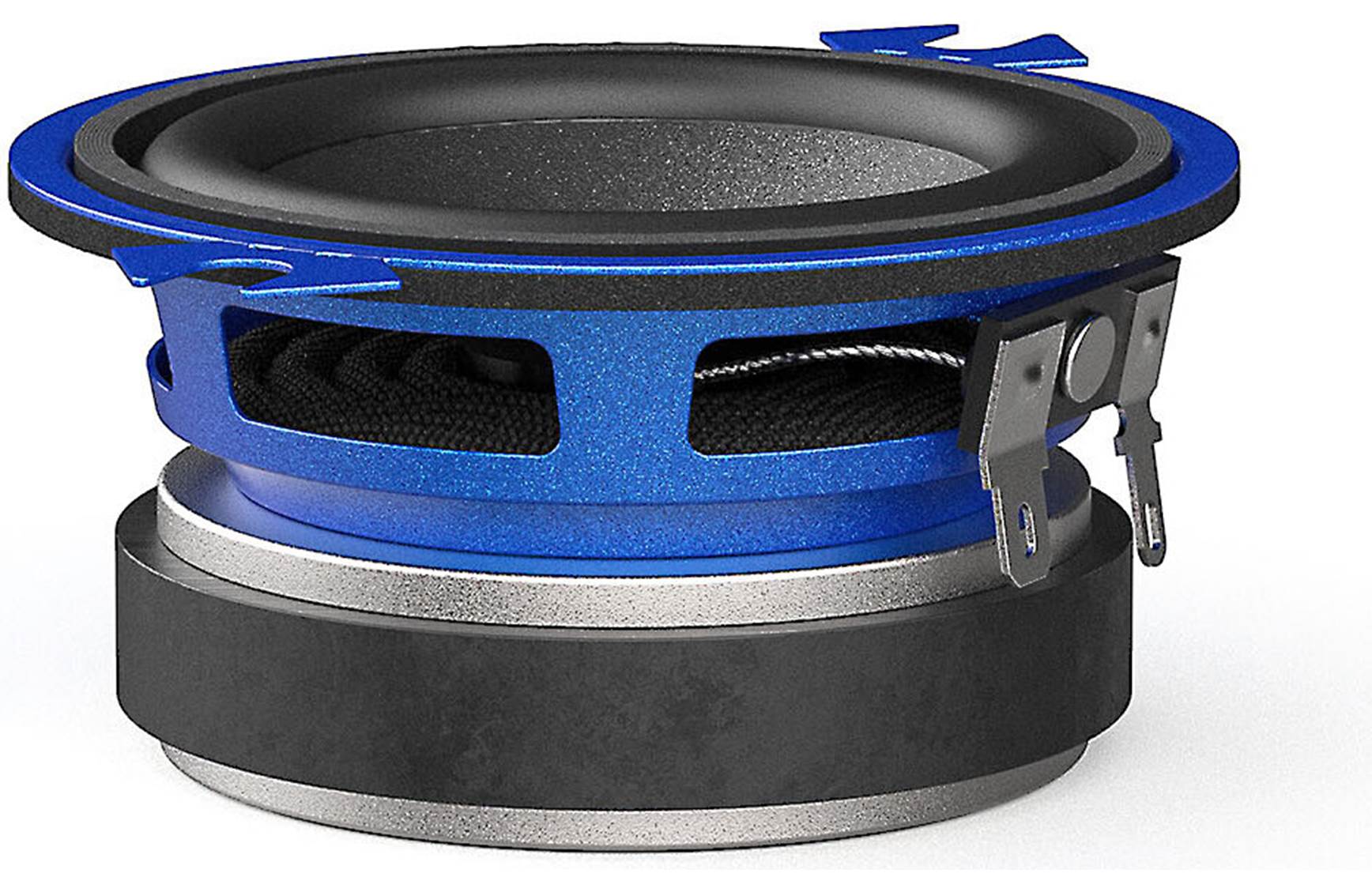

- edge-enhanced steel frame
Specs:
- handles up to 25 watts RMS (50 watts peak power)
- impedance: 3 ohms
- frequency response: 100-20,000 Hz
- sensitivity: 85.1 dB
- recommended frequency range: 200-4,000 Hz
- cutout diameter: 2.45 inches
- mounting depth: 1.35 inches
- warranty: 2 years

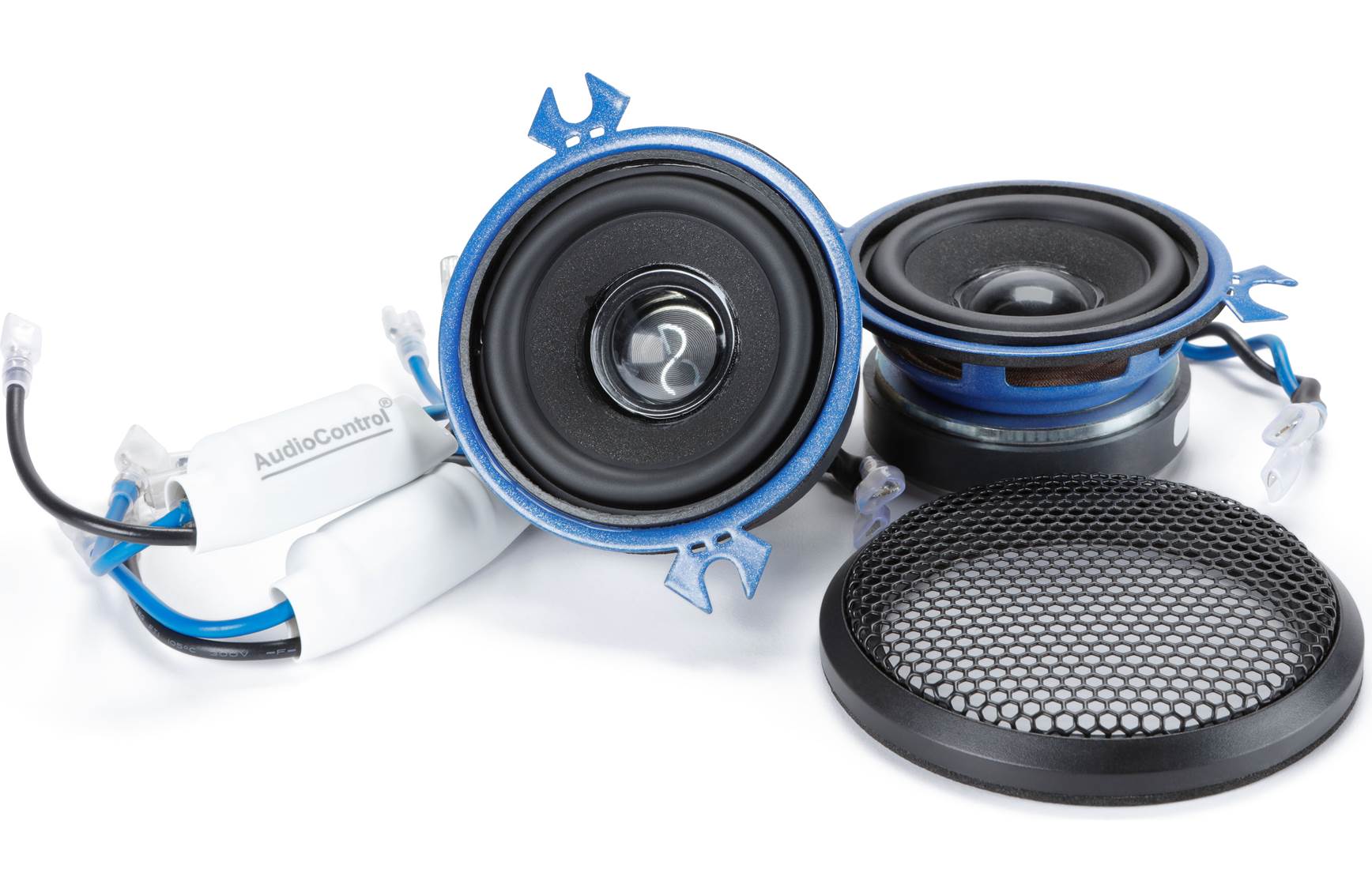

What's in the box:
- AudioControl PNW-275 owner's manual
- Two midrange speakers
- 2 Grilles
- 2 Grille frames
- 2 in-line crossovers
- 2 Flush mount brackets
- Four 1" Screws (2.5mm Allen head)
- Two M4x8mm Machine screws (2.5mm Allen head)
- 6 Flat washers
- 4 Speed clips
- User guide
- Template
