AudioControl LC7iPRO Line Output Converter 6-channel LOC with AccuBASS®

Upgrade the factory audio — keep all the cool features

A great way to upgrade your vehicle's sound system is to add aftermarket amplifiers and speakers that will improve your music's impact and enjoyment while leaving the factory audio system's convenient interface controls, signal routing, and automatic settings features intact and operating properly. AudioControl's LC7iPRO 6-channel line output converter does this by using the vehicle's processed output signals for its inputs, so you can enjoy better and more powerful sound without losing climate controls, voice-activated functions, hands-free calling, or other built-in factory features.

High-power signal-mixing

The LC7iPRO accepts 6 channels of speaker-level signals, up to 400 watts per channel, so you can use it with just about any setup, even high-powered amplified factory systems. Load selection switches make OEM integration easier, so the LC7iPRO will work in almost any system. Selectable turn-on modes include GTO™ Signal Sense (DC offset), audio sense, or remote 12-volt input. You can add together, "sum" the LC7iPRO's input signals, even if they've been crossed over for tweeters, mids, and subs by the factory system, to create strong, smooth, full-range signals for your amplifiers, speakers, and subwoofers to handle.

Restores bass

Many factory radios dial down the bass as you turn up the volume to protect the flimsy factory speakers. AudioControl packs the LC7iPRO with their AccuBASS™ circuitry that reverses the factory low-frequency roll-off, giving you the low subwoofer thump you need to enjoy your music to the fullest.

Installation conveniences

Individual level controls let you balance the LC7iPRO's output channel volumes for the best-sounding mix. Indicator lights let you know when each channel is at its maximum level. The included dash-mount wired remote control allows you to adjust the level of your subwoofer from the driver's seat.

Product highlights:

• 6-channel line output converter with AccuBASS™ bass restoration
• 3 stereo (6 total) speaker-level inputs
  • can handle up to 40V/400W each
• selectable load impedances for factory radio integration
• switchable channel summing for full-range signals
• level-matching controls with maximized indicator LEDs
• 3 stereo (6 total) preamp outputs (up to 9.5Vrms)

Other Features:

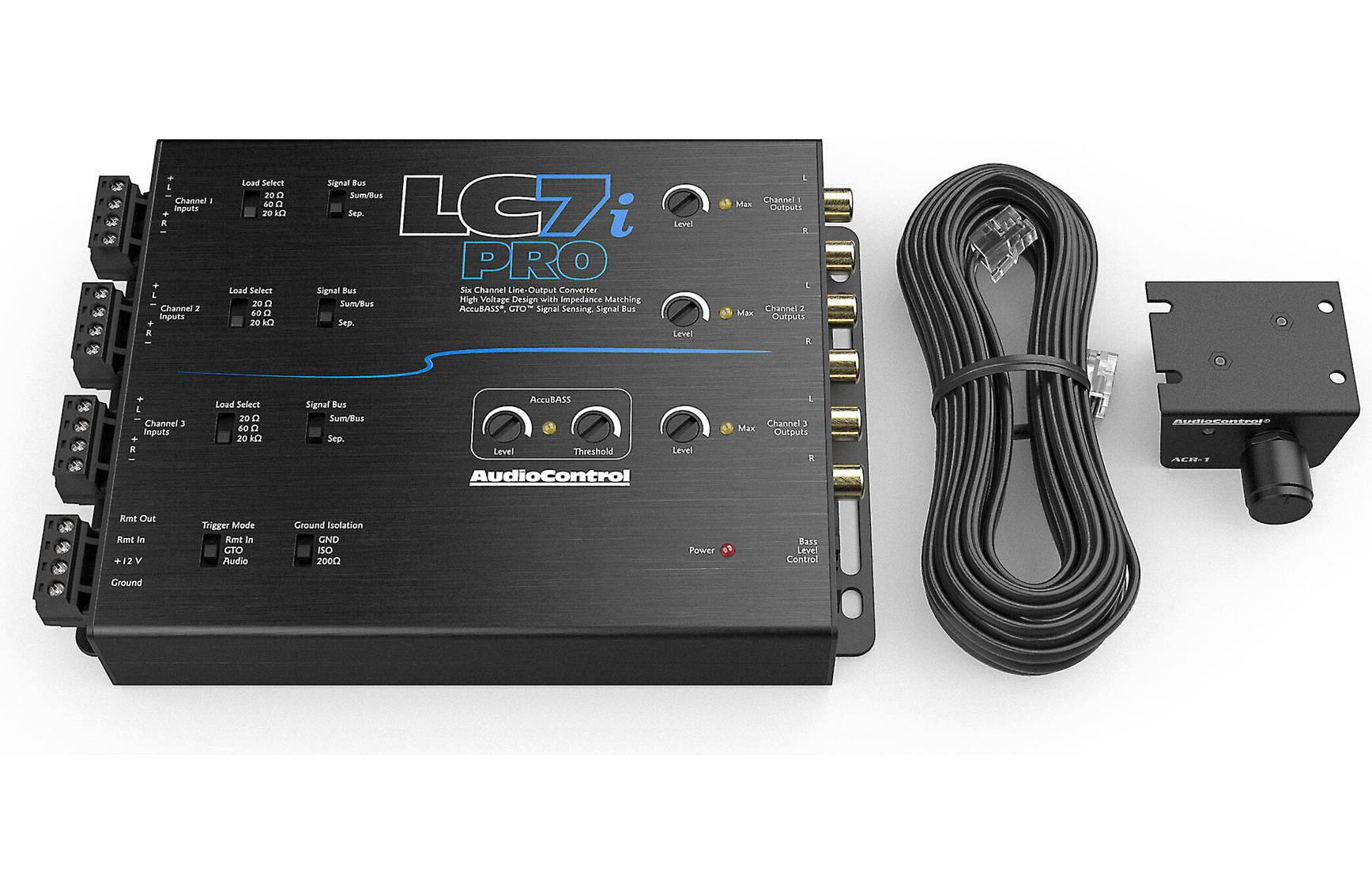

• ACR-1 wired remote subwoofer level controller included
• GTO™ signal-sensing turn on
• 12-volt remote turn-on lead output
• switchable ground isolation
• recommended fuse rating: 2A
• 7"W x 1.175"H x 5.133"D
• warranty: 5 years
