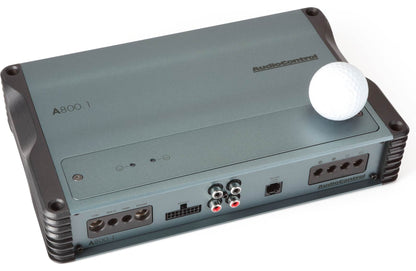

AudioControl A800.1 Altitude Series mono subwoofer amplifier (800 watts RMS x 1 at 1.33 ohms)

Flying high in first class

AudioControl's Altitude A800.1 mono subwoofer amplifier's sleek anodized aluminum chassis protects the precision high-spec electronic components inside and provides high-temperature thermal dispersion through its stylish cooling fins. AudioControl designed this Altitude amplifier to power the subwoofer system in almost any vehicle — including some vehicles with stop-start electrical systems.

Performance

The A800.1 can power a single 4-ohm sub with 400 watts RMS, for those who want to add some bass-fill to their overall sound. For a 2-ohm sub setup, the amp'll put out 600 watts, so you'll hear and feel all the fine details of the bass clearly when you're on the go. Adjustable low-pass and subsonic crossovers plus a parametric-style bass boost help achieve perfect bass tone. In Spike Mode, the amp can handle three 4-ohm subs, wired together in parallel to equal a 1.33-ohm load, and send them a total of 800 watts, over 260 watts per sub. An optional wired remote bass knob lets you control the sub level from your front seat.

Volume-level security

The A800.1 has a Valet Mode feature that limits the amp's volume to 25% of its maximum when you engage it with your custom-installed switch (not included) — so parking lot attendants or your teenagers' friends can't damage your subwoofers by cranking up the volume too high when you're not around.

Product highlights:

• mono subwoofer amplifier
  • 400 watts RMS x 1 at 4 ohms
  • 600 watts RMS x 1 at 2 ohms
  • 800 watts RMS x 1 at 1.33 ohms (Spike Mode)
• Class D amp technology
• variable low-pass crossover filter: 60-120 Hz, 12 dB/octave
• variable subsonic filter: 0-50 Hz, 24 dB/octave
• ParaBASS® variable bass boost: 0-10 dB at 40-80 Hz
• optional wired remote bass level controller available

More info:

• compatible with start-stop vehicle systems (up to 17V)
• Valet Mode limits output to 25% maximum
  • connection only — on/off switch not included
• gain level optimization and clip indicator LEDs
• preamp and speaker-level inputs
  • speaker-level inputs handle up to 20V (100W)
  • signal-sensing turn-on with speaker-level input
• preamp outputs
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and a 100-amp fuse recommended
• dimensions: 10.9"W x 2.11"H x 6.73"D
• warranty: 5 years
