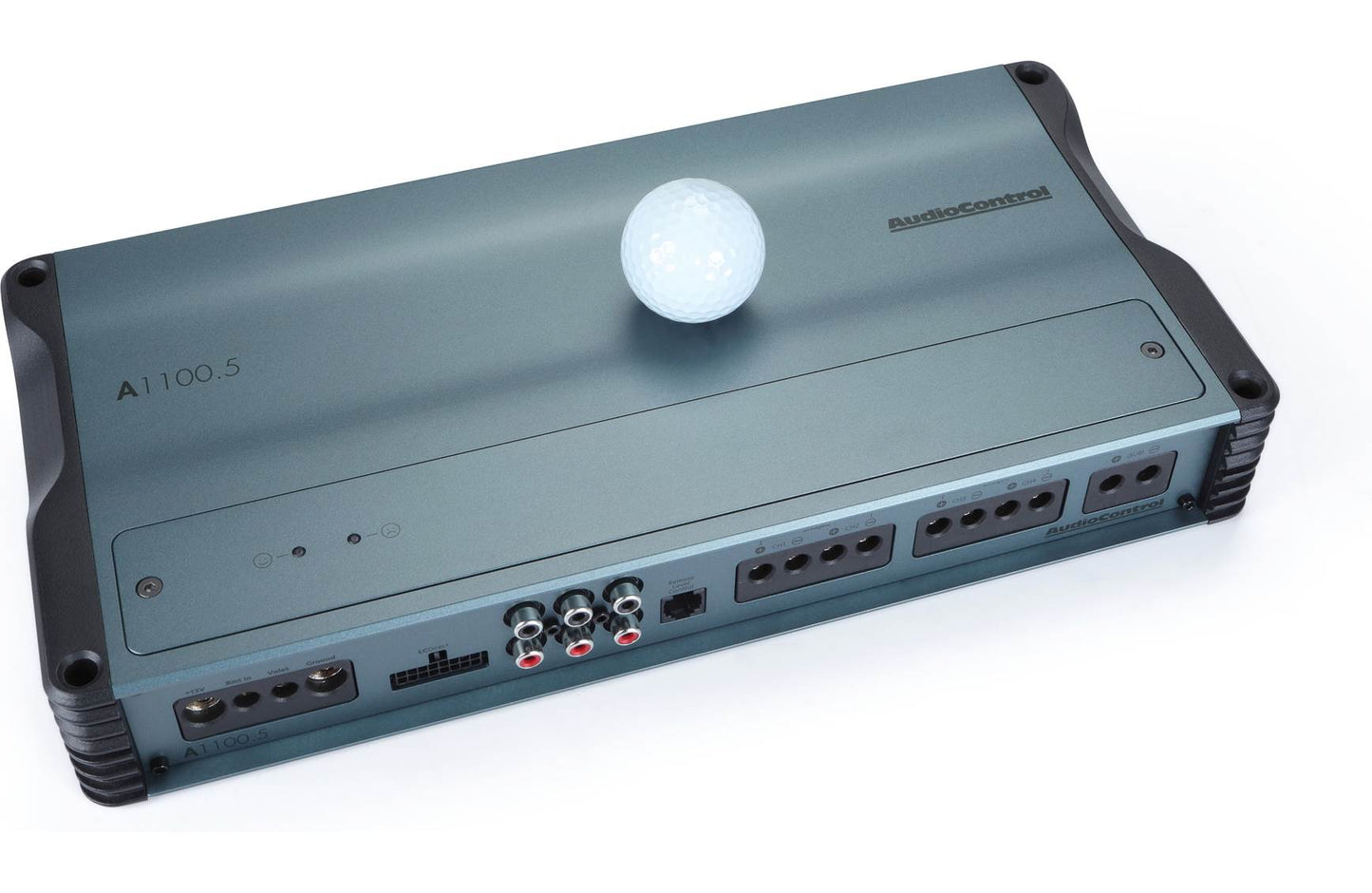

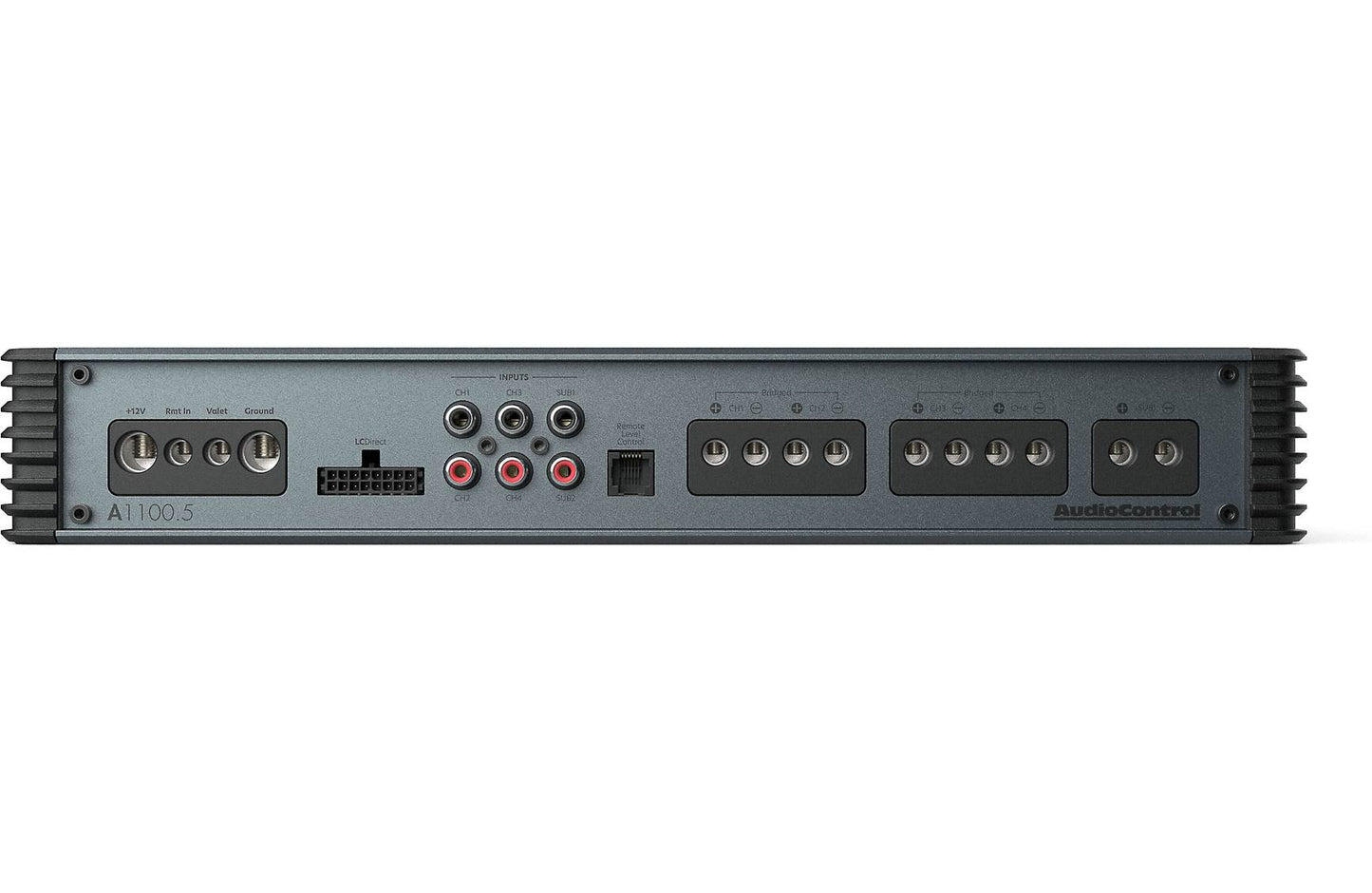

AudioControl A1100.5 Altitude Series 5-channel car amplifier (90 watts RMS x 4 at 4 ohms + 600 watts RMS x 1 at 2 ohms)

Flying high in first class

AudioControl's Altitude A1100.5 five-channel amplifier's sleek anodized aluminum chassis protects the precision high-spec electronic components inside and provides high-temperature thermal dispersion through its stylish cooling fins. AudioControl designed this Altitude amplifier to power the music system in almost any vehicle — including some vehicles with stop-start electrical systems.

Performance

The A1100.5 can power four speakers with 90 watts RMS each plus a subwoofer with up to 600 watts RMS, so you'll hear and feel the full range and all the fine details of your music clearly when you're on the go. The amp can power separate tweeters and woofers in an active 2-way front stage plus sub stereo system, thanks to the adjustable onboard crossovers' wide frequency ranges. Adjustable low-pass and subsonic crossovers plus a parametric-style bass boost help achieve perfect bass tone. An optional wired remote bass knob lets you control the sub level from your front seat.

Volume-level security

The A1100.5 has a Valet Mode feature that limits the amp's volume to 25% of its maximum when you engage it with your custom-installed switch (not included) — so parking lot attendants or your teenagers' friends can't damage your speakers or subwoofers by cranking up the volume too high when you're not around.

Product highlights:

• 5-channel car amplifier
  • 90 watts RMS x 4 + 400 watts RMS x 1 at 4 ohms
  • 125 watts RMS x 4 + 600 watts RMS x 1 at 2 ohms
  • 250 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
• Class D amp technology
• Ch 1-4:
  • variable high- and low-pass crossover filters: 50-5000 Hz, 12 dB/octave
• Subwoofer channel:
  • variable low-pass crossover filter: 60-120 Hz, 12 dB/octave
  • variable subsonic filter: 0-50 Hz, 24 dB/octave
  • ParaBASS® variable bass boost: 0-10 dB at 40-80 Hz
  • optional wired remote bass level controller available

More info:

• compatible with start-stop vehicle systems (up to 17V)
• Valet Mode limits output to 25% maximum
  • connection only — on/off switch not included
• gain level optimization and clip indicator LEDs
• preamp and speaker-level inputs
  • speaker-level inputs handle up to 20V (100W)
  • signal-sensing turn-on with speaker-level input

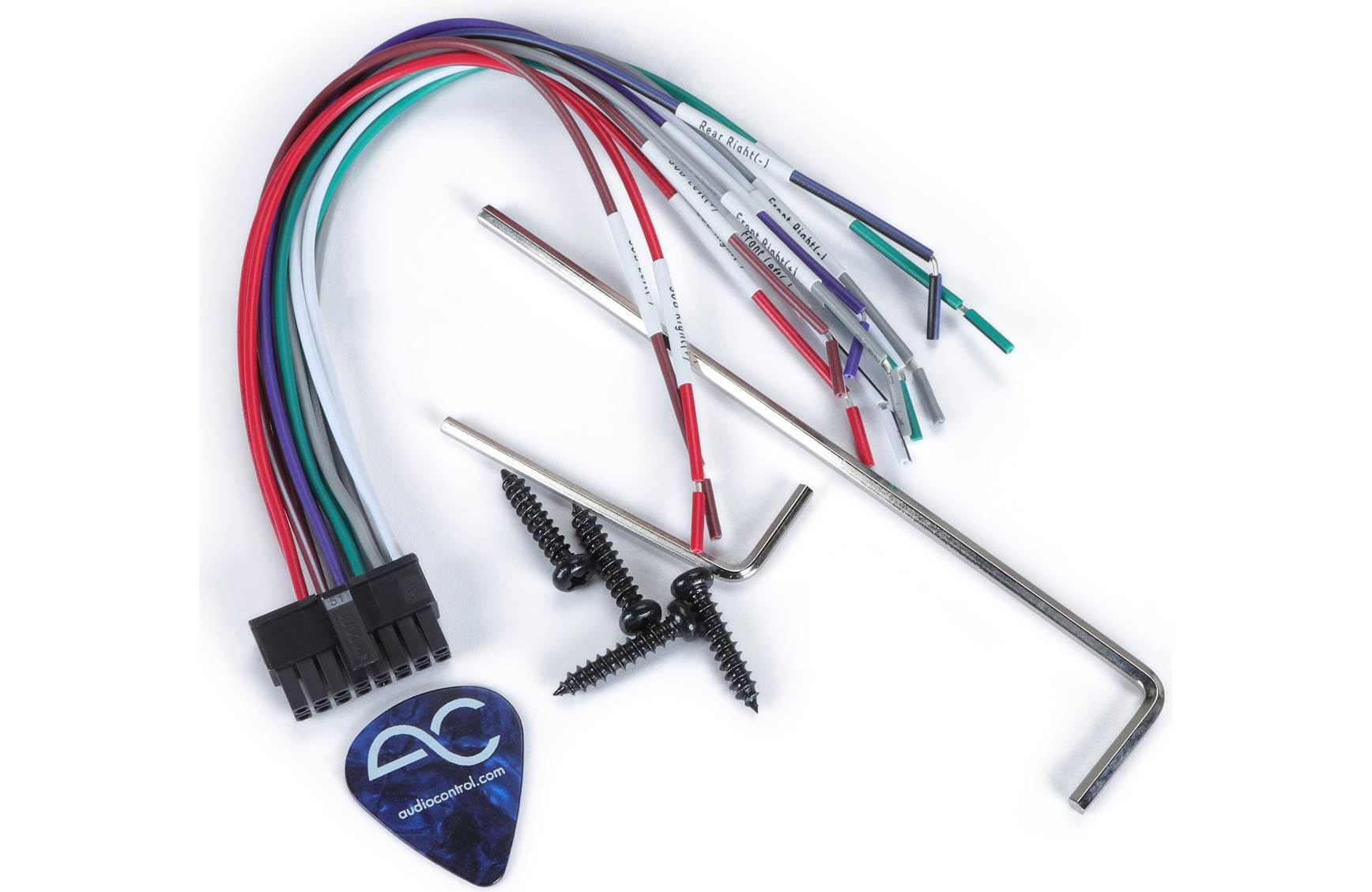

• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and a 120-amp fuse recommended
• dimensions: 13.88"W x 2.11"H x 6.73"D
• warranty: 5 years
