Alpine HDZ-W10 Status Series 10" subwoofer w/dual 4ohm voice coils (Copy)

High performance, high resolution

Alpine designed their Status Series of car audio components to deliver high-resolution sound in the automotive environment. Their HDZ subwoofers extend this level of quality by using technology developed for Alpine's premium F#1 Status Series car speakers. Now you can enjoy home system-quality sound in your home away from home.

Built to deliver

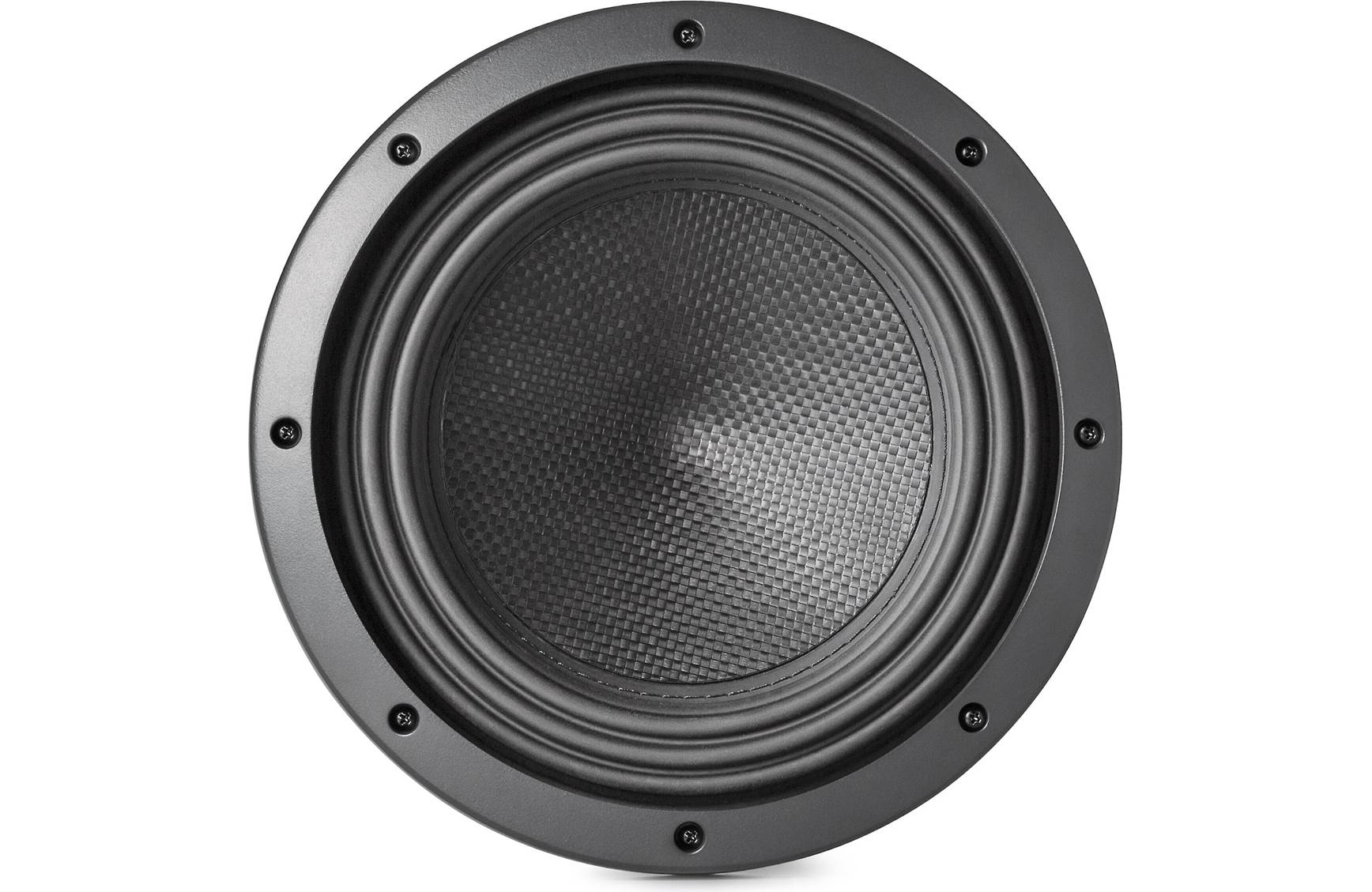

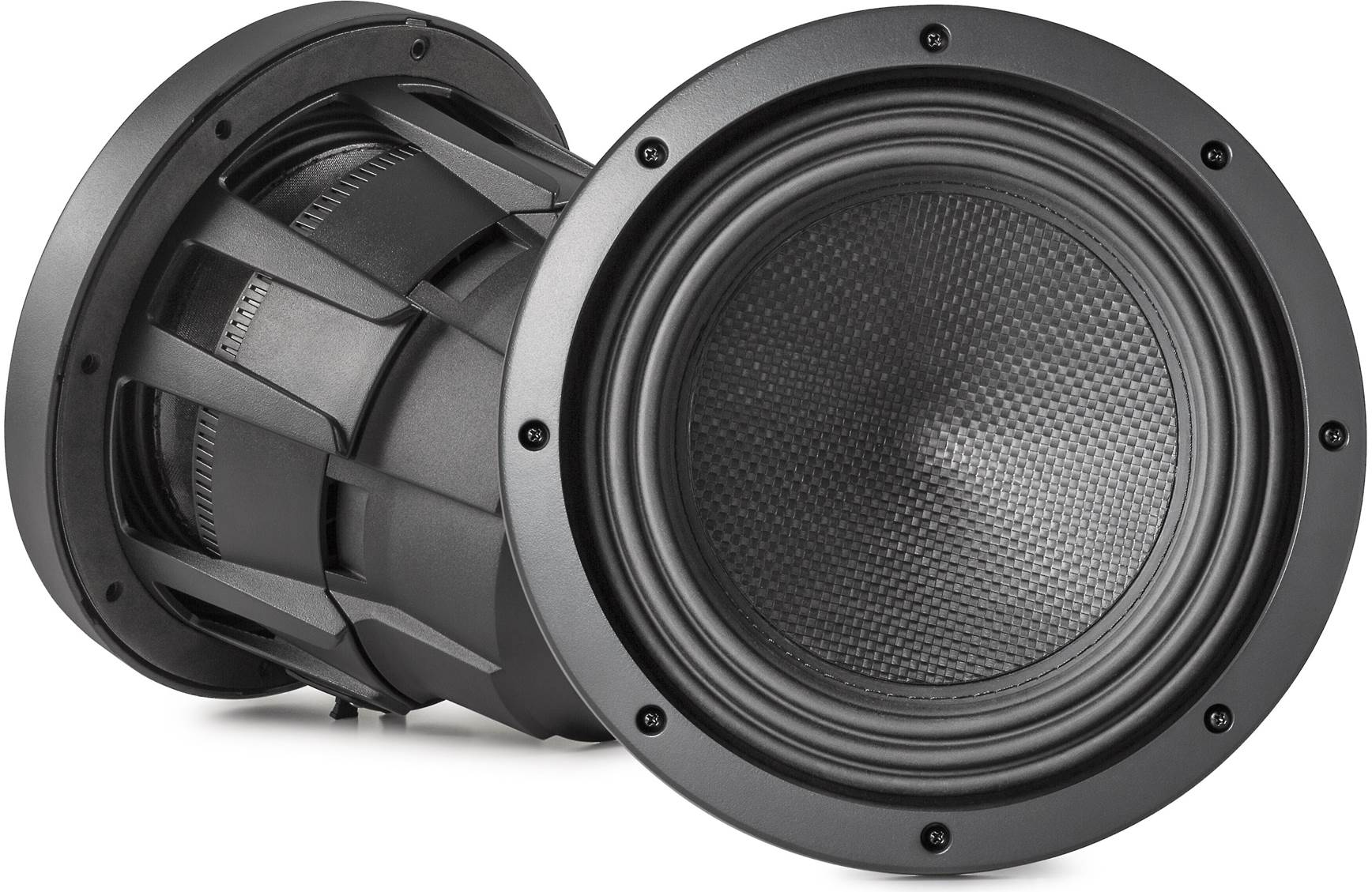

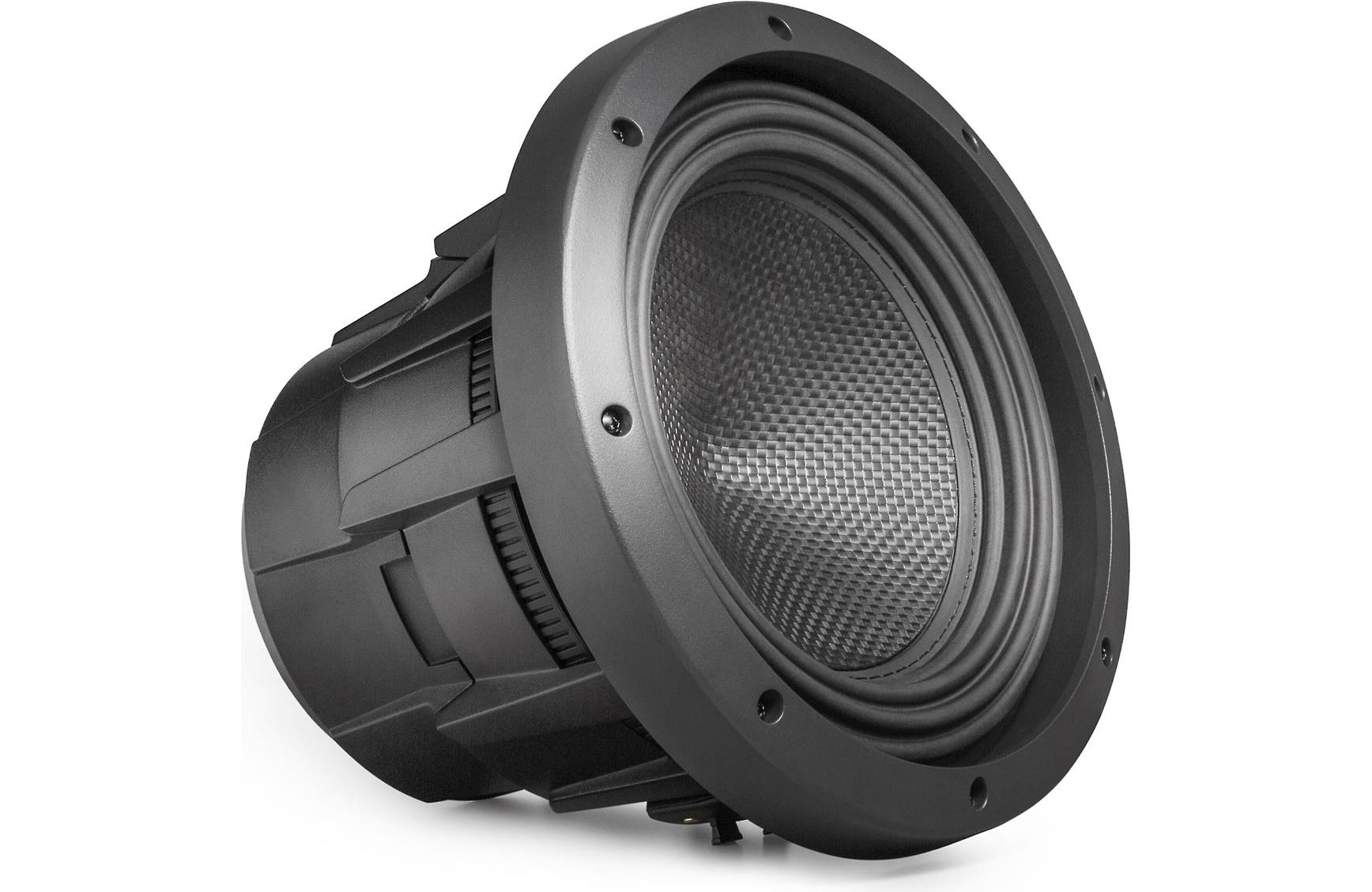

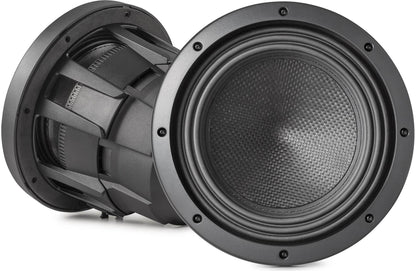

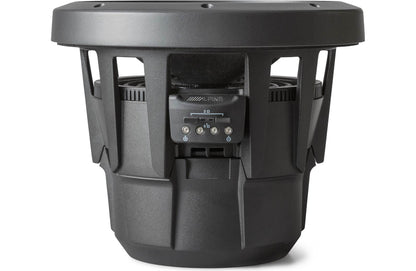

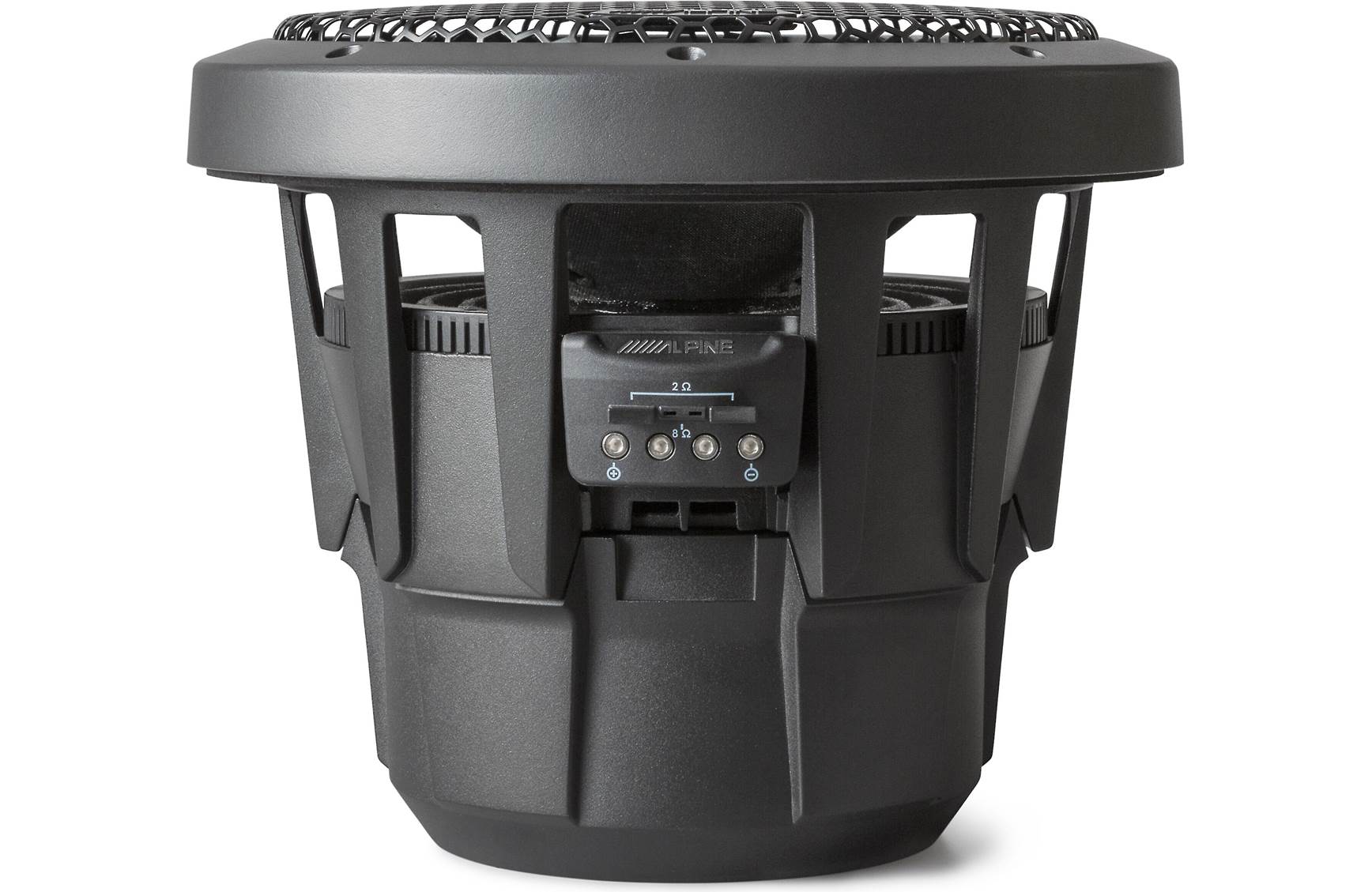

The HDZ-W10 starts with a solid cast aluminum frame that supports the cone and motor for greater clarity and minimal distortion. The pulp/mica cone combines accuracy and warmth, and the proprietary High-Amplitude Multi-Roll (HAMR) surround and dual progressive spiders deliver the precise low end needed for hi-res sound. A carbon-fibre dust cap protects the 2-1/2" voice coil, and the included mesh grille and aluminum trim ring complete the package, offering both protection and good looks.

Power and flexibility

This HDZ-W10 subwoofer is designed to handle a whopping 800 watts of RMS power handling (2400 watts peak) so you'll get all the bass you're looking for and more. Its dual 4-ohm voice coils give you plenty of system configuration options, so you can build a Status Series system that's right for you. Whether as part of a full Status Series system or as an addition to your current system, you'll get supreme accuracy and full, solid high-fidelity performance.

Product highlights:

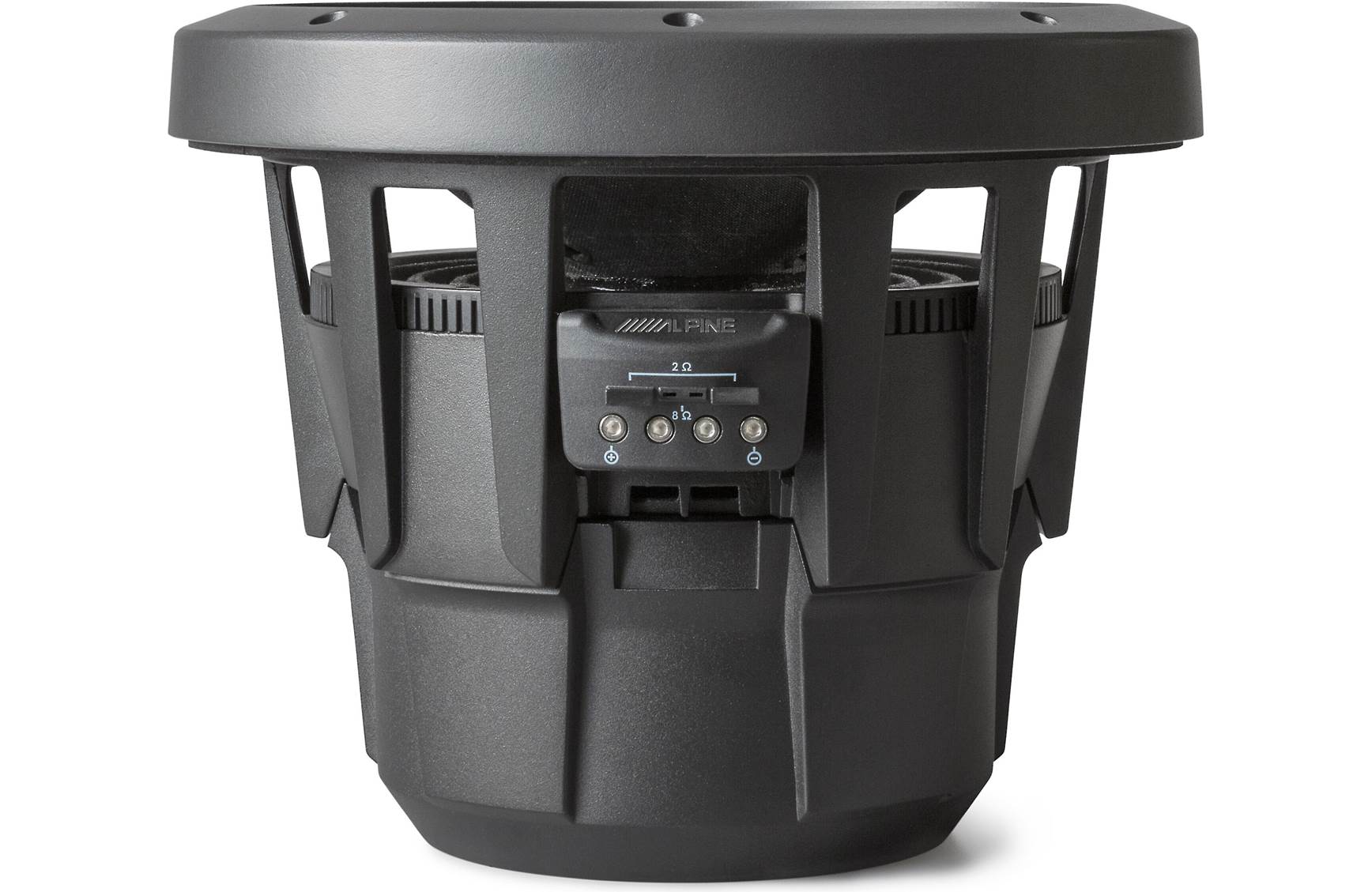

• 10" Status Series subwoofer with dual 4-ohm voice coils
• pulp/mica cone with carbon-fiber dust cap
• High-Amplitude Multi-Roll (HAMR) rubber surround
• cast aluminum frame
• frequency response: 26-200 Hz
• power handling: 800 watts RMS (400 watts per coil)
• peak power handling: 2400 watts
• sensitivity: 82.2 dB
• top-mount depth: 7.42"
• cutout diameter: 9"
• sealed box volume: 0.622-1.622 cu. ft.
• ported box volume: 1.1-1.872 cu. ft.

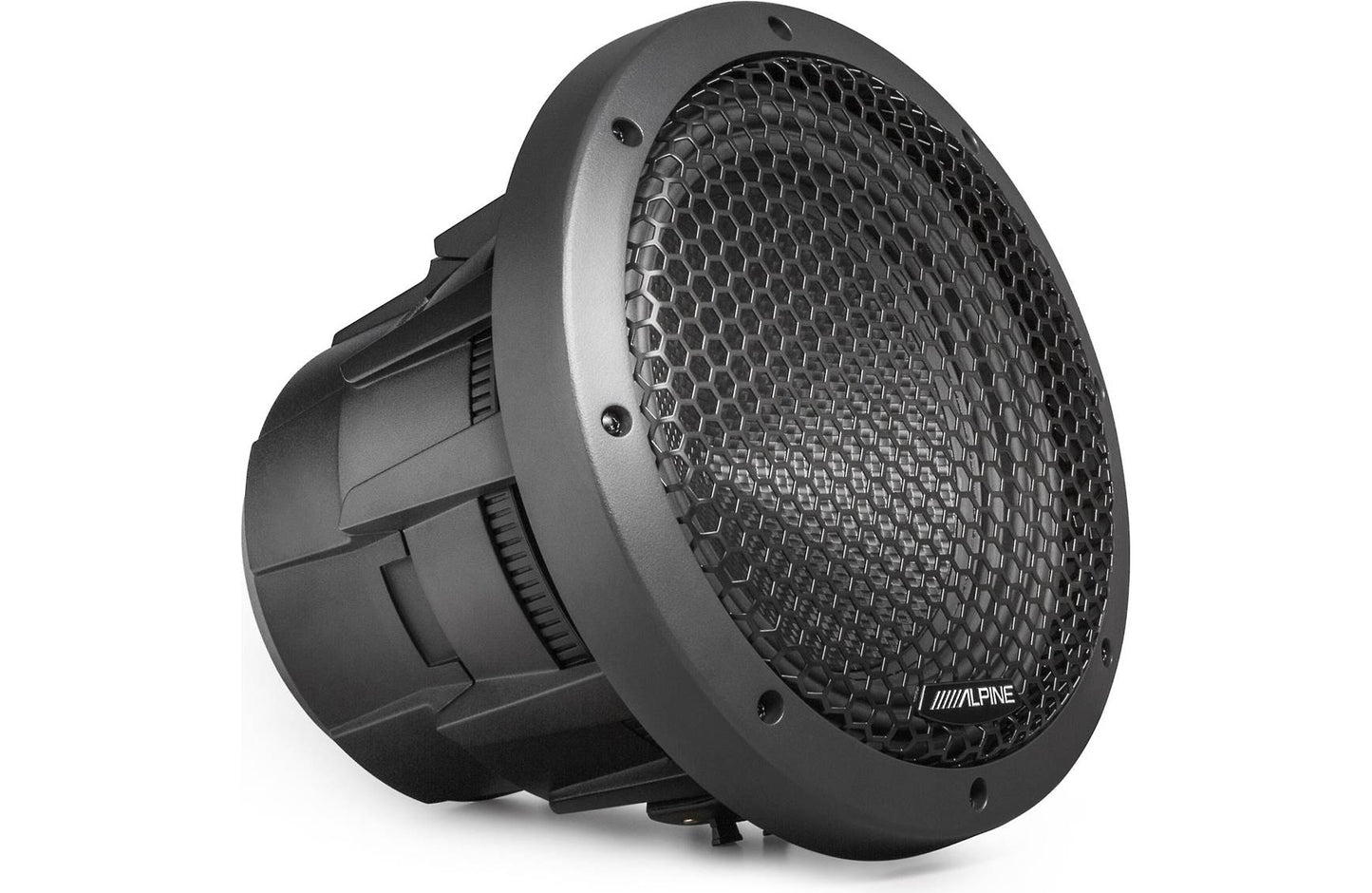

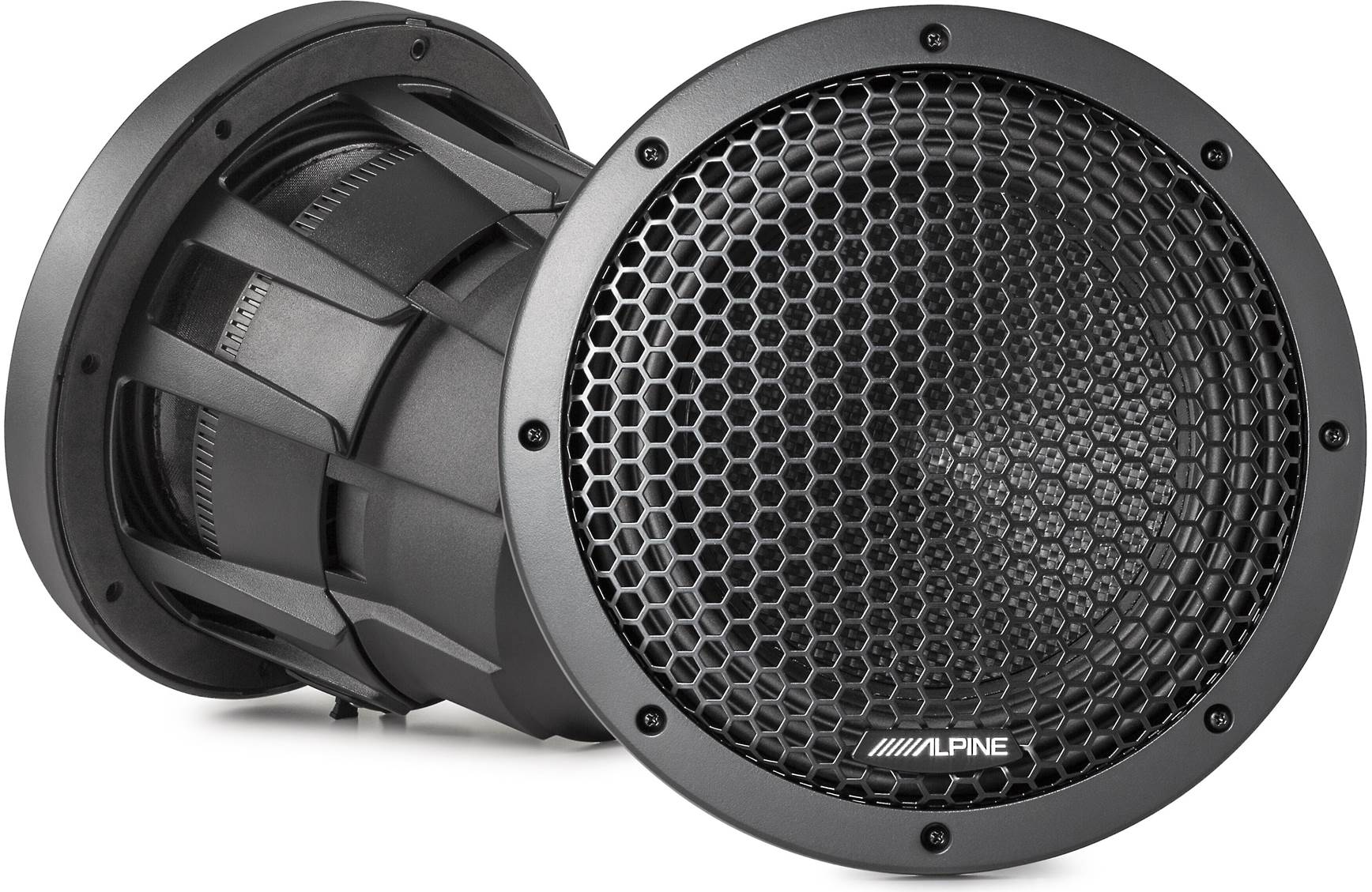

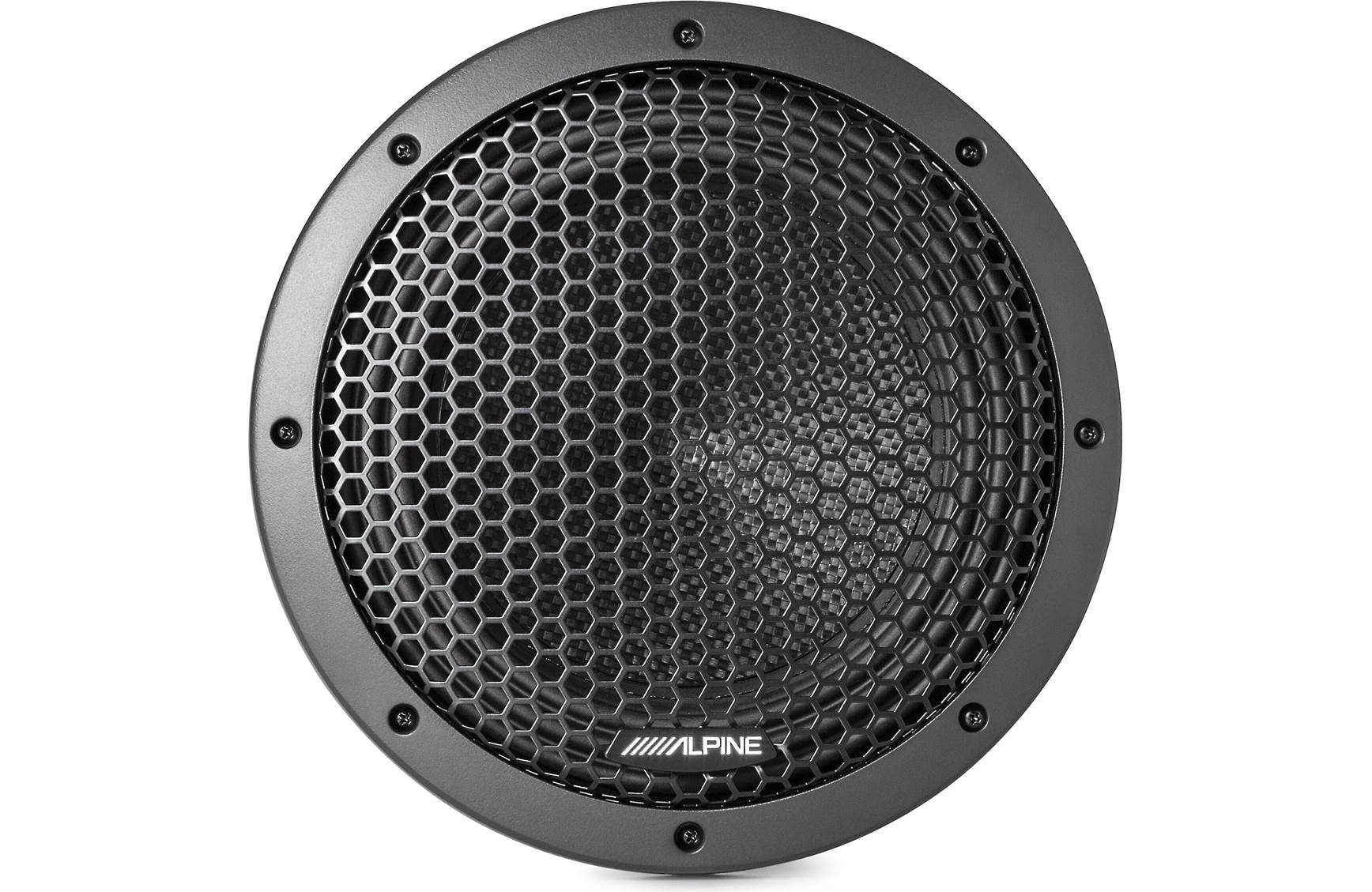

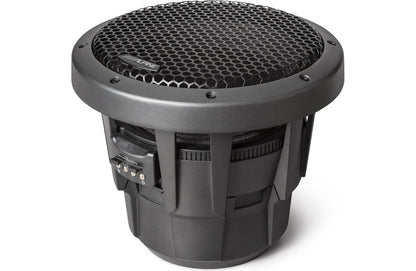

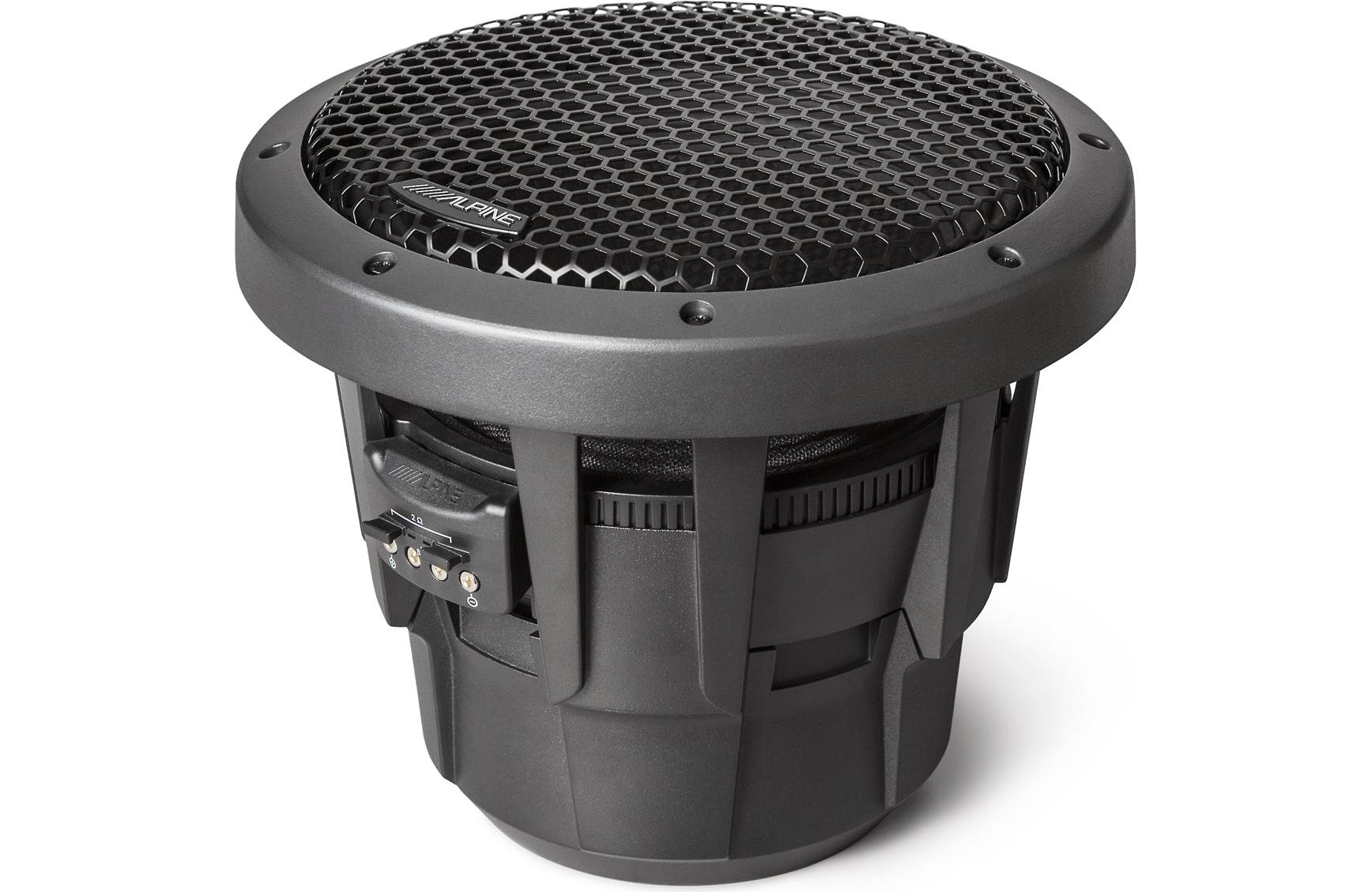

• mesh grille and aluminum trim ring included
• warranty: 1 year
