JL Audio CF-690-RTG Custom-Fit 6"x9" 2-way component speaker system (fits select Ram, Toyota, Chevy, and GM Trucks)

Drop-in fit for Ram, Toyota, and GM

The JL Audio CF-690-RTG component speakers are designed to drop right into the factory speaker locations on popular rides like Ram trucks, Toyota models, and GM vehicles. Each set includes 6x9 woofers, 2.75-inch midtweeters, and hardware for clean installs with no mods necessary. Inline high-pass and low-pass filters simplify factory integration, but they can be bypassed if you're running an active setup.

A thoughtful collection of speaker rings and adapters helps create a clean fit.

Expansive frequency range

Rated for 50–150 watts RMS per channel, these handle real amplifier power and keep control at volume. With a frequency range of 36 Hz to 19 kHz, 4-ohm impedance, and 86 dB sensitivity, they're tuned for solid low end with clean highs. Mounting depth checks in at 2.85" for the 6x9s and 1.45" for the midtweeters, so check your clearances if you're working outside the listed vehicle fits.

Key Features:

ENGINEERED FOR PERFORMANCE
For efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination. The speakers can be used as individual drivers for flexible system design in active systems.

DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity,low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.

ADVANCED FRAME DESIGN
Benefiting from years of design experience, all of the CF midtweeters feature glass-filled, hightemperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.

MADE TO FIT
CF component drivers are available in a 6x9" woofer or a 2.75" midtweeter to provide easy, direct installation in a variety of existing OEM interior configurations.

POWERFULLY ADAPTABLE
When powered by an amplifier, CF speaker systems deliver superb sound in a wide range of car audio applications.

Product highlights:

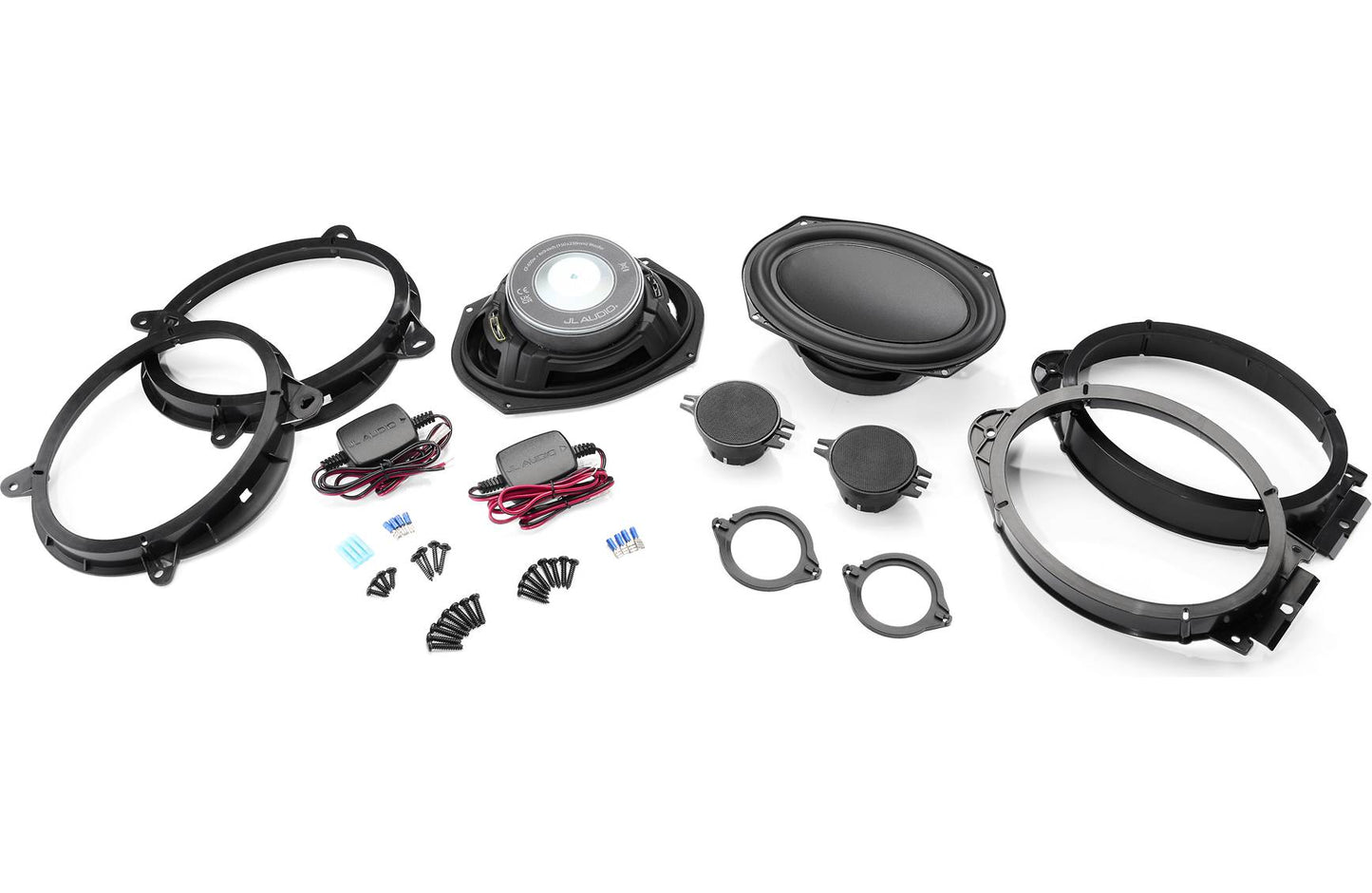

• component speaker system includes two 6"x9" woofers, two 2-3/4" midtweeters, and two in-line crossovers
• 6"x9" vacuum-formed, mineral-filled polypropylene woofer cone with rubber surround
• optional 2-way in-line crossovers included, with 4-step level adjustment for mid- and high-frequency response
• high-temperature glass-filled polymer frame with insert-molded terminals
• handles 50-150 watts RMS
• frequency response: 36-20,000 Hz
• sensitivity: 86 dB
• woofer top-mount depth: 2.85"
• includes four OEM woofer adapter rings, two OEM mid-tweeter adapter rings, and two woofer foam gaskets
• includes fine mesh grilles for 2-3/4" mid-tweeters. 6"x9"s retain factory panel grilles.
• warranty: 2 years
