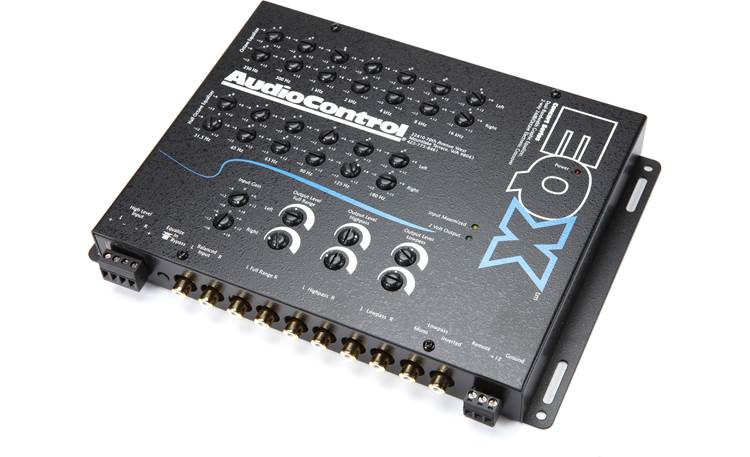

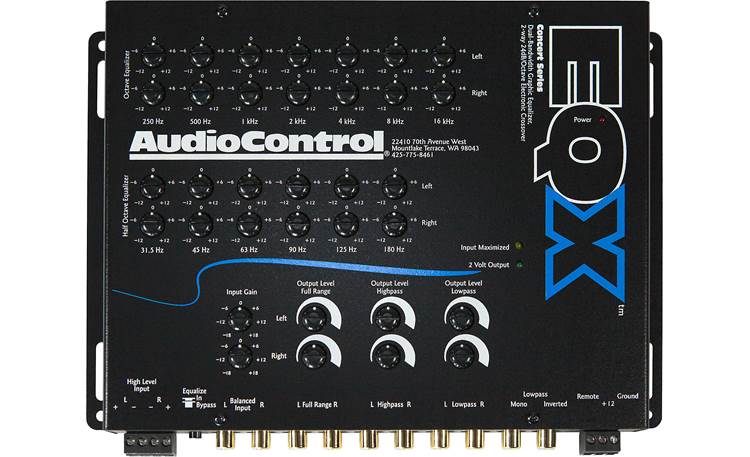

AudioControl EQX Stereo 13-band graphic equalizer with 2-way crossover

Product highlights:

• stereo 13-band graphic equalizer with 2-way crossover
• 6 EQ bands 1/2-octave wide (bass)
  • center frequencies: 31.5, 45, 63, 90, 125, 180 Hz
• 7 EQ bands 1-octave wide (mids and highs)
  • center frequencies: 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
• Linkwitz-Riley 2-way crossover (90 Hz, 24 dB/octave)
• 33 Hz subsonic filter
• main and subsonic crossover points can be adjusted via optional AudioControl modules or custom modification
• input gain and output level controls and LEDs help with system integration

Other Features and Specs:

• preamp inputs and outputs
• speaker-level inputs
• balanced inputs eliminate noise
• frequency response: 10 to 20,000 Hz
• signal-to-noise ratio: 110 dB
• maximum output level: 9.5 volts RMS
• fuse rating: 2A
• dimensions: 9-7/8"W x 1-3/8"H x 8-1/8"D
• warranty: 5 years
