Alpine BRV-S65C BassRev™ 6-1/2" component speaker system

High-res audio certified

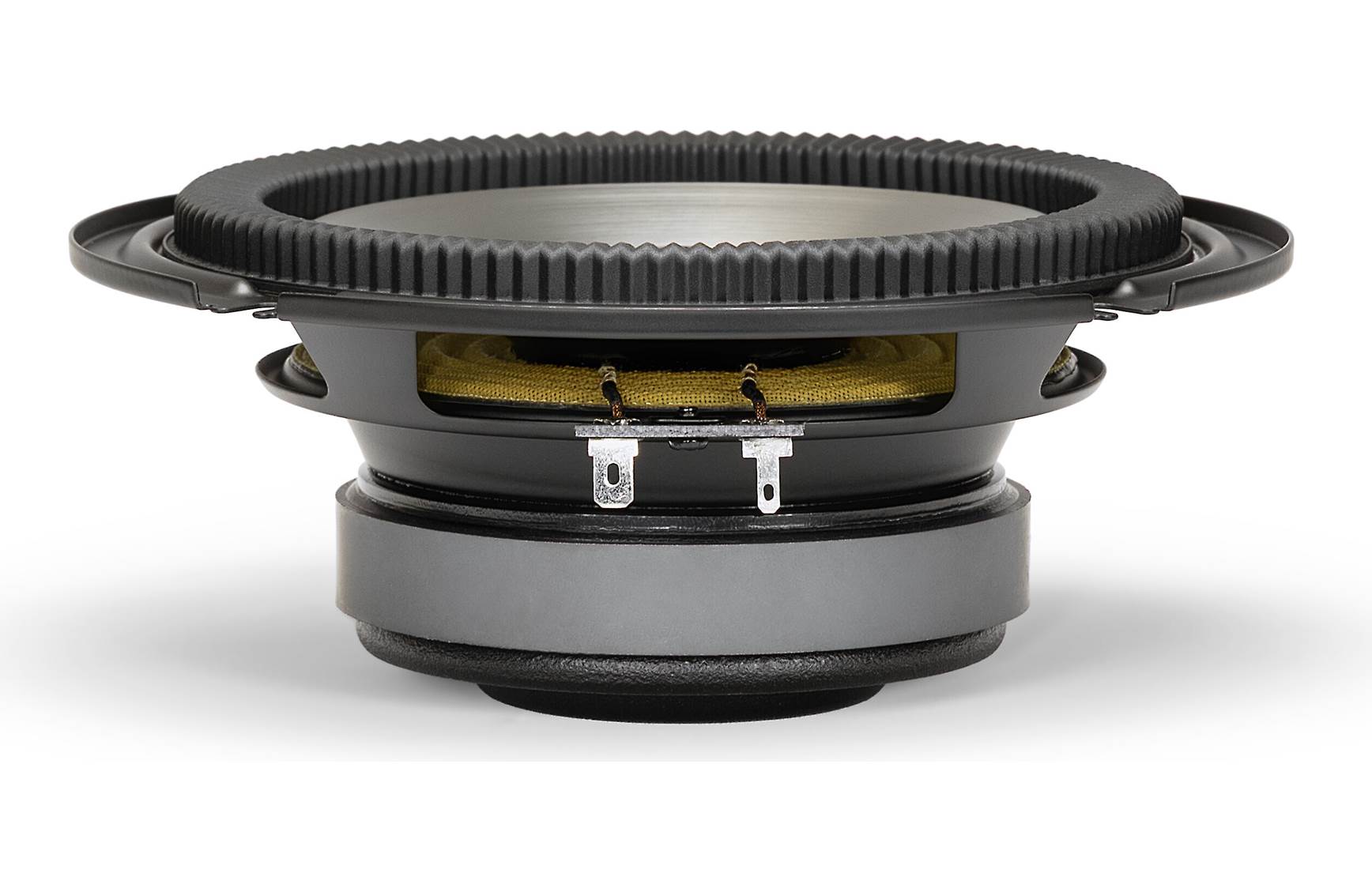

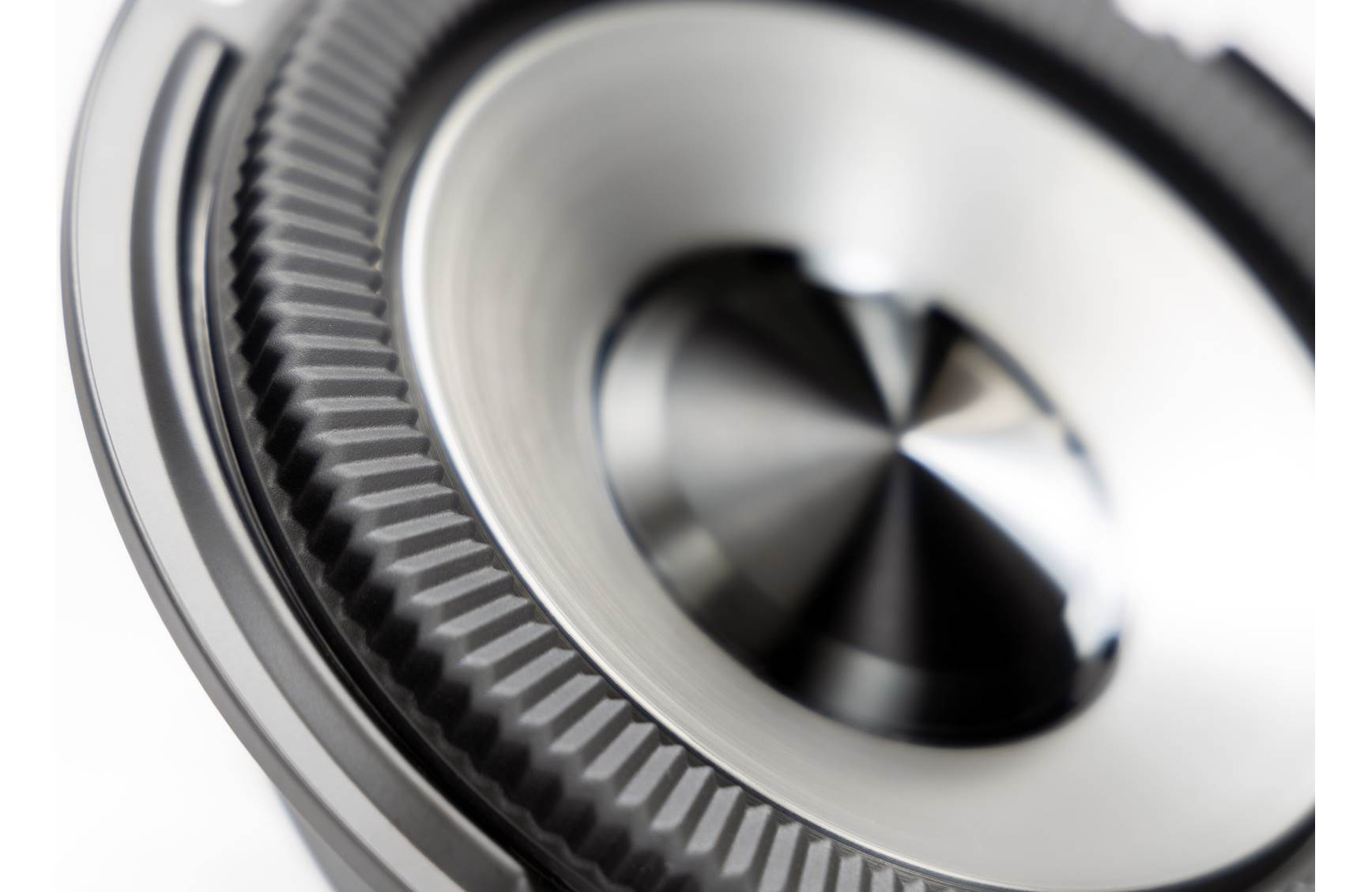

The Alpine BRV-S65C 6-1/2" component speakers are an excellent way to add life to your sound. In fact, they're Hi-Res Audio Certified by the Japan Audio Society (JAS). These component speakers include a pair of mid-bass woofers and a pair of 3/4" tweeters that Alpine has designed and tested to maximize the Optim DSP output from select Alpine amplifiers. The 6-1/2" mid-bass driver has a HEDGE (High Excursion Designe Gathered Edge) surround, a new design from Alpine for a multi-roll surround with a corrugated design, so the stress is spread across the ribs you see in the image below, acting like an expansion joint that lets the cone travel without stretching the surround too much. This design is usually found on high-excursion subwoofers, where a speaker needs long travel and great control.

Installation note: You may need a pair of our universal backstraps to install the tweeters in factory dash openings.

Note: Tweeter grilles included. Speaker grilles not included; intended to retain factory grilles.

Product highlights:

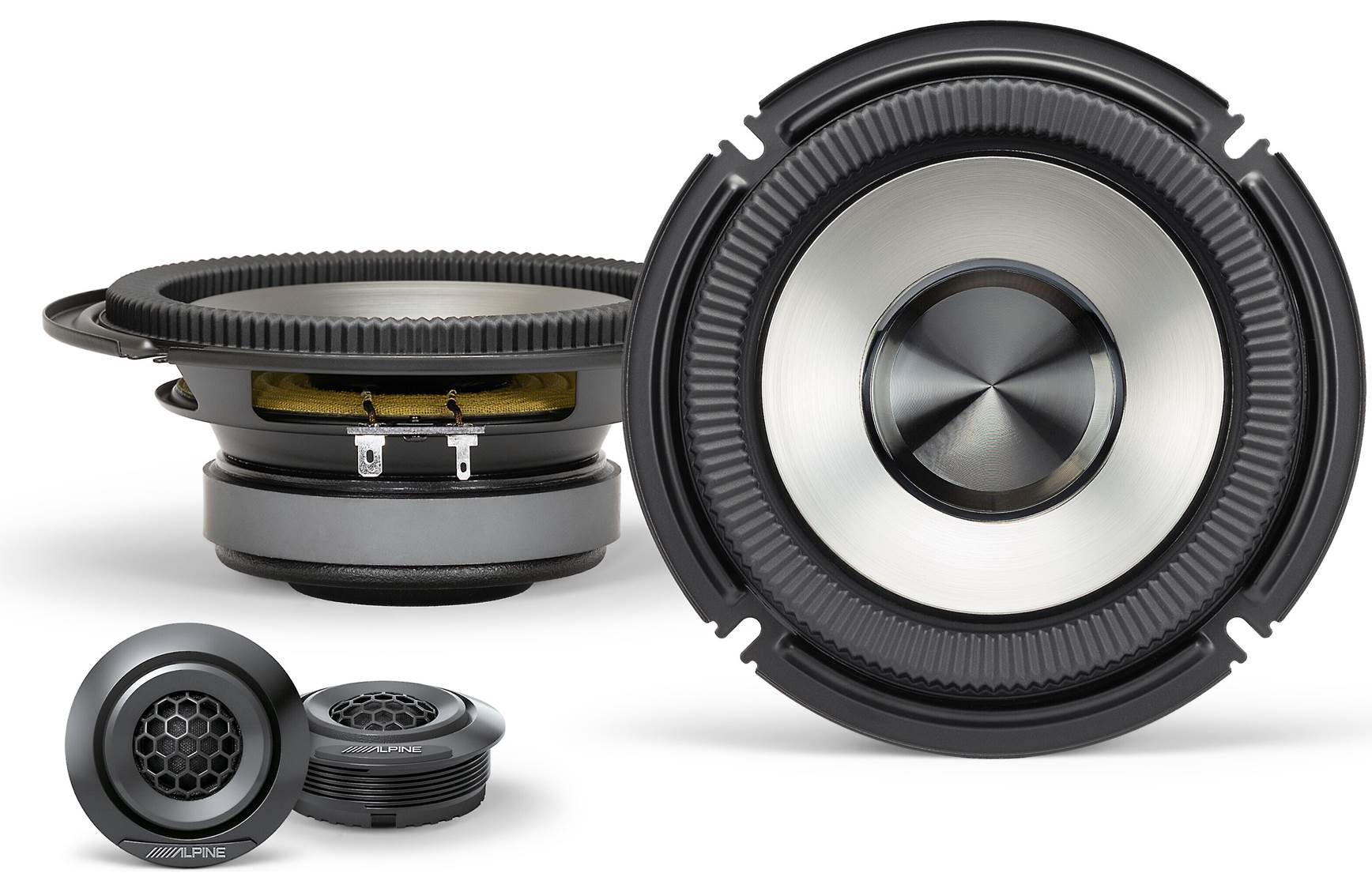

• 2-way component speaker system with two mid-bass speakers, two tweeters, and two in-line crossovers

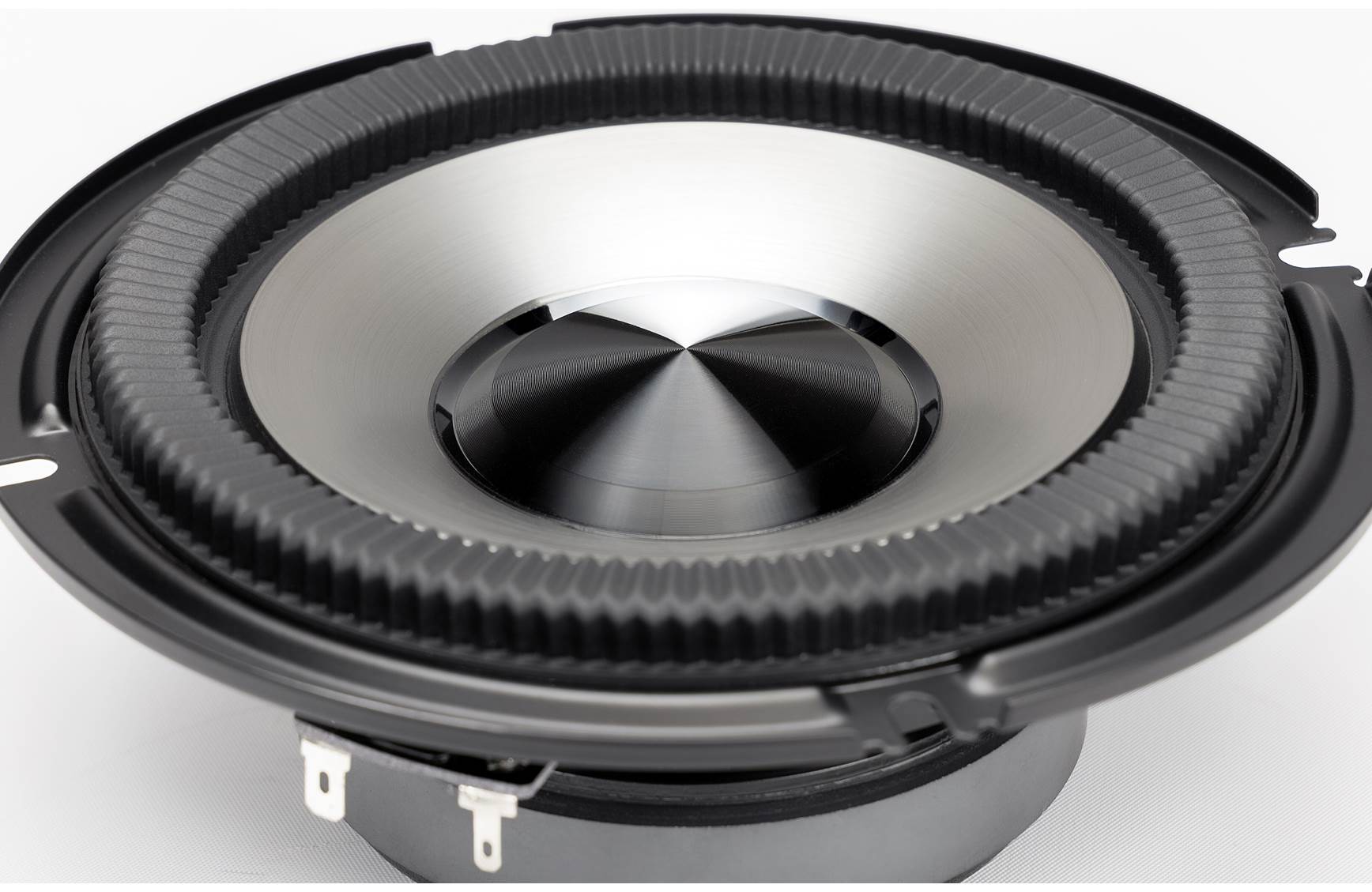

• 6-1/2" polypropylene and mica woofer cone with High Excursion Design Gathered Edge (HEDGE) surround
• Hi-Res Audio Certified
• OPTIM™ Sync for pre-EQ selection with select Alpine OPTIM amps
• 3/4" tweeters
• gunmetal finish
• handles up to 50 watts RMS (150 watts peak power)
• frequency range: 60-20,000 Hz (without BassRev), 38-20,000 Hz (with BassRev)
• sensitivity: 84 dB
• impedance: 4 ohms
• mounting depth: 2.375"
• warranty: 1 year
